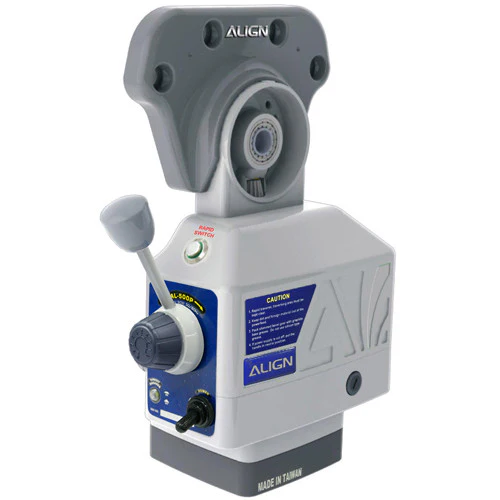

The AL500PX Power Feeder is designed for use with 2V, 3V, and 5V milling machines, providing reliable and efficient table feed. Known for its high-quality design and robust construction, this power feeder features a strengthened "ZYLTEL GEAR" for durability and long life span. It operates with a stable, low noise level, ensuring a safe and efficient work environment.

Features:

• Compatible with 2V, 3V, and 5V milling machines for table feed
• High-quality design and construction materials
• Strengthened "ZYLTEL GEAR" for enhanced durability
• Stable, low-noise operation for safety and efficiency
• Long life span design

Specifications:

• Maximum RPM: 0 - 160
• Maximum PPM: 160
• Bevel Drive Gear Rate: 1.8:1
• Maximum Torque: 780 in lb (900 Kgf/cm)
• Rated Voltage: 110 V 50/60 Hz
• Rated Current: 1 Amp
• Speed Range: 0 - 160V 50/60Hz
• Net Weight: 6 kgs
• Gross Weight: 6.5 kgs
