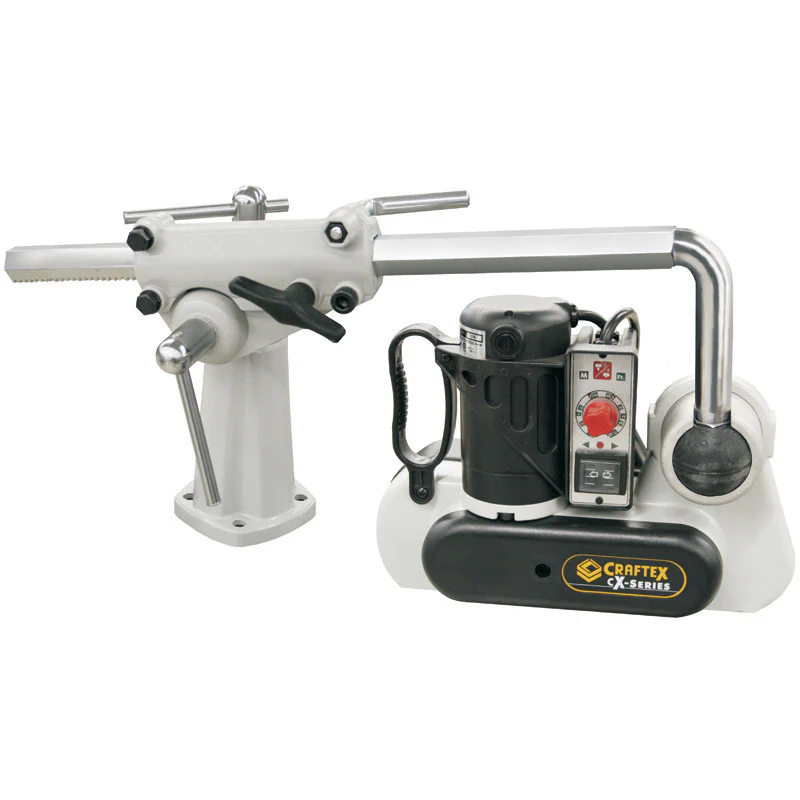

CXP01

1/8-HP Variable Speed Power Feeder – Craftex CX-Series

Increase your shop production with this Variable Speed Power Feeder.

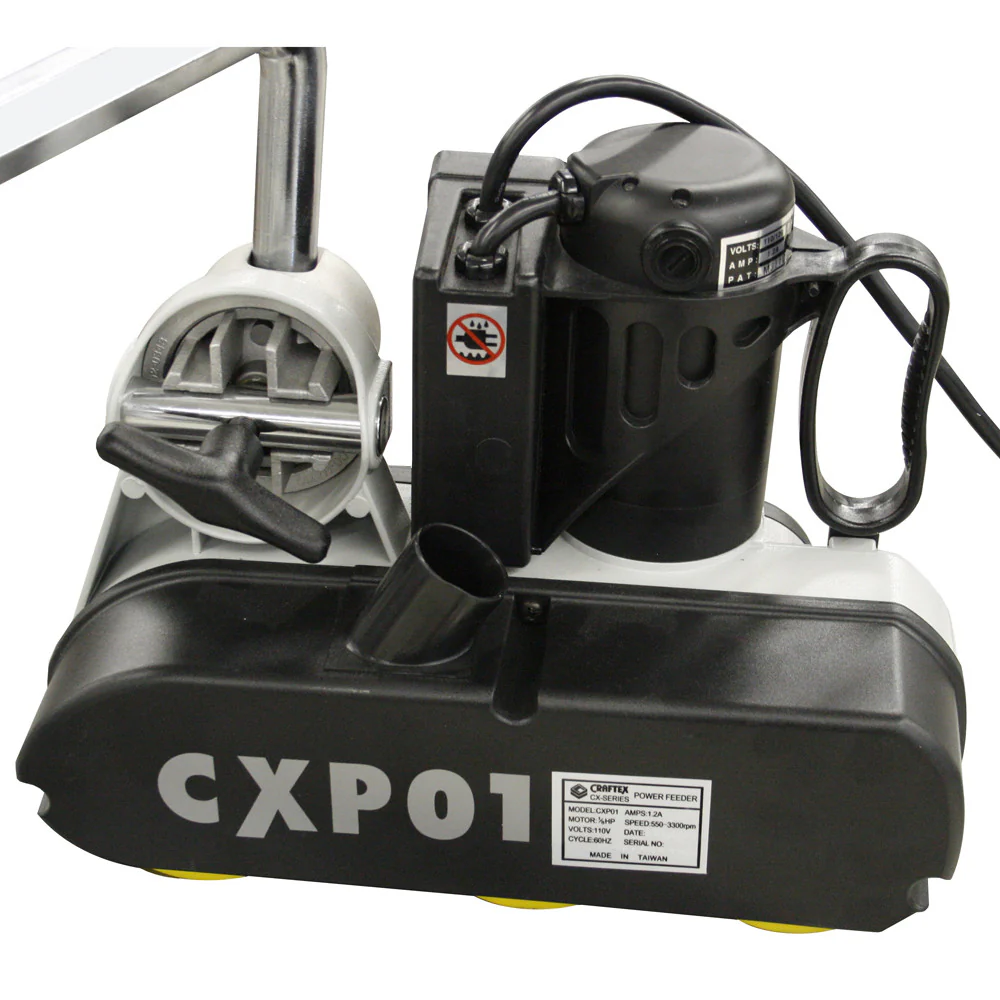

The CXP01 is designed with a 1/8-HP, 110-Volt motor providing a feed rate of 6-1/2 to 39 feet per minute for maximum versatility. The power feeder features a speed regulator knob used for variable smooth feeding and a feed direction control switch to allow changing feed direction from Forward - Reverse or the opposite way.

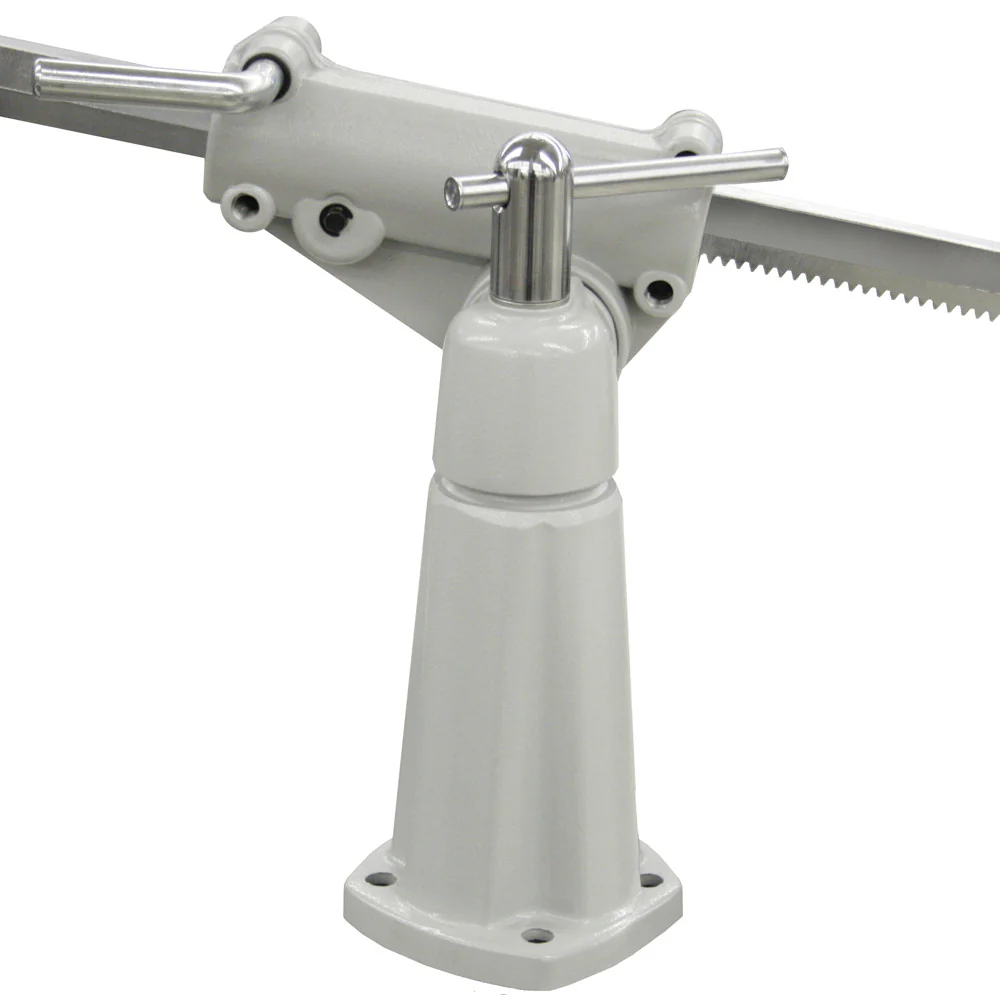

The base features four pre-drilled holes used to mount the power feeder on the machine table surface and the steel over-arm with the cast aluminum ball joint housing allows the power feeder moving horizontally and swing up to 360-degrees.

This CX Series Power Feeder is made in an ISO 9001 factory and features a 3 Year Warranty.

FEATURES:

Variable Speed
Forward and Reverse Feed Directions
Gear Box Power Transfer
Steel Over-Arm Construction
Cast Aluminum Housing Construction
3 Years Warranty

SPECIFICATIONS:

Motor: 1/8-HP, 110-Volts, Single Phase, 60-Hz, 550-3300 RPM
Feed Speeds: 6-1/2 - 39 FPM
Number of Speeds: Variable
Swing: 360-Degree
Vertical Movement: 10-1/4”
Horizontal Movement: 10-1/4”

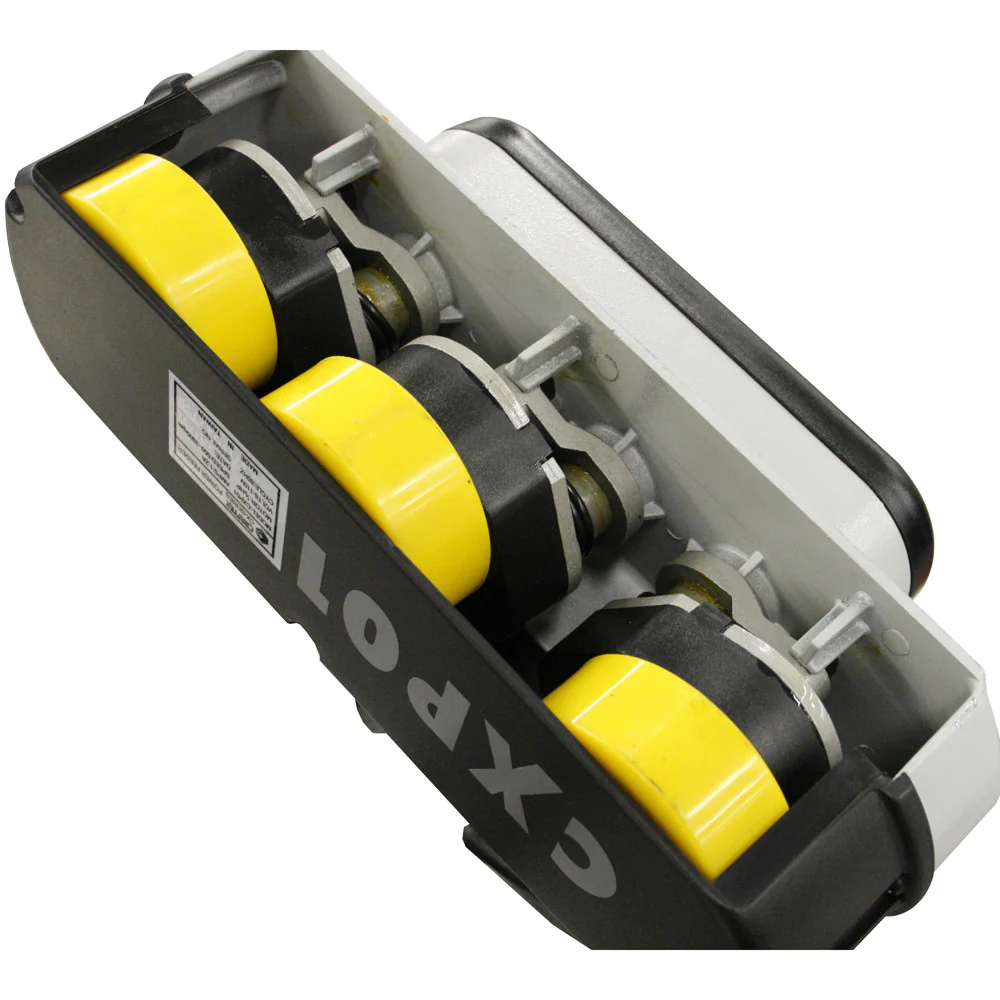

Number of Rollers: Three
Roller Width: 2”
Roller Diameter: 4”
Roller Construction: Synthetic Rubber
Length/Width/Height: 31” x 11” x 12”
Weight: 22 lbs
