5" SWIVEL METAL BANDSAW
CX116
5" Metal Band Saw with Swivel Head - Craftex CX-Series

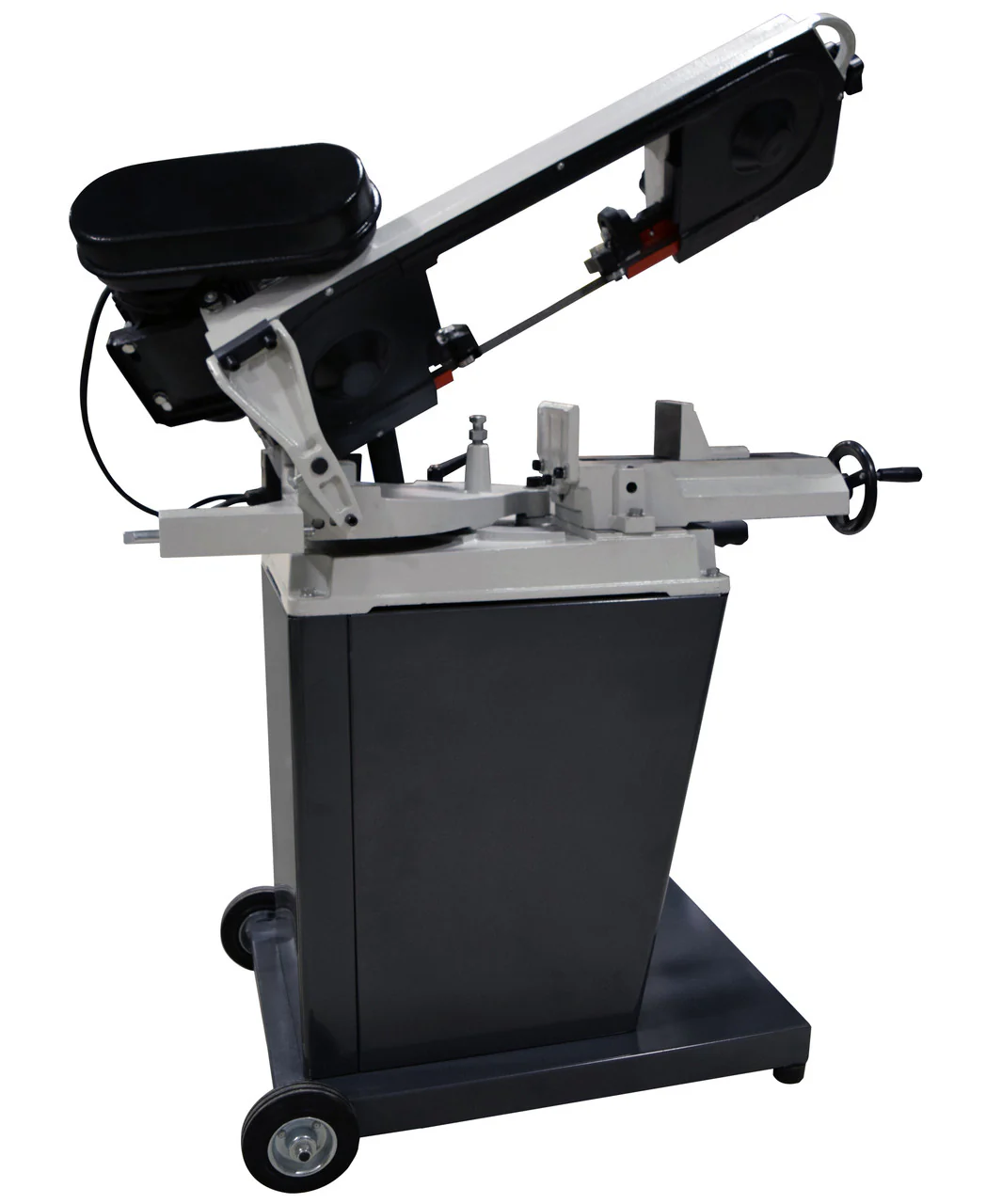

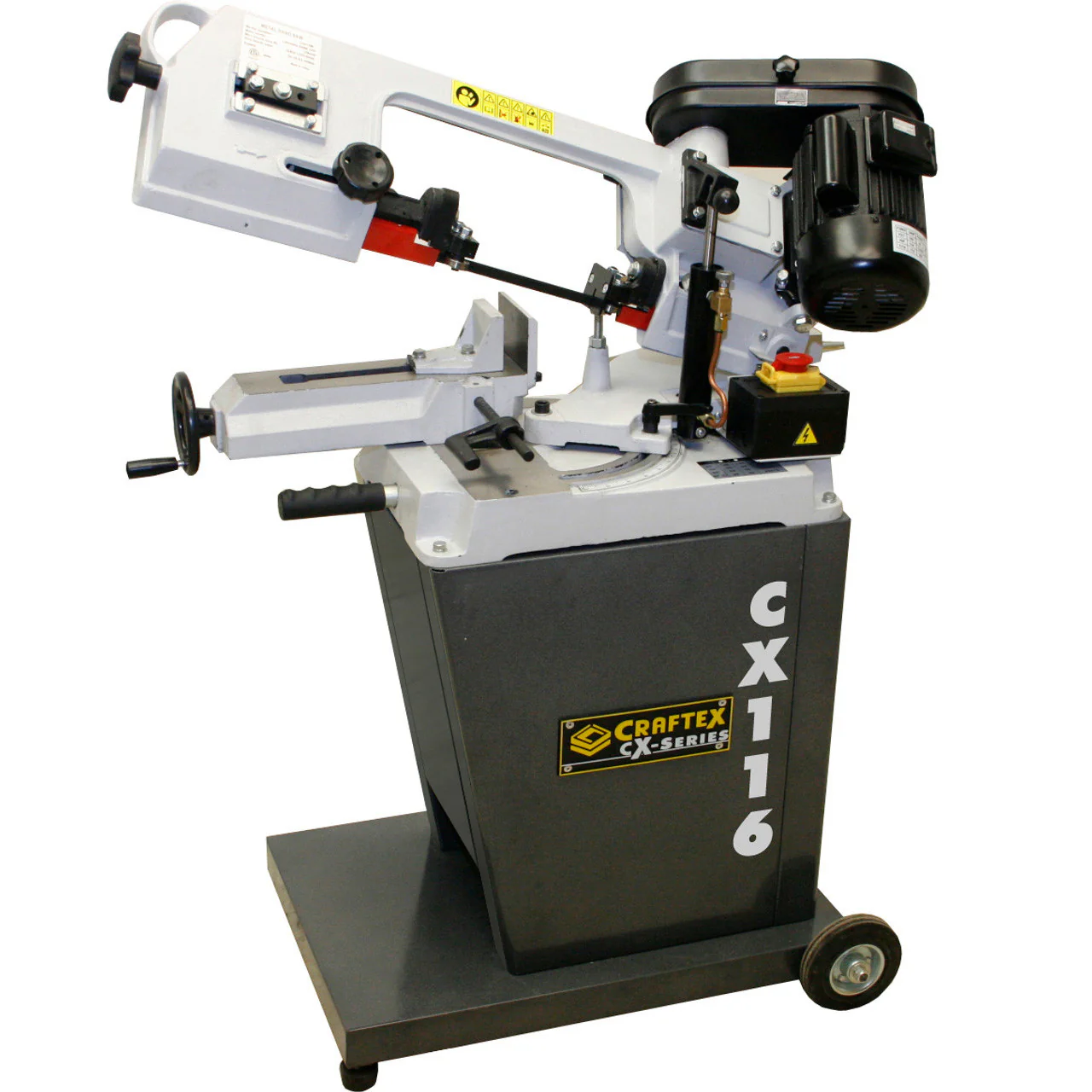

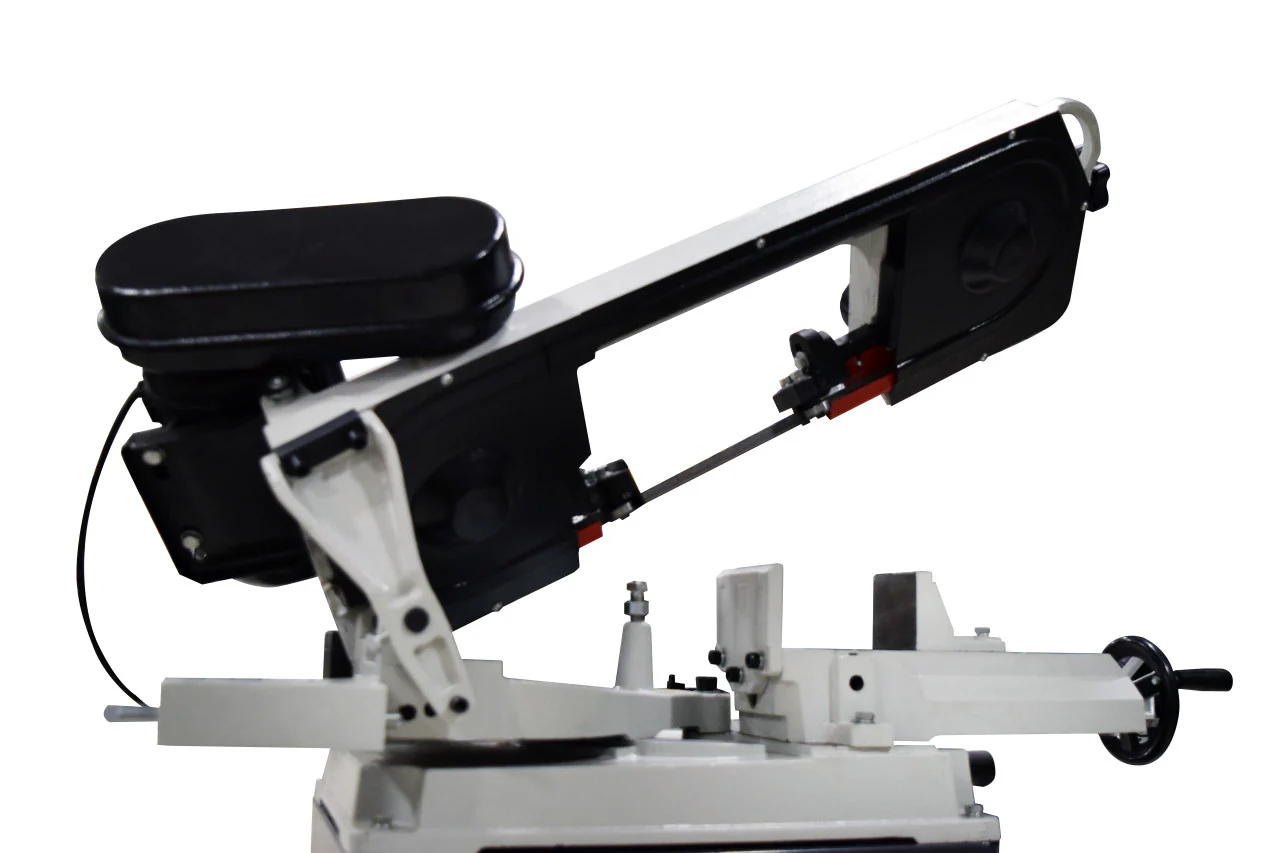

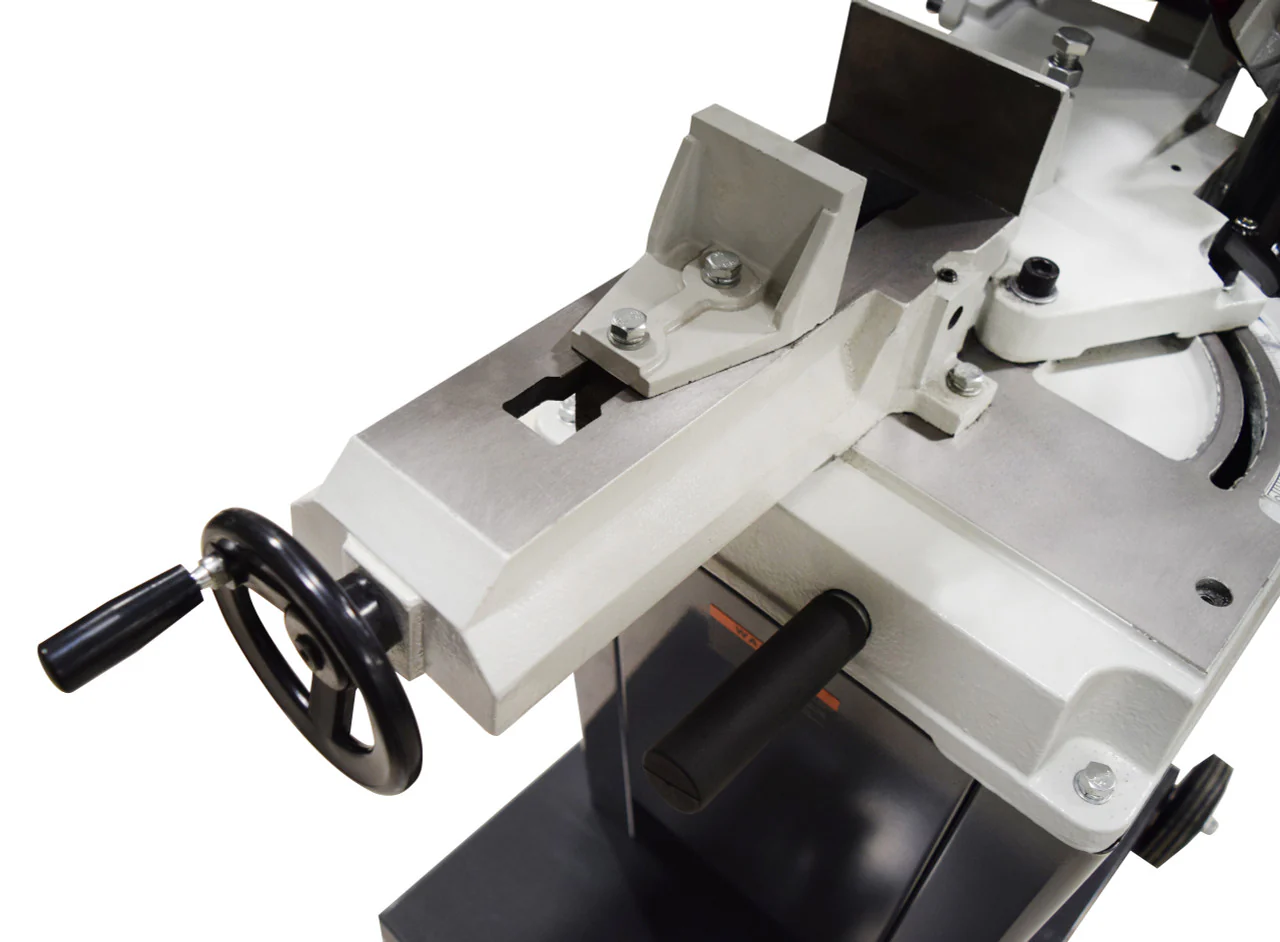

The CX116 swivel head metal band saw has the features and specs to make this a mainstay in any small to medium sized shop. It is equipped with a rigid vise to hold the work-piece firmly and the hydraulic down feed control ensures smooth operation and sweet cutting result. The band saw features 2 heavy duty wheels on the base which makes it very easy to move the band saw from one position to another. Other features are adjustable blade guides, work stop, large adjustment knobs and heavy duty cast iron base.
Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a 3 year warranty.
SPECIFICATIONS
Motor: 3/4 HP, 120 V, Single Phase, 60 Hz
Amps: 7.8 Amps
Speed: 1700 R/min
Blade Speeds: 24 / 35 / 61 m/min
Blade Length: 64-1/2"

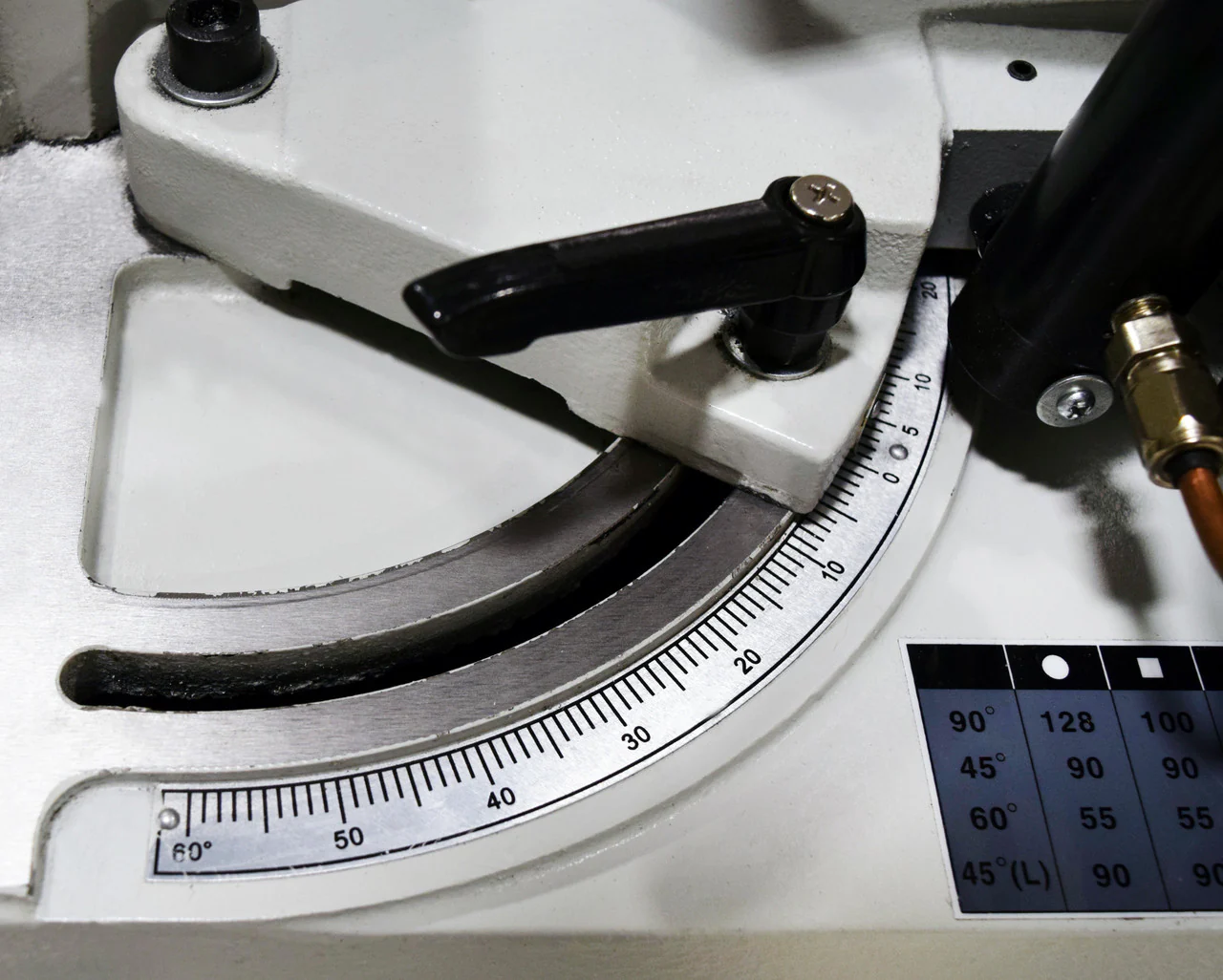

Head Swivel: 45° - 60°
Angle Cuts: 45° - 60°
Vise Jaw Depth: 6-1/4"
Vise Jaw Height: 2-1/2"
Max. Capacity @ 90°: 5"
Max. Capacity @ 45°: 3-3/4"
Max. Capacity @ 60°: 2"
Hydraulic Down Feed with Auto Shut Off: Yes
2 Wheels and a Carrying Handle for Mobility: Yes
Comes in two boxes
1st Box: 26" Length x 18" Width x 8" Height
2nd Box: 37.5" Length x 17.5" Width x 21.5" Height
Approximate Weight: 174 lbs (79 kg)
