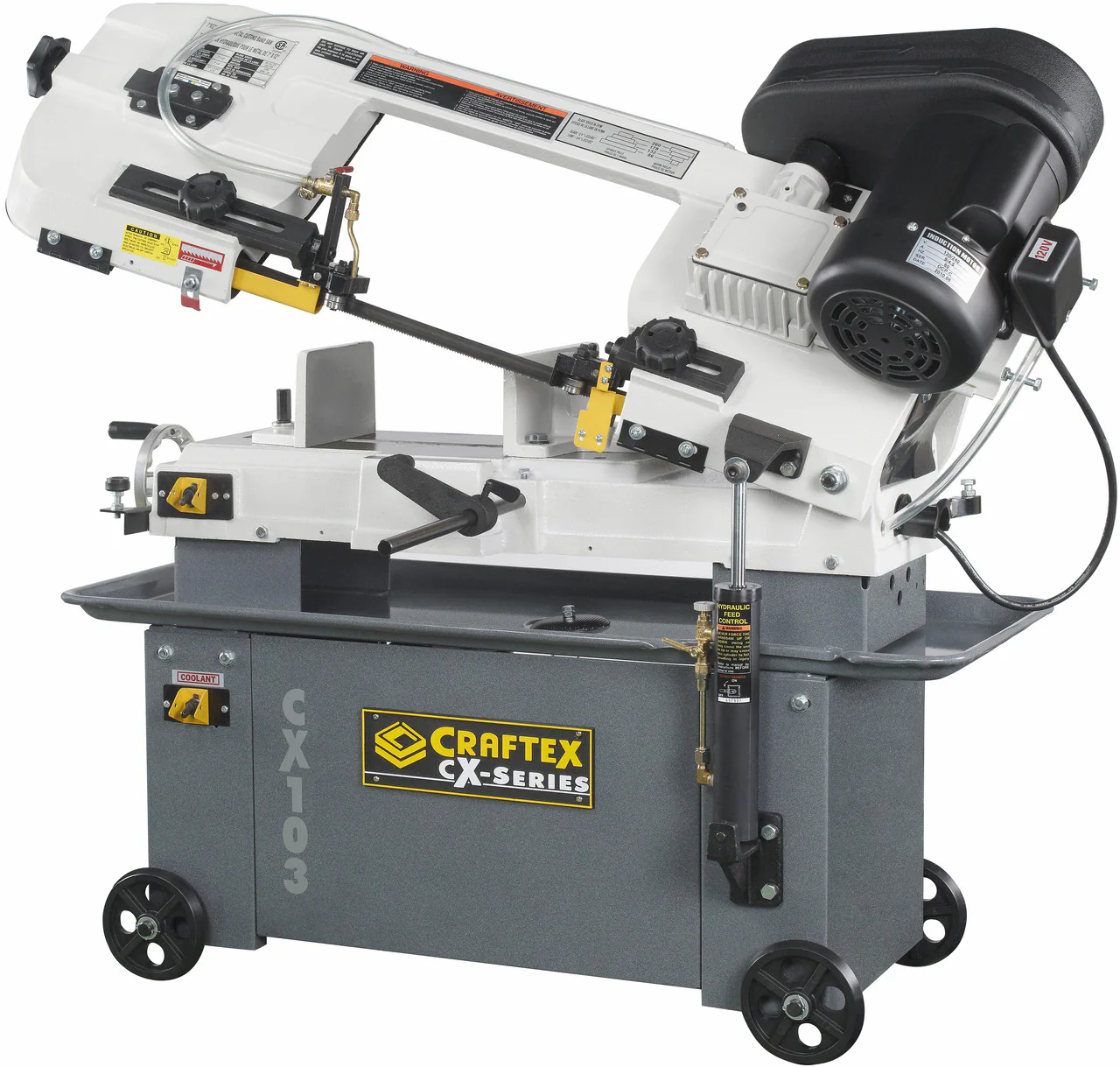

CX103

7” x 12” Metal Band Saw – Craftex CX-Series

This heavy duty metal band saw has all the features you need in a mid size machine.
This unit features a heavy duty 1HP TEFC motor, built in coolant pump, quick position vise, hydraulic down feed and 4 speeds for optimal operation.
Ideal for the production shop or the serious metalworker, this saw can perform horizontal and vertical operations and features a heavy duty cast iron table, head and vise.
Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

FEATURES

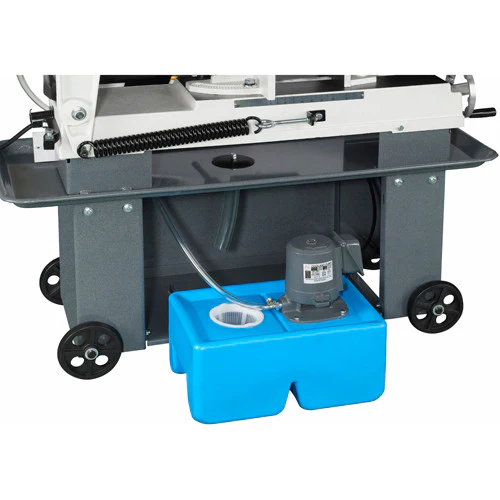

Built in coolant pump
Hydraulic down feed w/Auto Shut Off
Sealed work gear transmission
Gear Box – Oil bath
4 Speeds
Integrated Mobile base
CSA Approved
3 Year Warranty
Made in Taiwan


SPECIFICATIONS

Motor – 1HP TEFC, 110V, Single phase
Blade Speeds – 85, 130, 180 & 235 FPM
Capacity: @ 90 degree 7” x 12” rectangular & 7” round
Blade Size – 3/4” x 0.032” x 93”

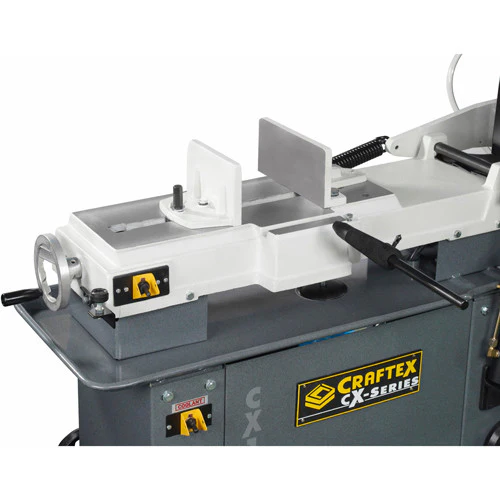

Vise – Swings to 45 degree
Crate Size – 18” x 40” x 50”
Weight – 165 kg
