Gold Certified Refurbished Machine.
Available instore at Concord Store.
Display/Demo Model - Fully Operational/Good Condition
May not be exactly as pictured. Final Sale, As Is, No Warranty.

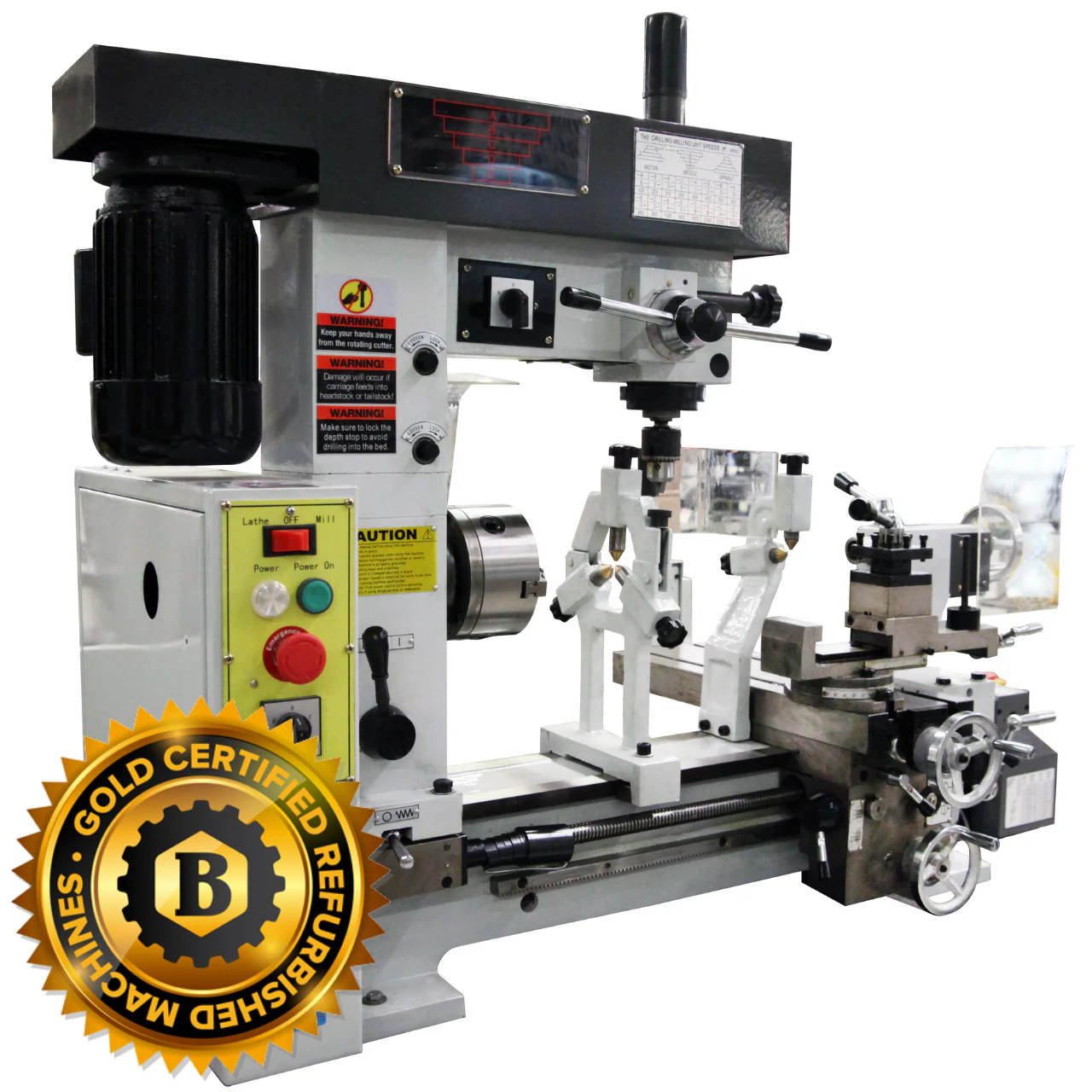

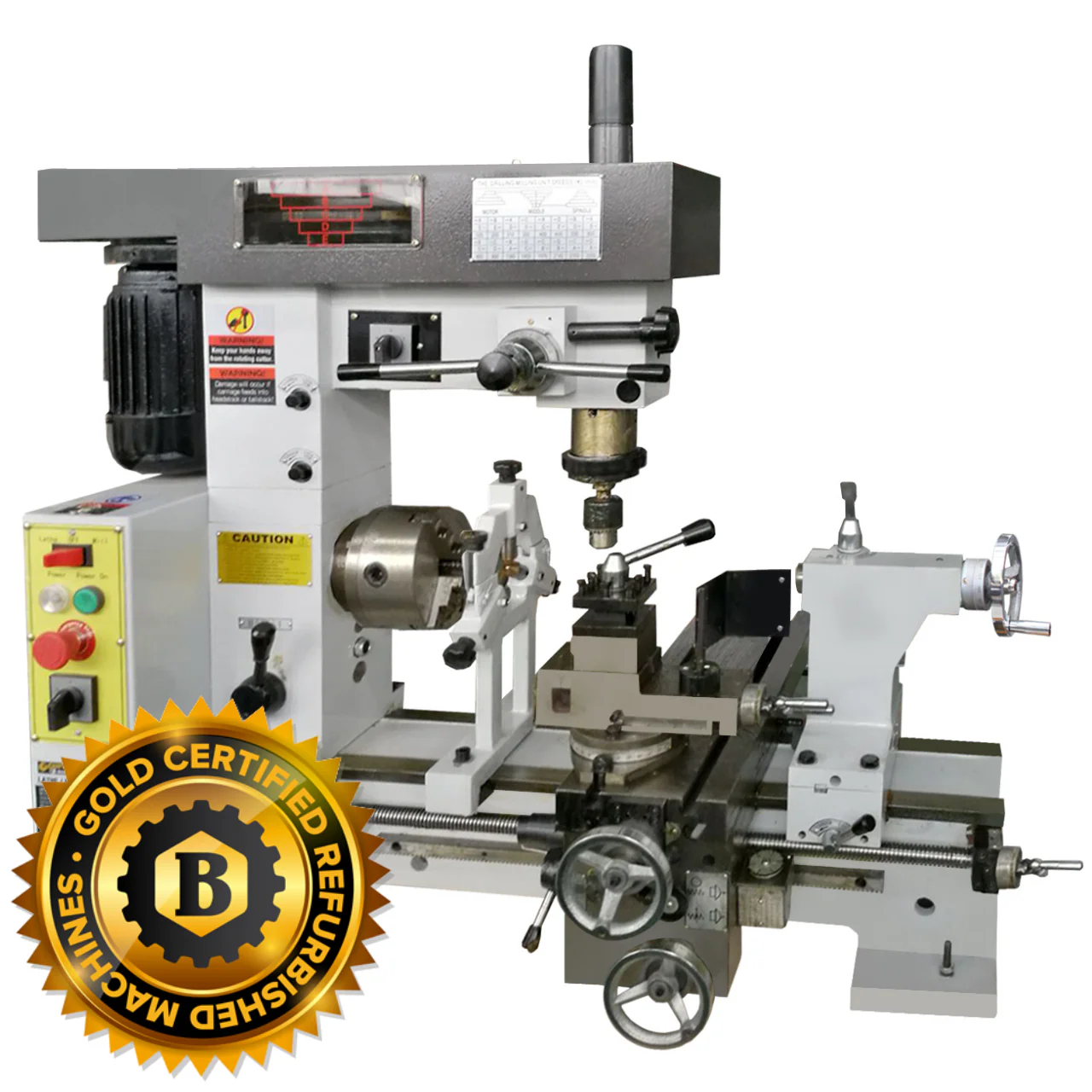

This combination Mill Lathe is an excellent machine for any metalworker, from the hobbyist to the veteran machinist. Not only will it save space in your shop, but it has the features to allow you to tackle a wide range of jobs. Features 16” swing and 20” between centre, 2 independent motors, a 1 1/8” spindle bore, magnetic forward & reverse switches and hardened & ground bed ways.

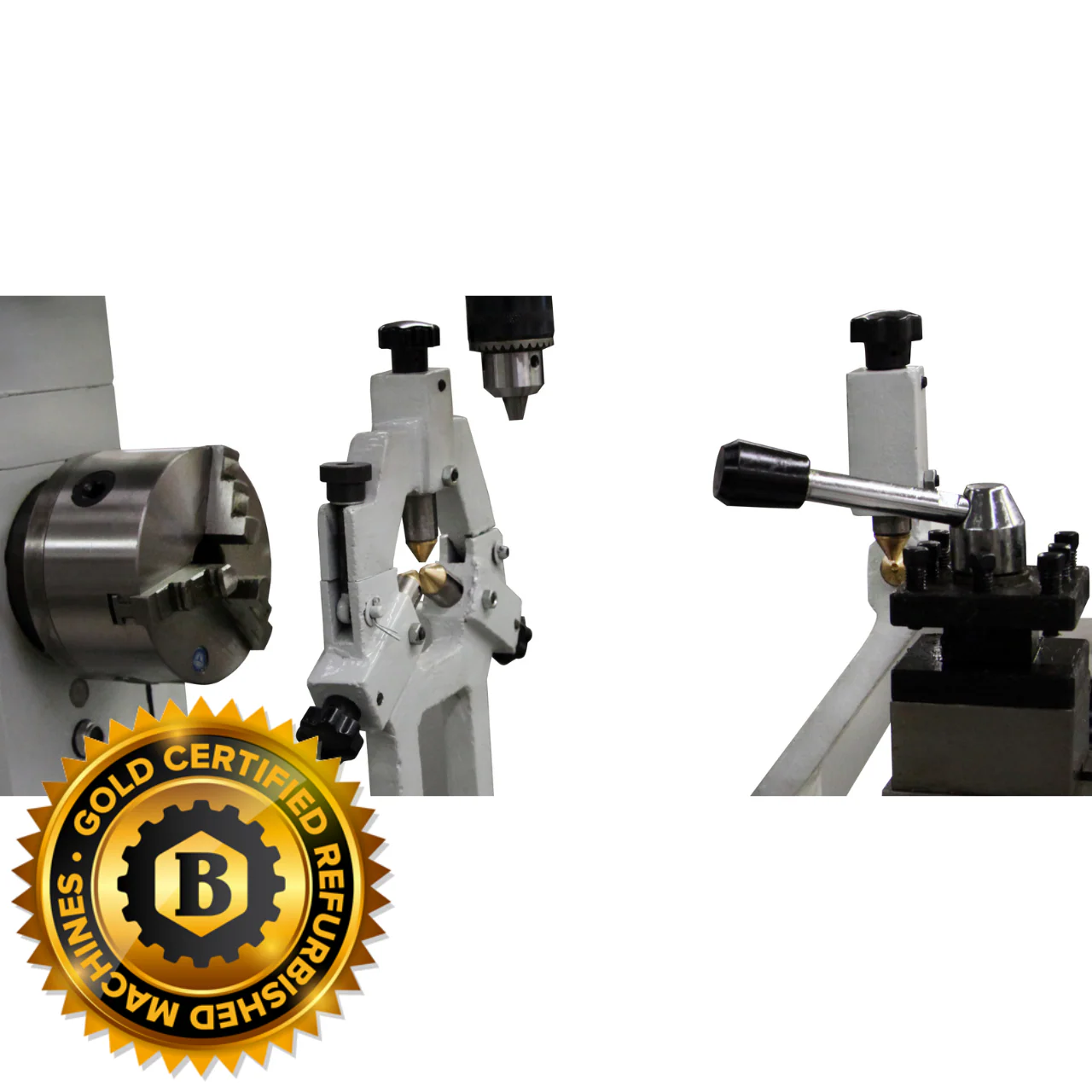

The machine comes complete with a 5” Lathe Chuck, 1/2” Drill Chuck, Steady Rest, Follow Rest, 2 Lathe Centers, Turret Tool Post (1/2” Capacity), Change Gears & Wrenches

Lathe Specifications

Motor # 1 : 3/4 HP, 110V

Spindle bore: 1 1/8”

Speeds 7 (160 – 1360 RPM)

Spindle taper: MT4

Other tapers: MT3

20” between centres

5 1/2” swing above cross slide

Cross slide travel: 8”

Threads: Metric: 2-6 Inch: 120 – 4 TPI

Feed 12 (.05 - .35)

Milling Specifications

Motor # 2: 3/4 HP, 110V motor

Speeds 16 (120 – 3000 RPM)

Spindle to work table: 12”

Spindle travel: 4 1/4”

Drill capacity : 7/8”

End mill capacity: 1 1/8”

Face mill capacity: 3 1/8”

Spindle taper: MT3

Combination Lathe/Mill weight: 280kg.

Carton size: 23” x 43” x 44 1/2”

Standard Equipment

5” Lathe Chuck

1/2” Drill Chuck

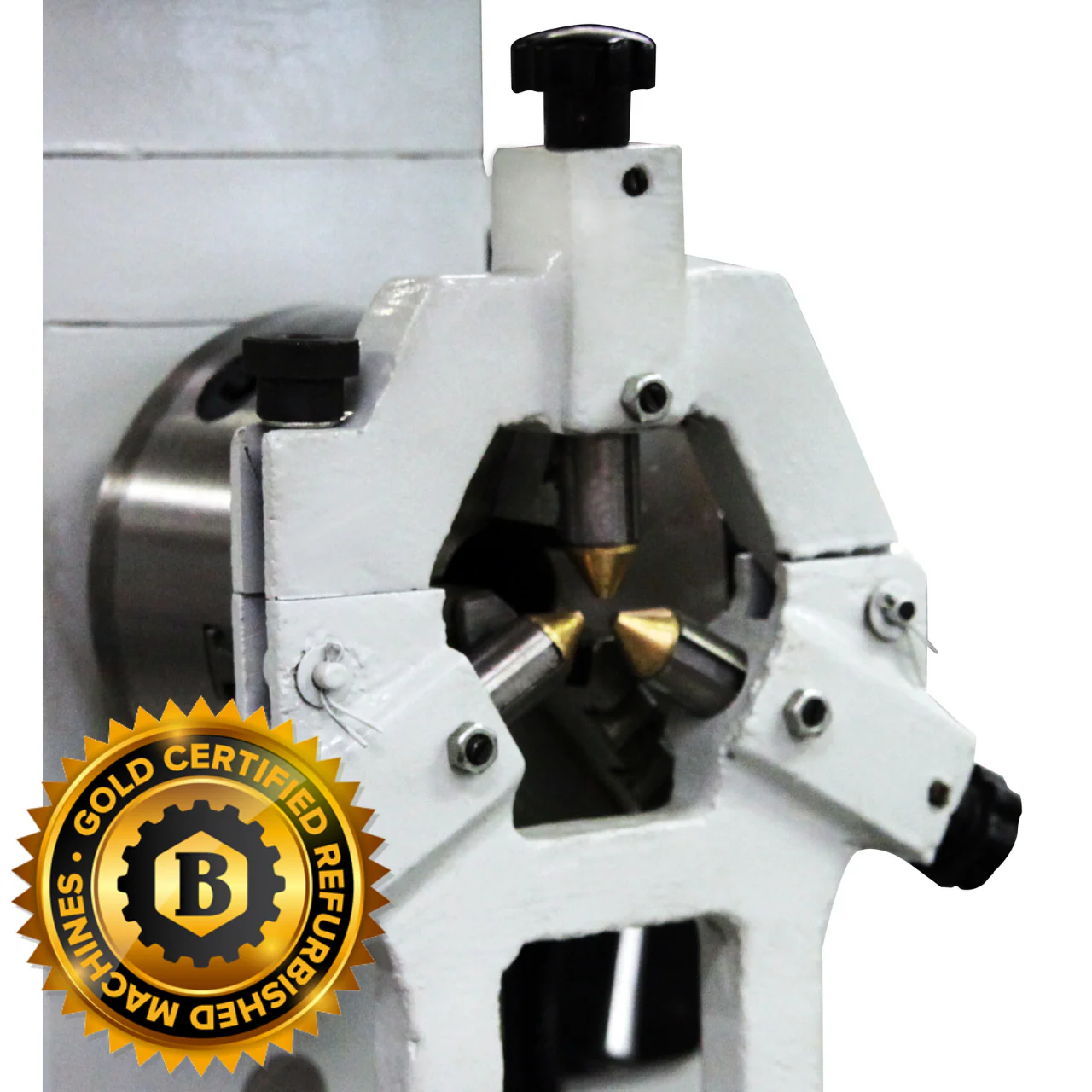

Steady Rest

Follow Rest

2 Lathe Centres

Turret Tool Post – 1/2” Capacity

Change Gears

Wrenches
