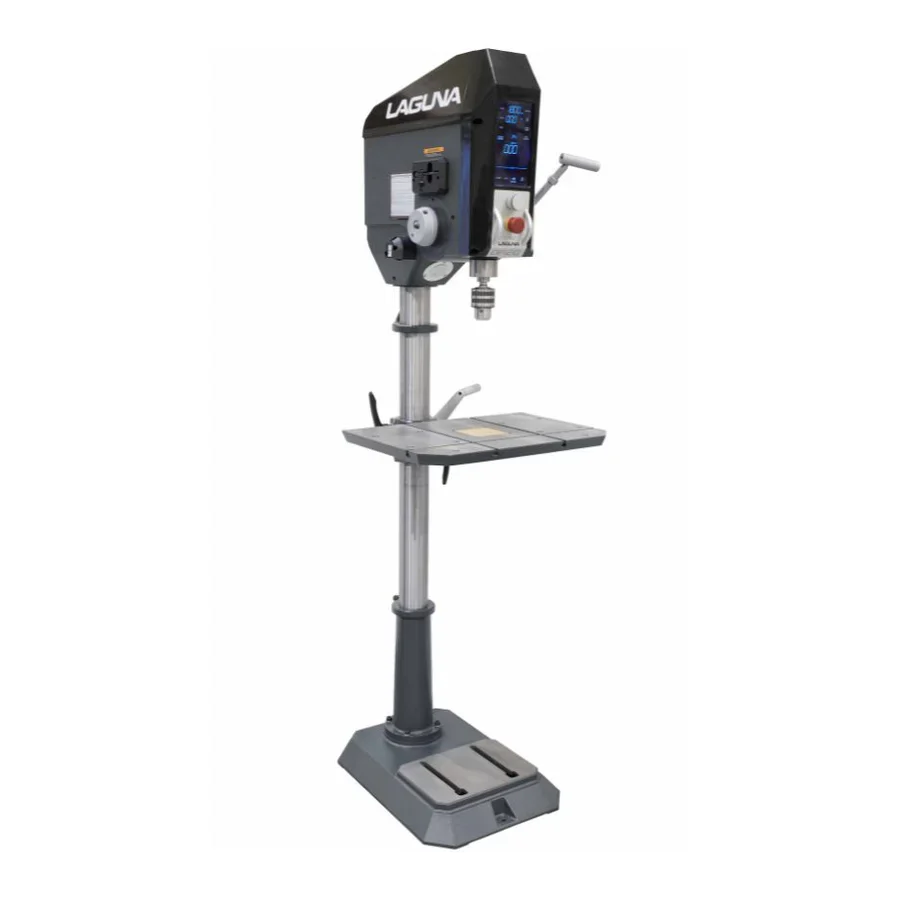

The Laguna 20" Floor Drill Press is a game-changer in the world of industrial drilling, crafted to meet the rigorous demands of woodworking, metalworking, and beyond. Engineered with cutting-edge technology and built for peak performance, it delivers unmatched power, precision, and convenience, setting a new standard in professional drilling machinery.

Features

• Powerful PWM Motor:
• Equipped with a 1.5 HP Pulse Width Modulation motor.
• Maintains constant torque across a full speed range from 60 to 3600 RPM.
• Handles wood, metal, plastics, and other materials with ease.

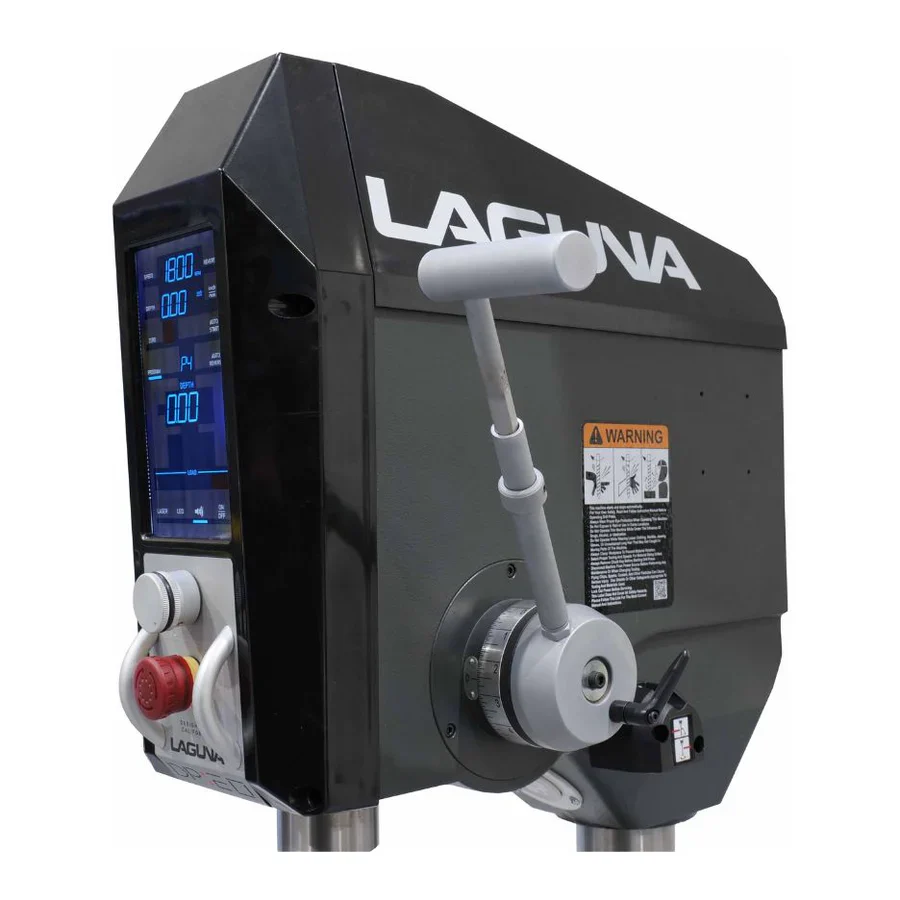

• Touch Screen Smart Panel:
• Advanced 3-3/4" x 6-7/8" blue LCD digital display.
• Real-time monitoring of RPM, load, and quill depth.
• Intuitive touch interface for seamless operation.
• Precision Drilling:
• Electronic depth settings and mechanical depth stops for repeatable accuracy.
• Crosshair lasers enhance material positioning for precise results.
• Automatic Features for Efficiency:
• Auto-Start/Stop function activates the drill when the quill is lowered.
• Auto-Reverse for tapping threads ensures accurate thread cutting.
• Enhanced Worktable:
• 15" x 22" cast iron table supports large workpieces.
• Tilts ±90° and swivels 360° for maximum versatility.
• Built-In Safety Mechanisms:

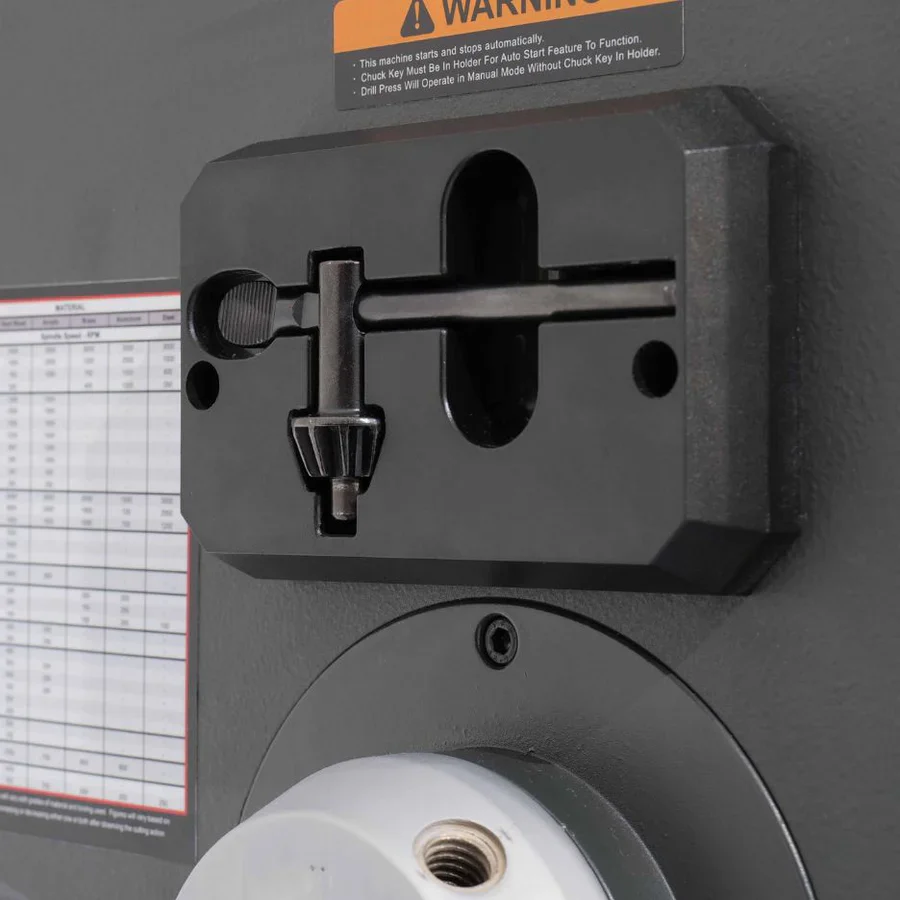

• Chuck key holder with sensor locks out Auto-Start during bit changes.
• Ensures accidental startups are prevented.
• Illumination and Visibility:
• High-output 5W LED work light ensures visibility in low-light environments.
• Crosshair lasers offer precise alignment for intricate tasks.

Specifications

• Motor & Power:
• Voltage: 115V
• Horsepower: 1.5 HP
• Breaker Requirement: 15 amps (minimum)
• Worktable:
• Size: 15" x 22" (380 x 560 mm)
• Tilt: ±90°
• Swivel: 360°
• Drill Capacity:
• Swing: 20" (510 mm)
• Spindle Taper: MT2
• Spindle Travel: 6" (152.4 mm)
• Chuck Capacity: 5/56" to 5/8" (2–16 mm)
• Other Dimensions:
• Spindle to Column Max: 10" (255 mm)
• Spindle to Table Max: 29-5/16" (745 mm)
• Spindle to Base: 49.5" (1257 mm)
• Machine Footprint (LxWxH): 23-7/8" x 17" x 72.5" (607 x 432 x 1842 mm)
• Weight:
• Net Weight: 304 lbs (138 kg)
• Gross Weight: 326 lbs (148 kg)
• Lighting:
• LED Work Light: 5W
• Laser Alignment: Integrated

Comes With

• Integrated LED Work Light: Ensures clear visibility during drilling tasks.
• Precision Crosshair Lasers: For exact alignment and accuracy.
• Chuck Key Holder with Safety Lock: Prevents accidental activation.
• Durable Cast Iron Base and Worktable: Offers long-lasting stability and support.
• 72-Inch Power Cord: Provides flexibility in machine placement.
• Auto-Reverse Tapping Feature: Streamlines thread-cutting operations.
