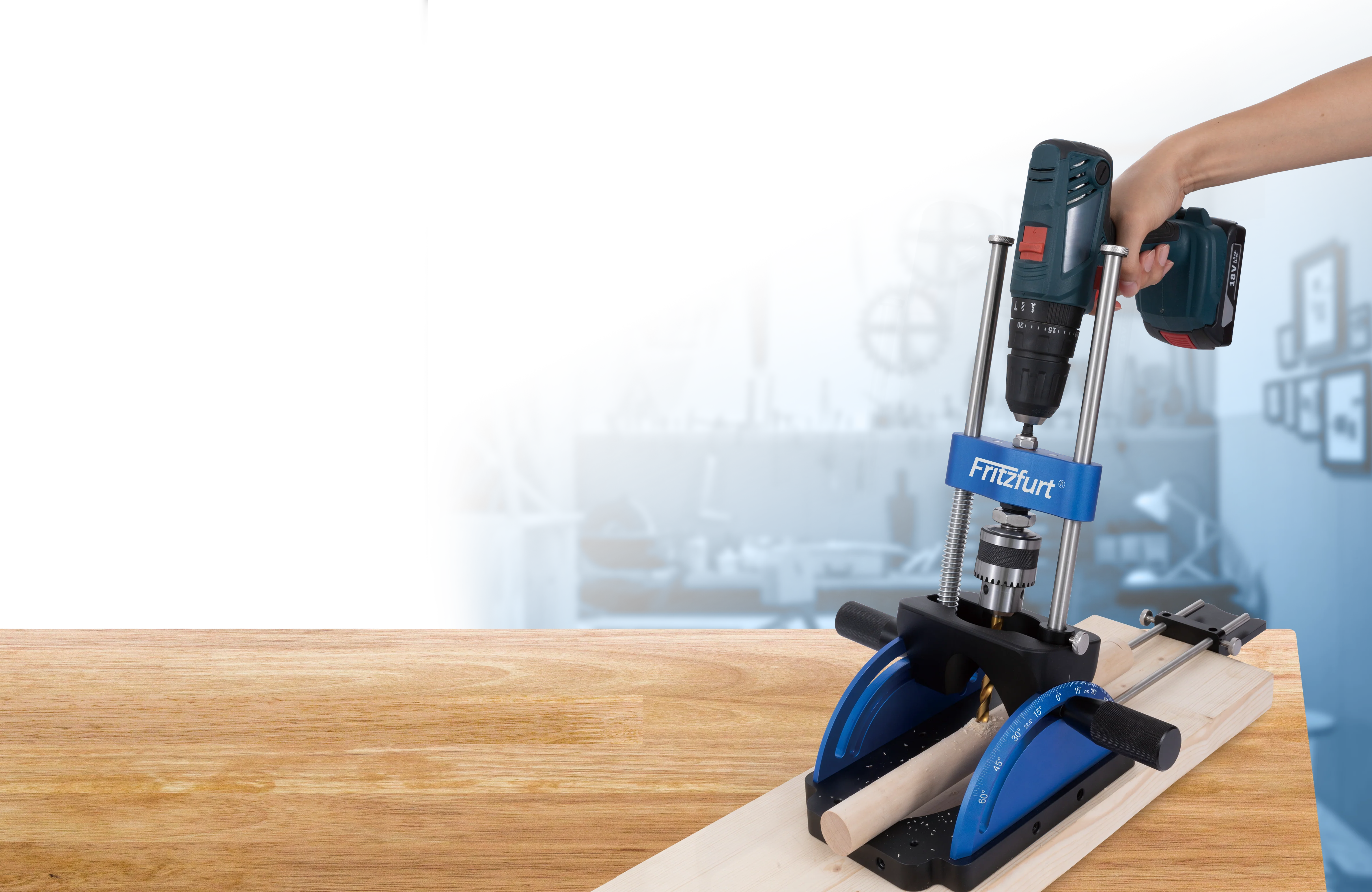

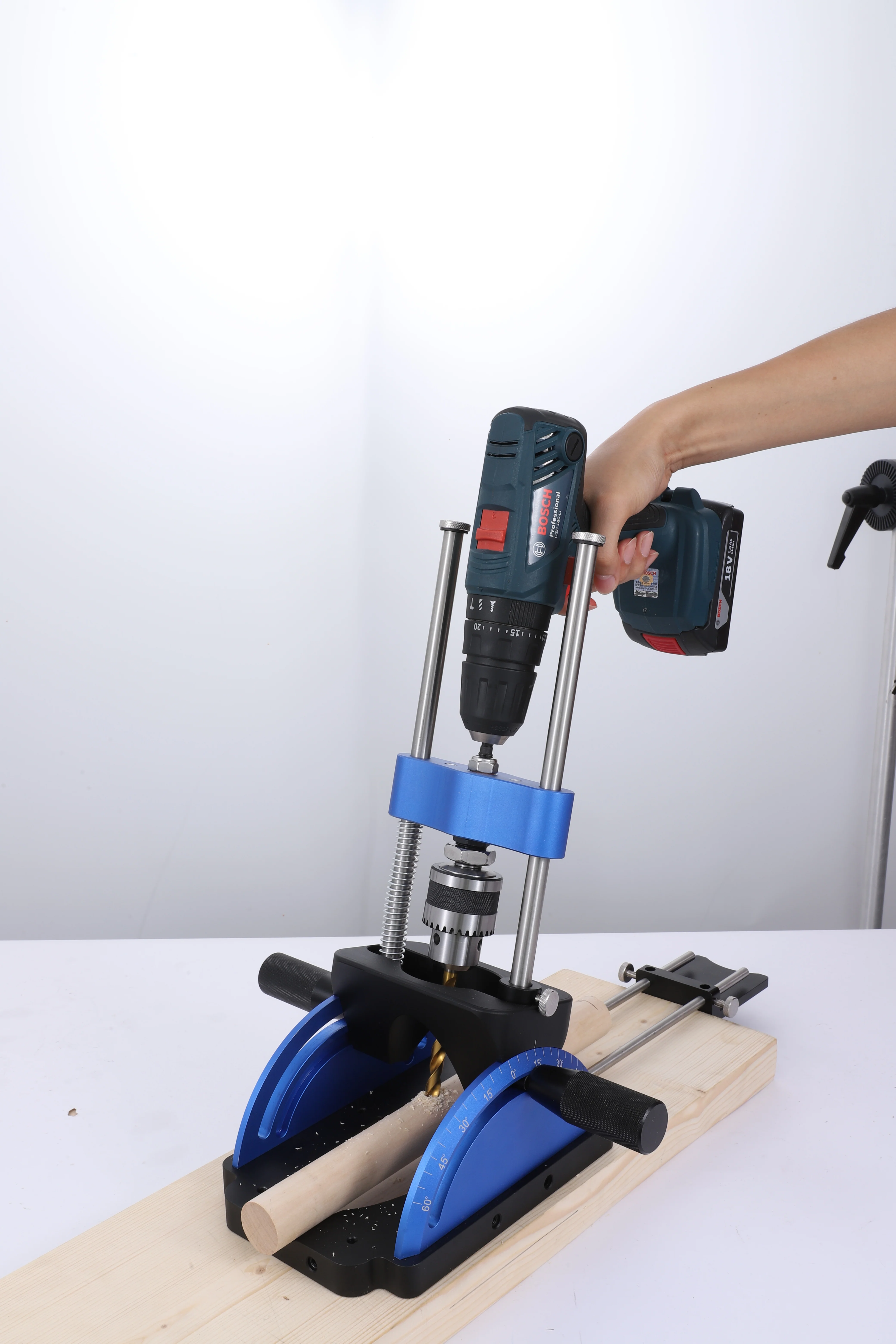

Engineered for demanding drilling applications, the B4396 Heavy Duty Drill Guide delivers superior precision, stability, and control. Built with a high-precision circulating ball bearing guide and robust construction, this advanced drill guide is designed for professional-grade performance in both straight and angled drilling. Its stainless steel return spring and continuously adjustable depth stop ensure reliable operation over extended use, while dual clamping grips with ±60° angle adjustment allow for smooth and secure positioning at virtually any angle. With a premium 1/2" chuck and extended drilling capacity, this tool is ideal for woodworkers, fabricators, and tradespeople who require consistent, repeatable accuracy in a versatile, portable form.

Features:

• High-precision circulating ball bearing guide ensures smooth and accurate drilling

• Premium 1/2" chuck (Ø 1 mm to Ø 13 mm) accommodates a wide range of drill bits

• Continuously adjustable depth stop for consistent and repeatable hole depths

• Stainless steel return spring enhances durability and ensures controlled return motion

• Dual adjustable clamping grips provide secure hold and ±60° continuous angle adjustment for precise angled drilling

• Clamps lock the drill guide firmly in position for enhanced stability on flat or irregular surfaces

• Heavy-duty construction minimizes deflection and maximizes control during drilling

Specifications:

• Maximum Drilling Depth: 200 mm

• Maximum Drill Bit Length: 320 mm

• Chuck Capacity: Ø 1 mm to Ø 13 mm

• Maximum Drilling Diameter: Ø 64 mm

• Weight: 4.7 kg

Comes With:

• Heavy-duty drill guide unit with adjustable clamps and depth stop
