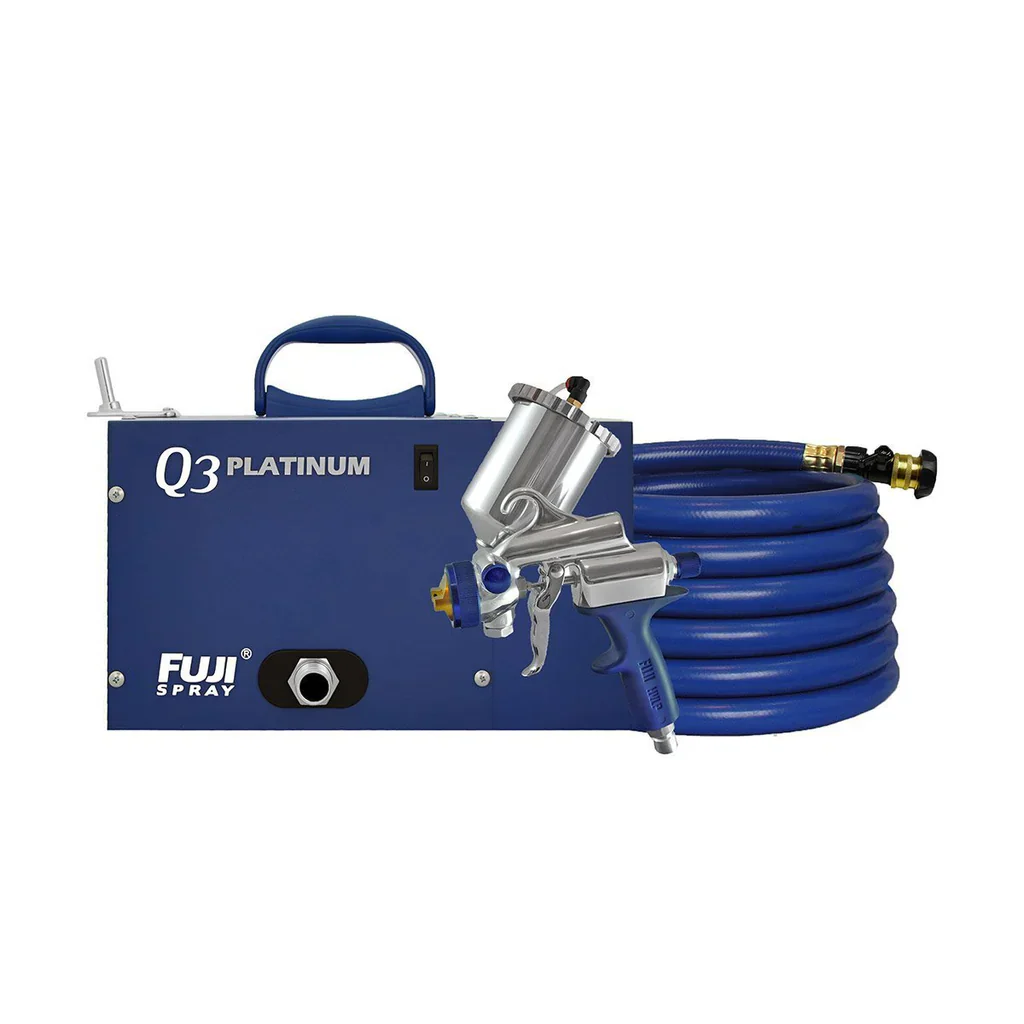

The Q3 Platinum™ Series is a top-of-the-line, high-performance turbine system designed for superior fine-finishing applications. It incorporates cutting-edge technology, making it an industry leader in heat dissipation, noise reduction, and spray quality. Engineered for professionals such as cabinet makers and furniture refinishers, the Q3 Platinum™ Series offers unparalleled precision and efficiency.

Key Features:

• Advanced Heat Dissipation Box (HDB):
• Proprietary technology that effectively expels excess heat from the turbine.
• Ensures cooler operating temperatures, extending the life of the turbine motor.
• Hot air is routed to the rear of the turbine, passing through 60 holes for silent heat release.
• Patented Noise Reduction Technology:
• Developed with engineering expertise from Carleton University, backed by a government grant.
• Reduces noise levels by over 50%, making it the quietest 3-stage turbine available today.
• Operates at only 62 dba at 15 ft, and 59 dba at 20 ft, ensuring a peaceful working environment.
• G-XPC™ Gravity Spray Gun with Exclusive Features:
• Side Pattern Control Knob allows for easy adjustment of the fan size.
• Comes installed with a 1.4mm High-Efficiency™ Air Cap, ideal for lacquers, enamels, polyurethanes, latex, and water-based coatings.
• Features a side-mounted 400cc Gravity Cup with a tilt function, allowing spraying in any direction, including upwards.
• The adjustable angle of the Gravity Cup provides flexibility and is now pressurized, offering a full range of spray applications.
• Powerful 3-Stage Turbine:
• Delivers a consistent pressure of approximately 6.5 psi.
• Perfect for fine-finishing projects, including cabinetry and furniture refinishing.

Specifications:

• Turbine Dimensions: 14.87" x 11.5" x 9" (37.7 cm x 29.2 cm x 20.9 cm)
• Weight: 30.6 lbs (13.9 kg)
• Voltage/Hz: 110 - 120 volt / 60Hz
• Amperage: 12 Amp
• PSI: 6.5
• Noise Level:
• 62 dba at 15 ft
• 59 dba at 20 ft
• (For comparison, normal conversation is around 60 dba)

Comes With:

• Q Series 3-Stage Turbine: The heart of the system, providing reliable and powerful performance.
• G-XPC™ Gravity Feed Spray Gun: Featuring the side pattern control knob and a 1.4mm Air Cap Set for fine finishing.
• 25-Foot (7.62m) Hose: Offers extended reach and flexibility during use.
• Quick Connect Coupler: For easy and efficient attachment.
• Air Control Valve: Allows for precise air pressure adjustments.
• Viscosity Cup: Helps in determining the right consistency of your coatings.
• Cleaning Brush and Wrench: Essential tools for maintaining your spray gun.
• Instruction Manual: Comprehensive guide to get you started and maintain peak performance.
