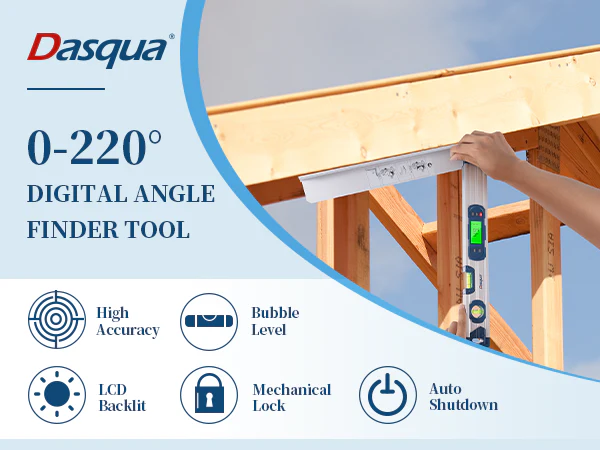

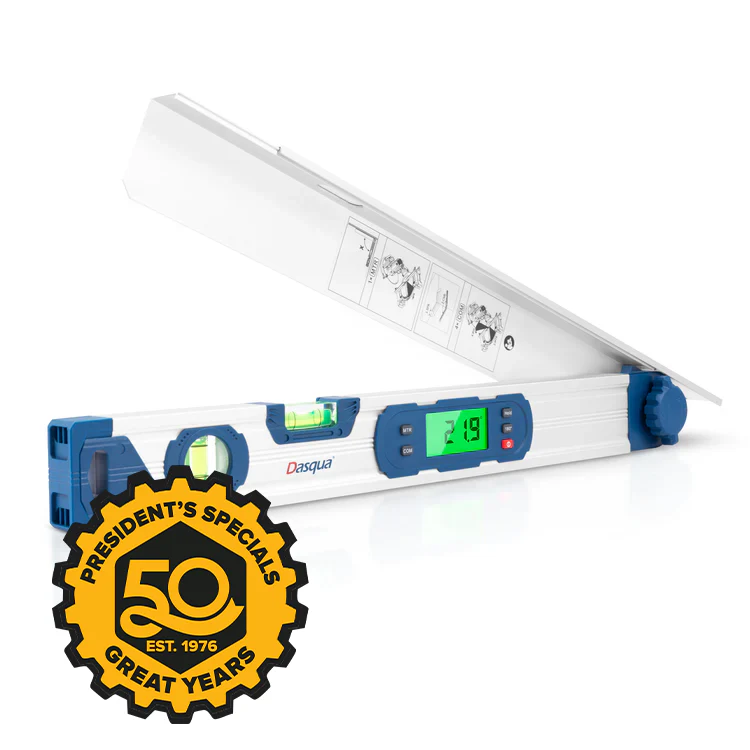

The DASQUA Digital Level & Protractor is a high-precision measuring tool designed for professional use in woodworking, metalworking, and construction. With a superior accuracy of ±0.2°, it outperforms standard models in the market that typically offer only ±0.5° accuracy. This digital level integrates advanced measurement functions, allowing users to calculate simple and compound mitres effortlessly. Equipped with an LCD display featuring a backlight, it ensures clear readings even in dimly lit environments. The inclusion of a vertical and horizontal spirit level allows for manual levelling, making this tool a versatile addition to any workshop.

Key Features:

• High Accuracy: ±0.2° measuring accuracy, superior to standard models.
• Digital Display: LCD screen with backlight for easy readability.
• Multiple Functions:
  • 180° Function: Press the “180°” button to calculate and display the supplementary angle.
  • Mitre Angle Calculation (MTR Mode): Accurately calculates single mitre cuts.
  • Compound Mitre Calculation (COM Mode): Determines both horizontal and vertical mitre angles.
• Spirit Levels: Integrated horizontal and vertical spirit levels for manual levelling and object alignment.
• Leg Extension: Provides additional reach and versatility.
• Zero Point Adjustment: Can be reset at any position for precise measurements.
• Durable Construction: Made with an aluminum base and a sturdy aluminum leg extension.
• Ergonomic Design: Includes a hanging hole for convenient storage.
• Portable & Secure: Comes with a pouch bag for easy transport and protection.
• Automatic Power-Off: Powers down after approximately 5 minutes of inactivity to conserve battery life.

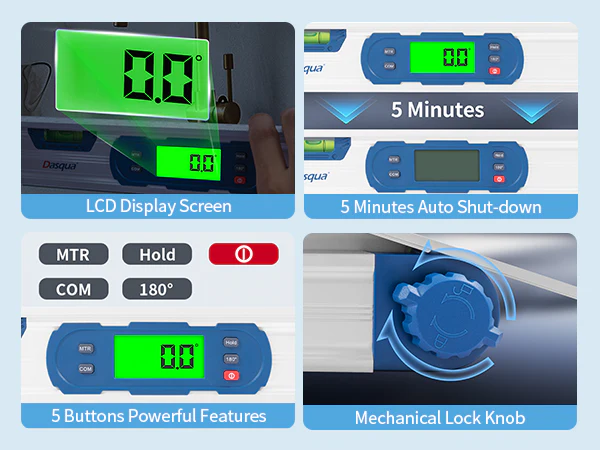

• User-Friendly Interface: Operated with five silicone buttons—On/Off, 180°, Hold, MTR, and COM.

Specifications:

• Leg Length: 400 mm

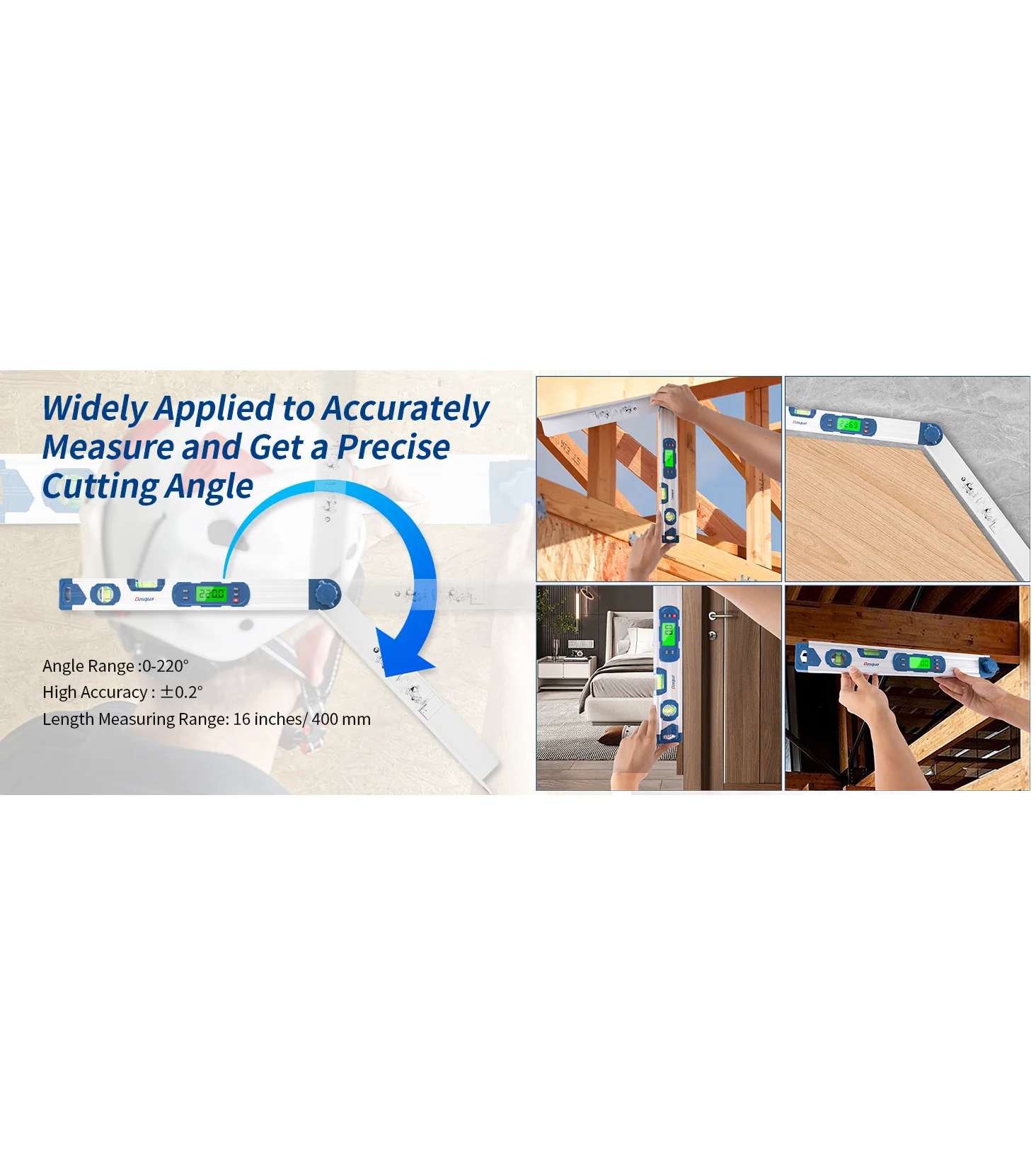

• Measuring Range: 0 - 220°
• Accuracy: ±0.2°
• Resolution: 0.1°
• Angle Calculation Accuracy: ±0.1°
• Spirit Level Accuracy: 1.5 mm/m
• Screen: LCD with backlight
• Auto Power-Off: Approximately 5 minutes
• Material:
  • Base: Aluminum
  • Leg Extension: Aluminum
  • Buttons: Silicone
• Material Thickness: 2.0 mm aluminum
• Weight: 0.50 kg (±10%)
• Dimensions: 425 × 41 × 58 mm (L × W × H)
• Battery: 2 × 1.5V AA (LR6)

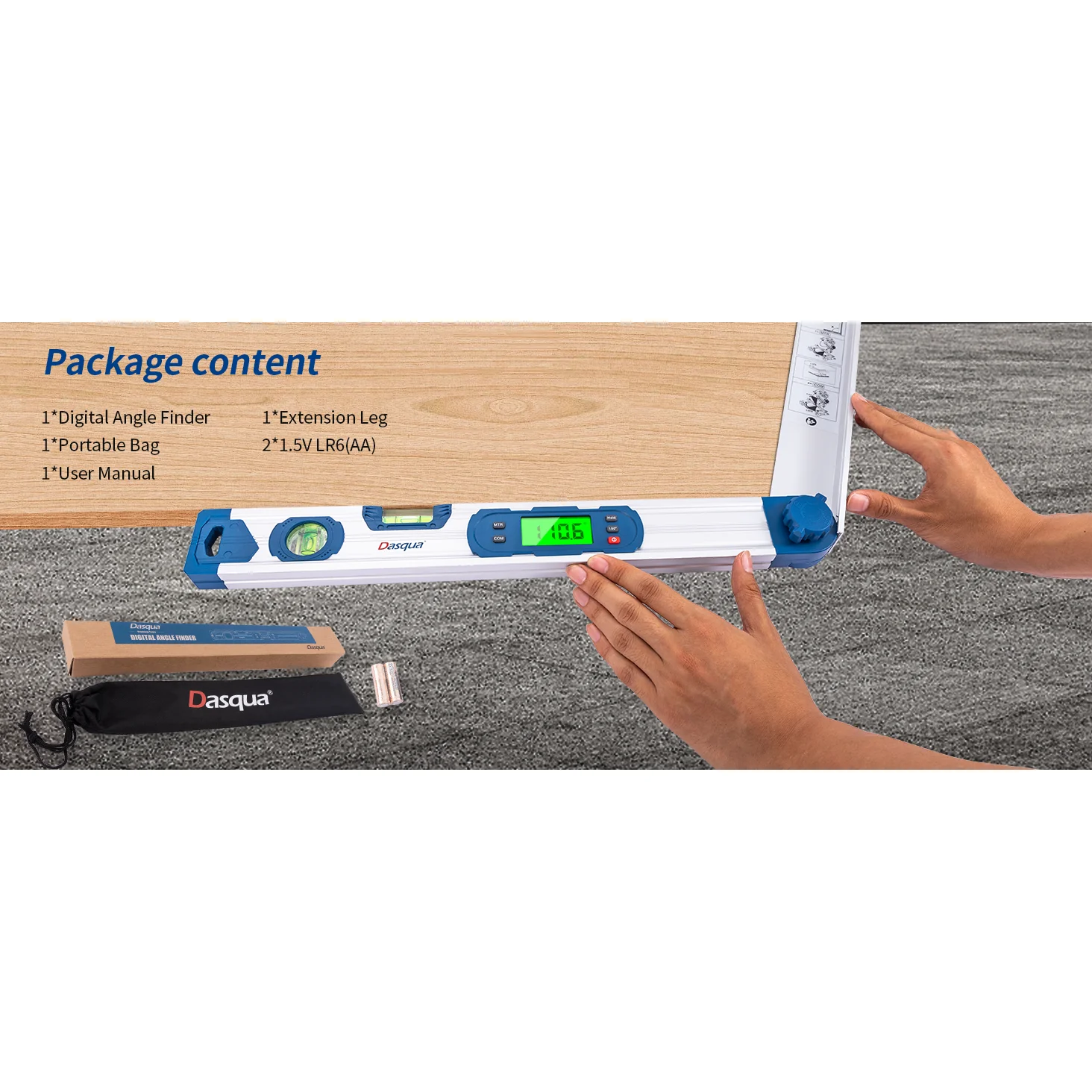

Comes With:

• Protective Pouch Bag for safe storage and transport.
• Two 1.5V AA (LR6) Batteries for immediate use.
• User Manual for easy setup and operation.
