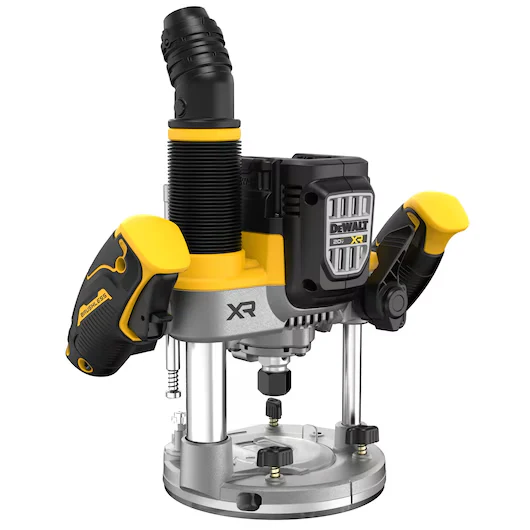

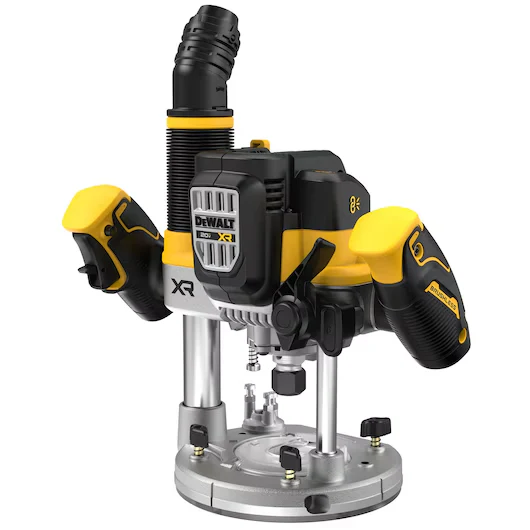

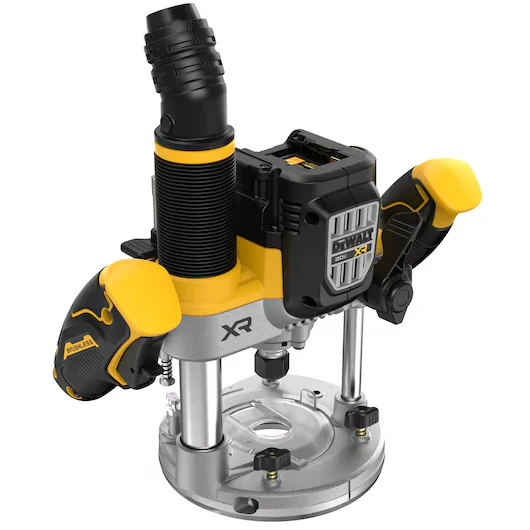

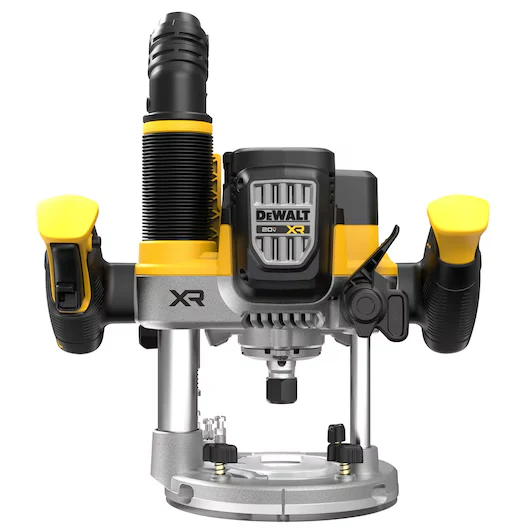

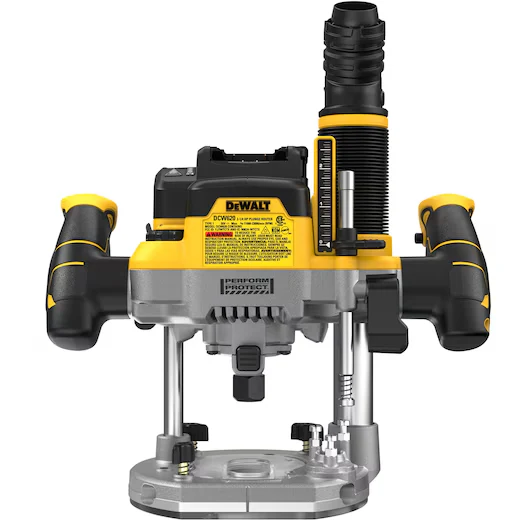

The 20V MAX XR® 2-1/4 Peak HP Plunge Router (Tool Only)* is the world’s first cordless plunge router of its kind, delivering the power and performance of a corded router with the freedom of a cordless tool. With a robust 2-1/4 peak horsepower brushless motor, this router tackles a wide range of applications, from precise edge profiling to aggressive plunge cuts. Featuring an advanced ANTI-ROTATION System, integrated dust collection, and a compact, balanced design, it’s built for both tough job sites and meticulous craftsmanship. Compatible with the DEWALT AirLock™ system, it ensures a clean workspace and maximizes productivity.

Features

• Most Powerful 20V MAX Cordless Router*: Delivers consistent cutting performance for demanding applications.
• Long Runtime: Completes up to 256 linear feet of routing 5/8-inch roundovers in pine on a single charge (with DCBP520 battery, sold separately).
• Integrated Dust Collection: Captures up to 97% of dust when paired with a DEWALT DWV015 dust extractor and compatible battery.
• Variable Speed Dial: Adjusts speed between 11,000-23,000 RPM (no-load) for precise control in different materials.
• ANTI-ROTATION System: Senses excessive tool motion and shuts down for added safety, with a red LED indicator for engagement.
• Tool-Free Adjustments:
  • Depth Adjustment System: Quickly set up depth with an adjustable turret stop, depth stop, and micro-fine adjusters.
  • Plunge Lock Lever: Engage or disengage without removing hands from the handles.
• Dual LED Lights: Illuminate the workspace for improved bit visibility and precision.
• Compact & Lightweight: Stands 11.5 inches tall and weighs only 8 lbs., ensuring comfort and control during extended use.
• Durable Build: Designed for job site resilience with top-tier materials and construction.

Specifications

• Motor: Brushless, 2-1/4 Peak HP.
• Power Source: 20V MAX* battery system (battery and charger sold separately).
• Speed Range: Variable, 11,000-23,000 RPM (no-load).
• Height: 11.5 inches.
• Weight: 8 lbs. (tool only).
• Collet Sizes: Compatible with 1/4-inch and 1/2-inch bits.
• Dust Collection: Integrated system with AirLock™ compatibility, up to 97% dust capture.
• Applications: Dados, grooves, flutes, edge profiling, inlays, flush trimming, rabbeting, mortising, and doweling.

Comes With

• 1/4 in. (6.4mm) Collet with Nut
• 1/2 in. (12.7mm) Collet with Nut
• Wrench
• Dust Cap
• (2) Dust Shields
• Dust Port with AirLock™ Compatibility
• Chip Collector
• Centering Cone
• (2) Sub-bases
• 30mm Guide Bushing

Ideal For

Professionals and hobbyists who need a versatile and powerful router for precision woodworking projects, whether at the job site or in the workshop. This tool provides unmatched performance, safety, and convenience in a cordless design.
