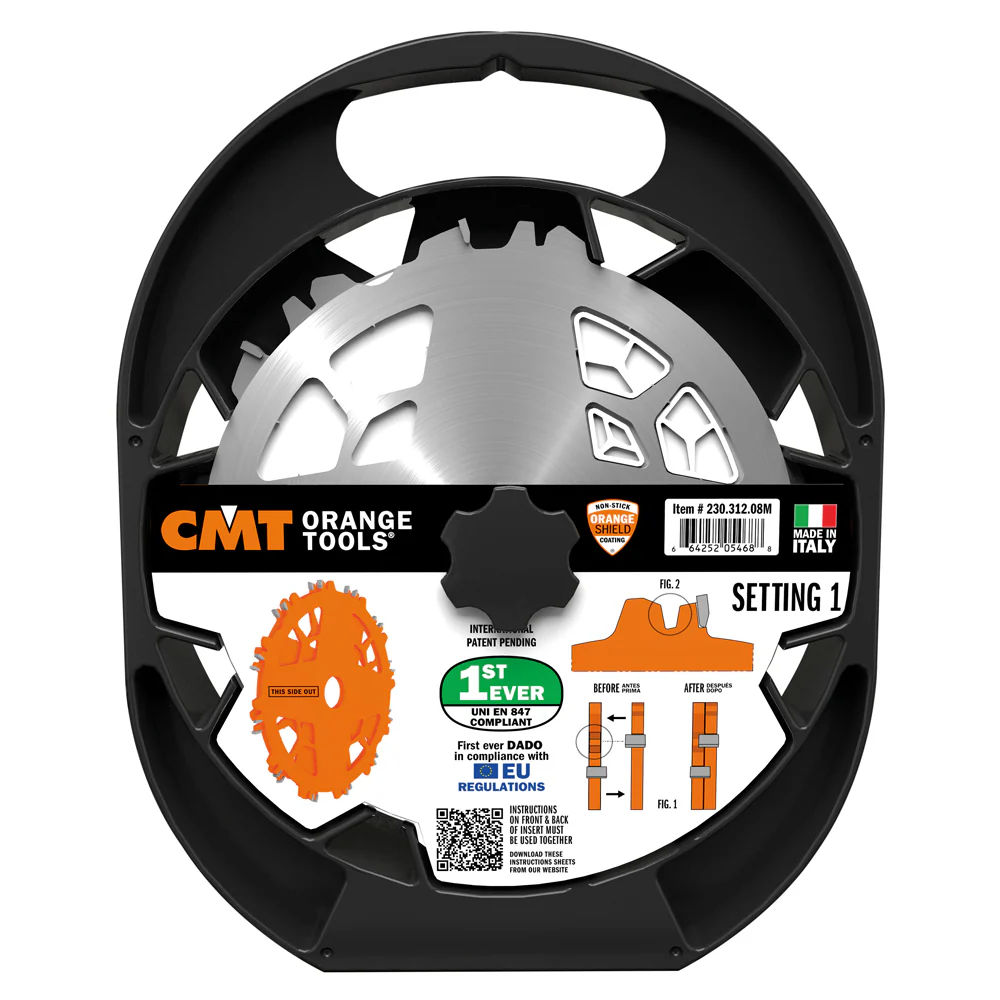

The CMT Locked Dado Pro 8 inch Dado Set is engineered for precise, flat-bottom dado cuts with enhanced safety and control. Featuring a patented locking system that complies with UNI EN 847 standards, this dado set ensures maximum stability and performance on table saws.

Designed with a combination of flat teeth and ATB (Alternate Top Bevel) teeth in a negative 12 degree hook angle, it delivers clean shoulders, smooth bottoms, and reduced tear-out in plywood and solid wood.

Features

• Patented Locked Dado Pro design for enhanced safety and stability
• UNI EN 847 compliant
• Flat tooth + ATB tooth configuration for clean, flat-bottom cuts
• Negative 12 degree hook angle for controlled cutting
• Produces smooth, precise dado and groove cuts

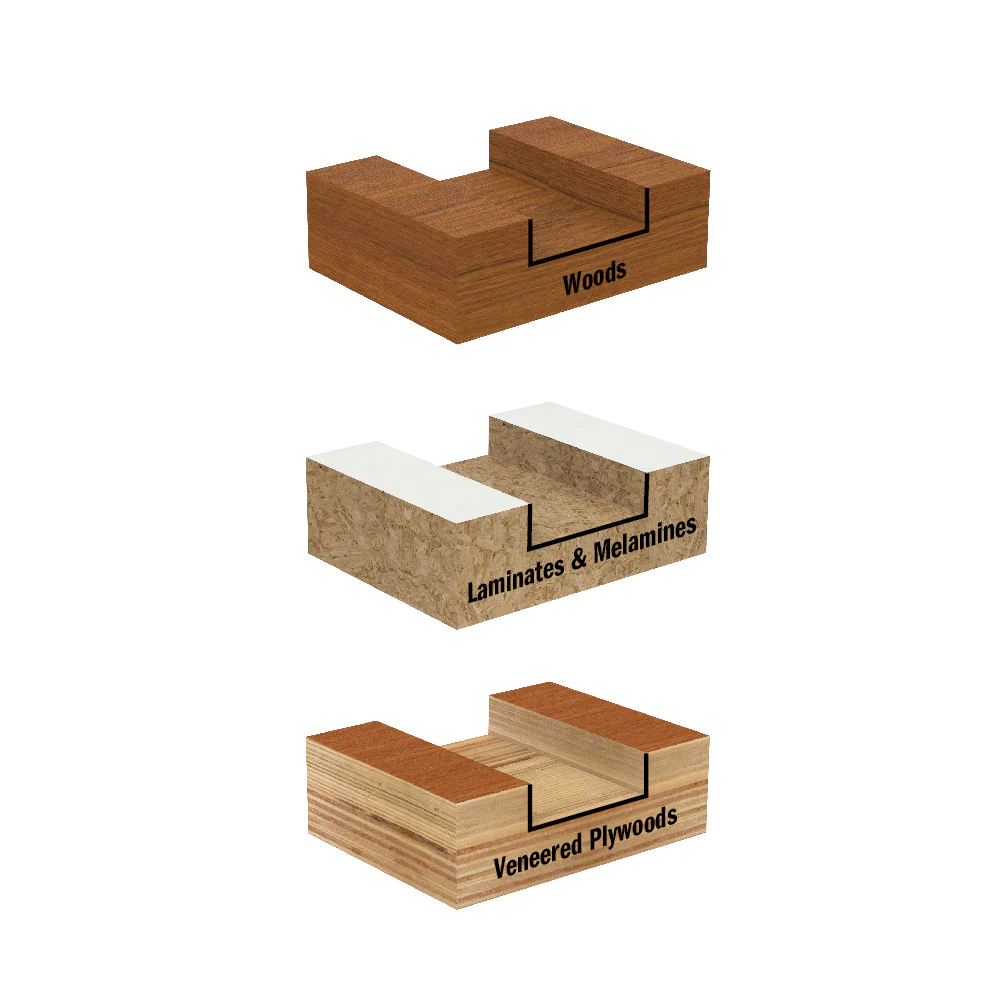

• Ideal for plywood, hardwood, softwood, and composite materials
• High-quality carbide tips for long-lasting performance
• Made in Italy

Specifications

• Brand CMT Orange Tools
• Model 230.312.08
• Diameter 8 inches (203 mm)

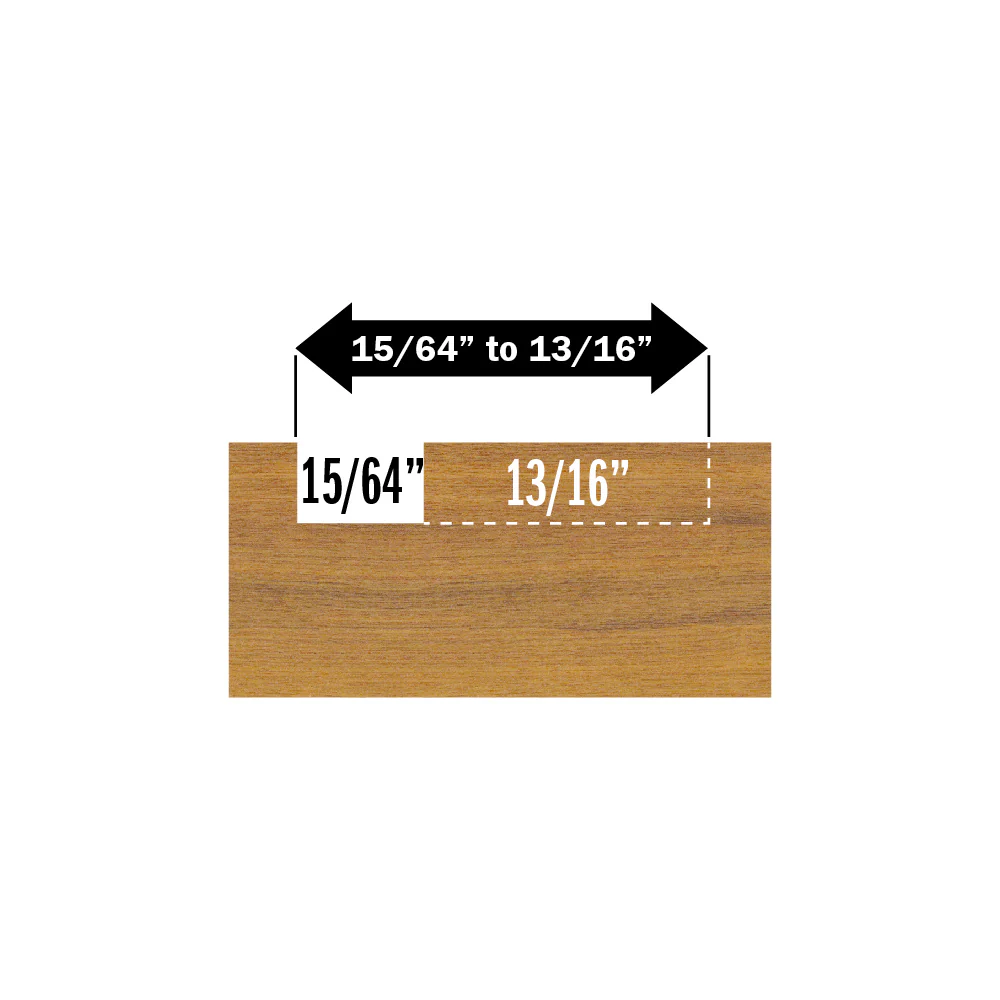

• Cutting width range 15/64 inch to 13/16 inch
• Bore size 5/8 inch
• Number of teeth 12T
• Tooth geometry Flat + ATB
• Hook angle -12 degrees negative
• Maximum RPM 6000
• Application Table saw dado cutting

Applications

• Cutting dados and grooves
• Cabinetry and furniture making
• Shelving and joinery work
• Plywood and solid wood joinery
