9" X 32" GEARHEAD MILLING DRILLING MACHINE

Product image 1
1 / 6
+1

9" X 32" GEARHEAD MILLING DRILLING MACHINE

Designed for durability and high-precision performance, the Busy Bee Tools BBMM45 Premium Gearhead Milling Machine is engineered for demanding metalworking tasks in professional and industrial settings. Powered by a robust 1.5HP motor and equipped with an R8 spindle taper, this gear driven milling machine offers smooth and reliable operation across a wide speed range. The gearhead design allows for efficient torque transmission with minimal vibration, while the heavy-duty tapered roller bearings ensure stability during intensive milling. Key safety features, including a magnetic line interruption switch and safety guard with limit switch protection, make it a dependable choice for consistent operation. The BBMM45 also features large micrometer dials on the control hand wheels for precision work and includes essential tooling to get started. Compatible with the optional BBMILLSTAND for added support.

Features:

  • Gearhead drive system for enhanced torque and reduced vibration under load
  • Powerful 1.5HP, 220V motor supports demanding applications
  • R8 spindle taper allows compatibility with a wide range of tooling
  • Magnetic line interruption switch requires manual restart after power failure
  • Safety guard with integrated limit switch protection
  • Spindle supported by four heavy-duty tapered roller bearings for improved accuracy
  • Forward and reverse switch for increased versatility
  • Large micrometer dials on hand wheels, graduated in 0.001" for fine adjustments

Specifications:

  • Powerful 1.5HP, 220V, 1PH, 60HZ motor
  • Spindle Taper: R8
  • Cast Iron Table Size: 32.3” x 9.45”
  • Drilling capacity: 1 1/4"
  • Max. distance spindle nose to table: 18"
  • Swing: 20 7/16"
  • Spindle stroke: 5"
  • Speeds: 6 (60–1,500) RPM
  • Face mill capacity: 4"
  • End mill capacity: 1 1/4"
  • Max. longitudinal travel: 20 1/2"
  • Max. cross travel: 8 1/4"
  • Assembled Dimensions: 33 15/32" x 33 3/4" x 51 3/16", 316kgs (697 lbs)
  • Packaged Dimensions: 28 15/16" x 35 13/16" x 51 3/16" , approx. 353kgs (778 lbs)
  • Made in Taiwan

Comes With:

  • 3" face cutter
  • 3-1/2" angle vise
  • Safety guard
  • 2 year warranty



BBMM45 Image 1
The BBMM45 is a heavy-duty gearhead milling machine built for accuracy, rigidity, and long-term reliability. Its massive cast-iron structure and high-torque drive system deliver confident performance for demanding machining work.
BBMM45 Image 2
The oversized column and base provide exceptional stability and vibration damping. This rigid foundation ensures cleaner cuts, better finishes, and consistent accuracy even during heavy milling operations.
BBMM45 Image 3

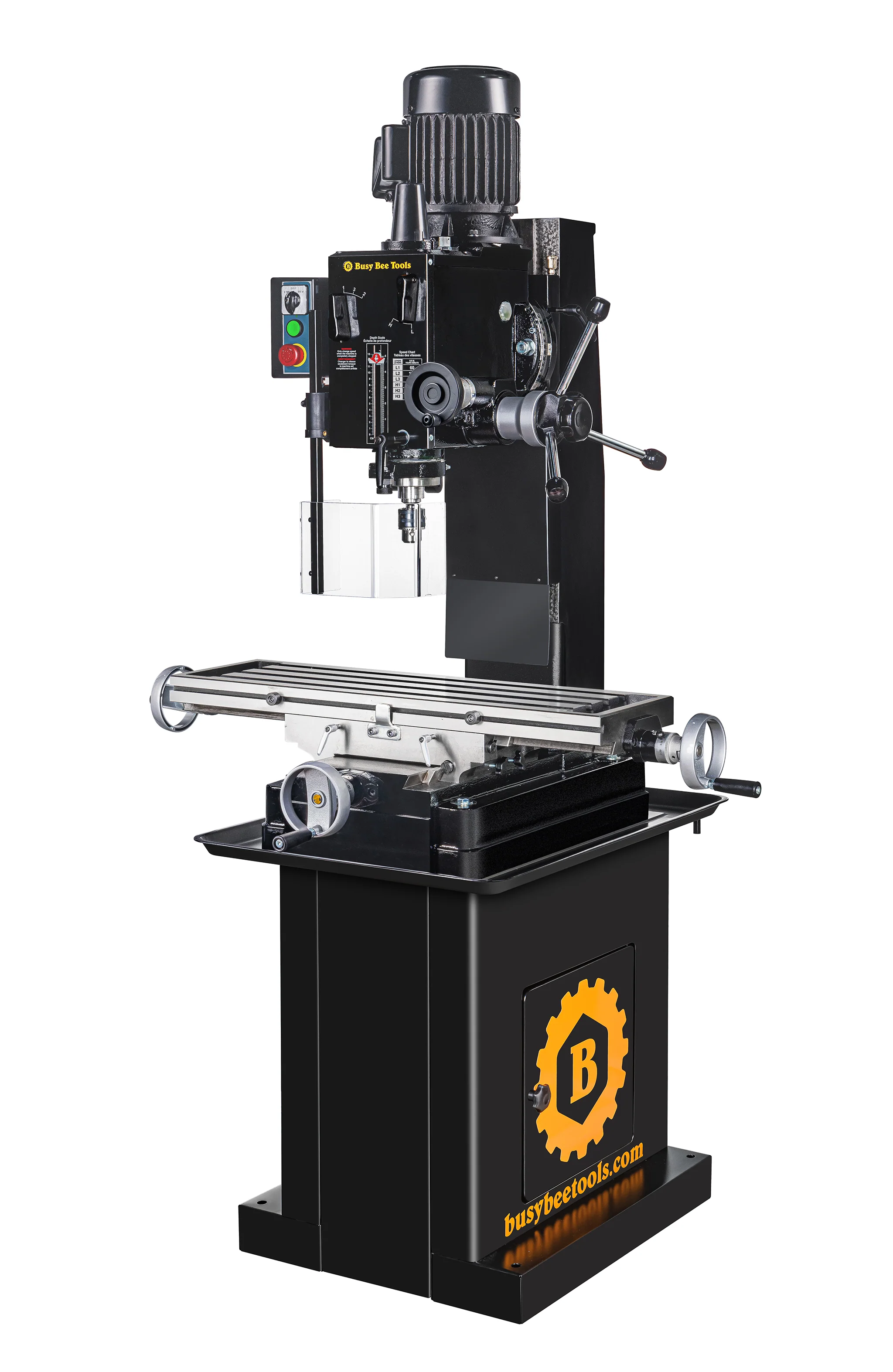

Take your machine to the next level with the optional BBMMSTAND, designed specifically for the BBMM45. It provides excellent working height, improved chip management, and a compact footprint without sacrificing performance or stability.
BBMM45 Image 4

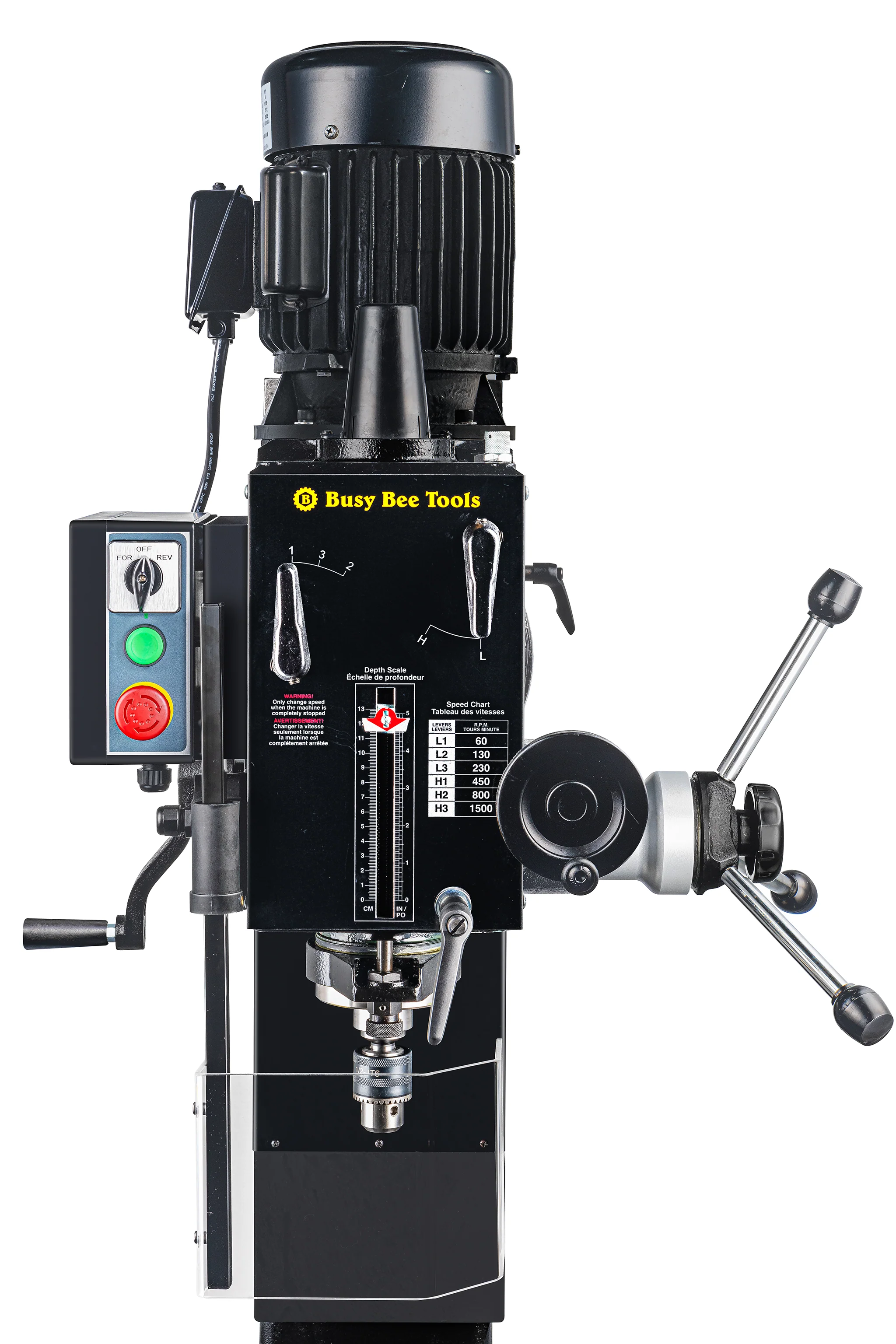

The gear-driven head delivers consistent torque with no belt slippage and reduced vibration. Forward and reverse controls combined with a magnetic safety switch provide confidence, safety, and precise control at the machine.
BBMM45 Image 5

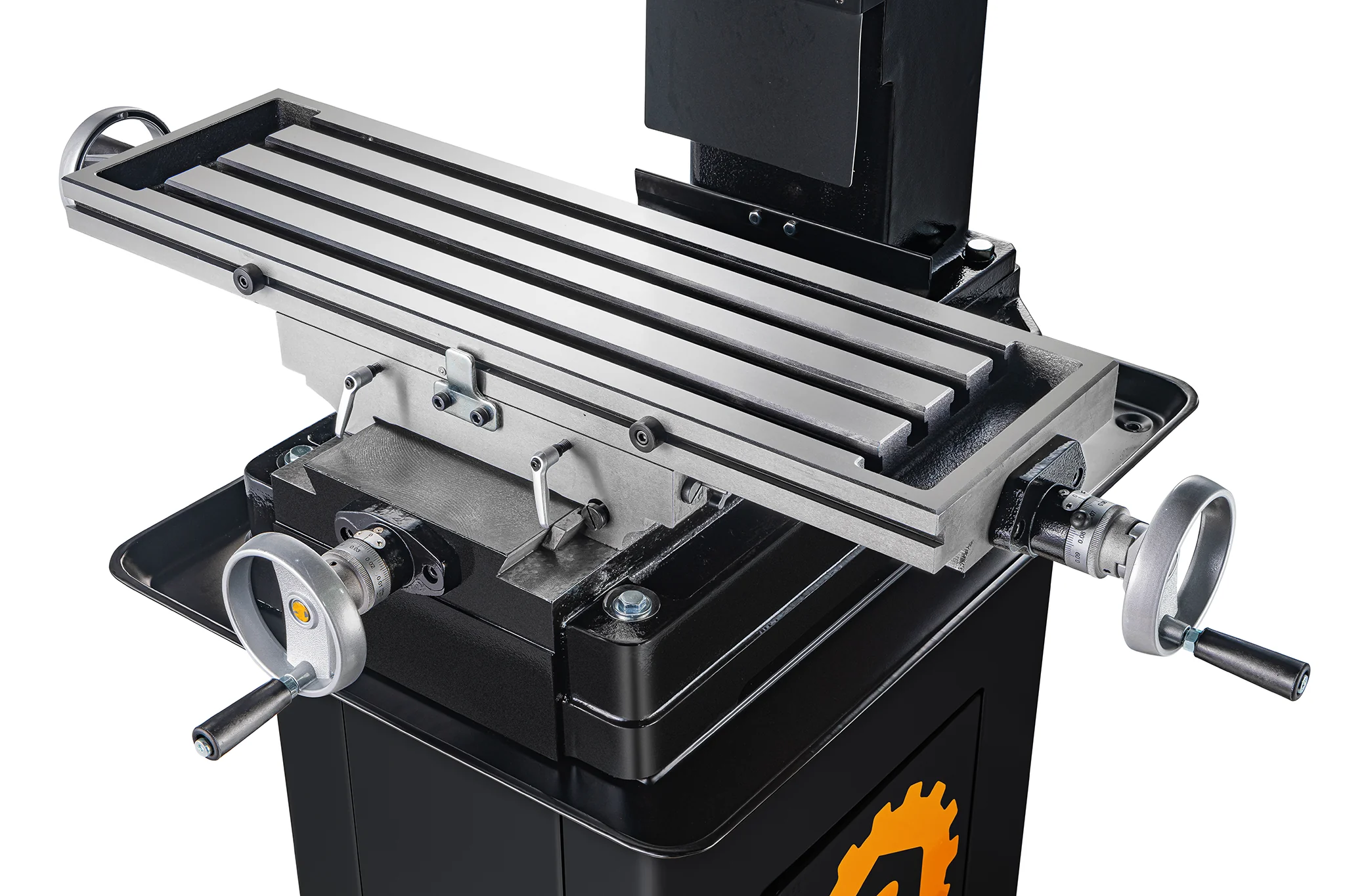

The spacious cast-iron table provides smooth, accurate travel in both axes. Large handwheels with fine graduations allow precise positioning for slotting, facing, drilling, and precision layout work.
BBMM45 Image 6
The tilting head allows angled drilling and milling operations without complex fixturing. This added flexibility expands the machine’s capability while maintaining rigidity and accuracy.
BBMM45 Spec Sheet

Designed for durability and high-precision performance, the Busy Bee Tools BBMM45 Premium Gearhead Milling Machine is engineered for demanding metalworking tasks in professional and industrial settings. Powered by a robust 1.5HP motor and equipped with an R8 spindle taper, this gear driven milling machine offers smooth and reliable operation across a wide speed range. The gearhead design allows for efficient torque transmission with minimal vibration, while the heavy-duty tapered roller bearings ensure stability during intensive milling. Key safety features, including a magnetic line interruption switch and safety guard with limit switch protection, make it a dependable choice for consistent operation. The BBMM45 also features large micrometer dials on the control hand wheels for precision work and includes essential tooling to get started. Compatible with the optional BBMILLSTAND for added support.

Features:

  • Gearhead drive system for enhanced torque and reduced vibration under load
  • Powerful 1.5HP, 220V motor supports demanding applications
  • R8 spindle taper allows compatibility with a wide range of tooling
  • Magnetic line interruption switch requires manual restart after power failure
  • Safety guard with integrated limit switch protection
  • Spindle supported by four heavy-duty tapered roller bearings for improved accuracy
  • Forward and reverse switch for increased versatility
  • Large micrometer dials on hand wheels, graduated in 0.001" for fine adjustments

Specifications:

  • Powerful 1.5HP, 220V, 1PH, 60HZ motor
  • Spindle Taper: R8
  • Cast Iron Table Size: 32.3” x 9.45”
  • Drilling capacity: 1 1/4"
  • Max. distance spindle nose to table: 18"
  • Swing: 20 7/16"
  • Spindle stroke: 5"
  • Speeds: 6 (60–1,500) RPM
  • Face mill capacity: 4"
  • End mill capacity: 1 1/4"
  • Max. longitudinal travel: 20 1/2"
  • Max. cross travel: 8 1/4"
  • Assembled Dimensions: 33 15/32" x 33 3/4" x 51 3/16", 316kgs (697 lbs)
  • Packaged Dimensions: 28 15/16" x 35 13/16" x 51 3/16" , approx. 353kgs (778 lbs)
  • Made in Taiwan

Comes With:

  • 3" face cutter
  • 3-1/2" angle vise
  • Safety guard
  • 2 year warranty



BBMM45 Image 1
The BBMM45 is a heavy-duty gearhead milling machine built for accuracy, rigidity, and long-term reliability. Its massive cast-iron structure and high-torque drive system deliver confident performance for demanding machining work.
BBMM45 Image 2
The oversized column and base provide exceptional stability and vibration damping. This rigid foundation ensures cleaner cuts, better finishes, and consistent accuracy even during heavy milling operations.
BBMM45 Image 3
Take your machine to the next level with the optional BBMMSTAND, designed specifically for the BBMM45. It provides excellent working height, improved chip management, and a compact footprint without sacrificing performance or stability.
BBMM45 Image 4
The gear-driven head delivers consistent torque with no belt slippage and reduced vibration. Forward and reverse controls combined with a magnetic safety switch provide confidence, safety, and precise control at the machine.
BBMM45 Image 5
The spacious cast-iron table provides smooth, accurate travel in both axes. Large handwheels with fine graduations allow precise positioning for slotting, facing, drilling, and precision layout work.
BBMM45 Image 6
The tilting head allows angled drilling and milling operations without complex fixturing. This added flexibility expands the machine’s capability while maintaining rigidity and accuracy.
BBMM45 Spec Sheet
$4,159.48
9" X 32" GEARHEAD MILLING DRILLING MACHINE—
$4,159.48

Description

Designed for durability and high-precision performance, the Busy Bee Tools BBMM45 Premium Gearhead Milling Machine is engineered for demanding metalworking tasks in professional and industrial settings. Powered by a robust 1.5HP motor and equipped with an R8 spindle taper, this gear driven milling machine offers smooth and reliable operation across a wide speed range. The gearhead design allows for efficient torque transmission with minimal vibration, while the heavy-duty tapered roller bearings ensure stability during intensive milling. Key safety features, including a magnetic line interruption switch and safety guard with limit switch protection, make it a dependable choice for consistent operation. The BBMM45 also features large micrometer dials on the control hand wheels for precision work and includes essential tooling to get started. Compatible with the optional BBMILLSTAND for added support.

Features:

  • Gearhead drive system for enhanced torque and reduced vibration under load
  • Powerful 1.5HP, 220V motor supports demanding applications
  • R8 spindle taper allows compatibility with a wide range of tooling
  • Magnetic line interruption switch requires manual restart after power failure
  • Safety guard with integrated limit switch protection
  • Spindle supported by four heavy-duty tapered roller bearings for improved accuracy
  • Forward and reverse switch for increased versatility
  • Large micrometer dials on hand wheels, graduated in 0.001" for fine adjustments

Specifications:

  • Powerful 1.5HP, 220V, 1PH, 60HZ motor
  • Spindle Taper: R8
  • Cast Iron Table Size: 32.3” x 9.45”
  • Drilling capacity: 1 1/4"
  • Max. distance spindle nose to table: 18"
  • Swing: 20 7/16"
  • Spindle stroke: 5"
  • Speeds: 6 (60–1,500) RPM
  • Face mill capacity: 4"
  • End mill capacity: 1 1/4"
  • Max. longitudinal travel: 20 1/2"
  • Max. cross travel: 8 1/4"
  • Assembled Dimensions: 33 15/32" x 33 3/4" x 51 3/16", 316kgs (697 lbs)
  • Packaged Dimensions: 28 15/16" x 35 13/16" x 51 3/16" , approx. 353kgs (778 lbs)
  • Made in Taiwan

Comes With:

  • 3" face cutter
  • 3-1/2" angle vise
  • Safety guard
  • 2 year warranty



BBMM45 Image 1
The BBMM45 is a heavy-duty gearhead milling machine built for accuracy, rigidity, and long-term reliability. Its massive cast-iron structure and high-torque drive system deliver confident performance for demanding machining work.
BBMM45 Image 2
The oversized column and base provide exceptional stability and vibration damping. This rigid foundation ensures cleaner cuts, better finishes, and consistent accuracy even during heavy milling operations.
BBMM45 Image 3
Take your machine to the next level with the optional BBMMSTAND, designed specifically for the BBMM45. It provides excellent working height, improved chip management, and a compact footprint without sacrificing performance or stability.
BBMM45 Image 4
The gear-driven head delivers consistent torque with no belt slippage and reduced vibration. Forward and reverse controls combined with a magnetic safety switch provide confidence, safety, and precise control at the machine.
BBMM45 Image 5
The spacious cast-iron table provides smooth, accurate travel in both axes. Large handwheels with fine graduations allow precise positioning for slotting, facing, drilling, and precision layout work.
BBMM45 Image 6
The tilting head allows angled drilling and milling operations without complex fixturing. This added flexibility expands the machine’s capability while maintaining rigidity and accuracy.
BBMM45 Spec Sheet
