A high performance solution for both drilling and milling tasks, the Busy Bee Tools BBMM31 8" x 29" Premium Milling Drilling Machine delivers precision, power, and versatility for professional workshops. Equipped with a robust 2HP motor and R8 spindle taper, this machine supports a range of demanding metalworking applications. The table offers ample working space, and the spindle is supported by heavy-duty tapered roller bearings to ensure consistent accuracy under load. With features like a magnetic line interruption switch, safety guards with limit switch protection, and large micrometer dials for fine adjustments, this milling machine is engineered for reliable and safe operation.

Also available with power feed (model # BBMM31PF), and compatible with the optional stand (model # BBMILLSTAND) for added convenience.

Features:

• 2HP, 220V premium motor designed for consistent and reliable milling performance
• R8 spindle taper supports a wide range of tool compatibility
• Safety guard and pulley cover equipped with limit switch protection
• Magnetic line interruption switch requires manual restart after power loss for added safety
• Four heavy-duty tapered roller bearings in spindle assembly for precision and durability
• Large micrometer dials on table control hand wheels, graduated in 0.001" for accurate measurements
• 360° swiveling head for flexible positioning and operation
• Head is easily adjustable for varied workpiece heights

Specifications:

• Powerful 2HP, 220V, 1PH, 60HZ motor
• Spindle Taper: R8
• Cast Iron Table Size: 28.7” x 8 1/4"
• Drilling capacity: 1 1/4”
• Max. Distance spindle nose to table: 18 7/8”
• Swing: 16 ½”
• Spindle stroke: 5”
• Diameter of column: 4 ¾”
• Speeds: 12 (150–2,500) RPM
• Face mill capacity: 3”
• End mill capacity: 3/4”
• Max. longitudinal travel: 17”
• Cross travel: 7 1/4”
• Size of T-slot on table: 5/8”
• Assembled Dimensions: 39 3/8"x 30 5/16" x 42 1/8"), 225kgs (497 lbs)
• Packaged Dimensions: 32 11/16"x 29 15/16" x 48", approx.. 248 kgs (547 lbs)
• Made in Taiwan

Comes With:

• 3” face cutter
• 1/2" chuck with key
• 3 1/2” angle vise
• Safety guard
• Product manual
• 2 year warranty

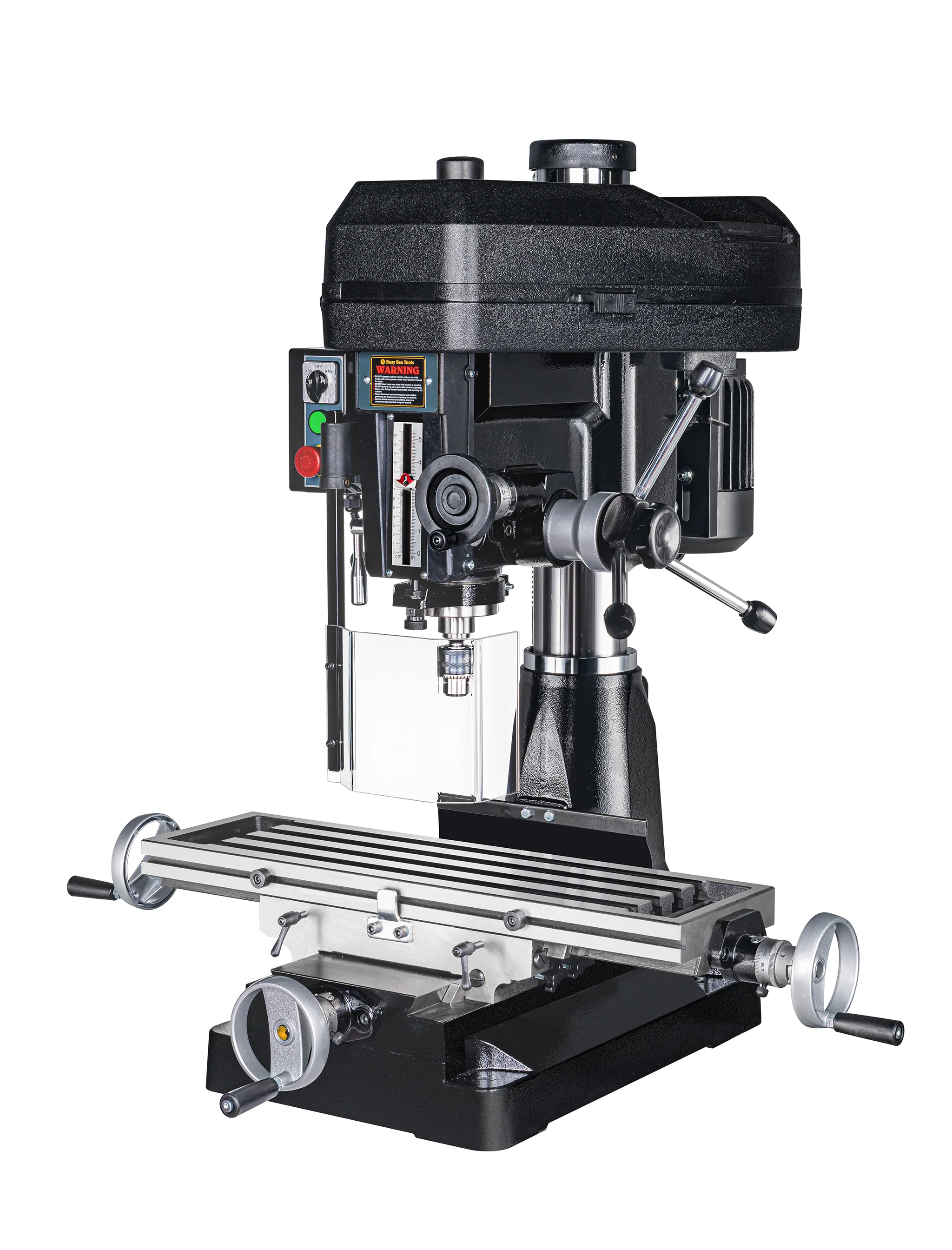

The BBMM31 Premium Milling Drilling Machine is built around a powerful 2HP motor, heavy cast iron construction, and an R8 spindle for serious metalworking performance. With generous table size, rigid column, and smooth controls, this machine is designed to deliver accurate results job after job.

The 2HP, 220V motor delivers consistent torque across the full speed range, making light work of drilling, face milling, and end milling operations. The robust belt-driven head and heavy-duty construction ensure smooth, vibration-free performance even under load.

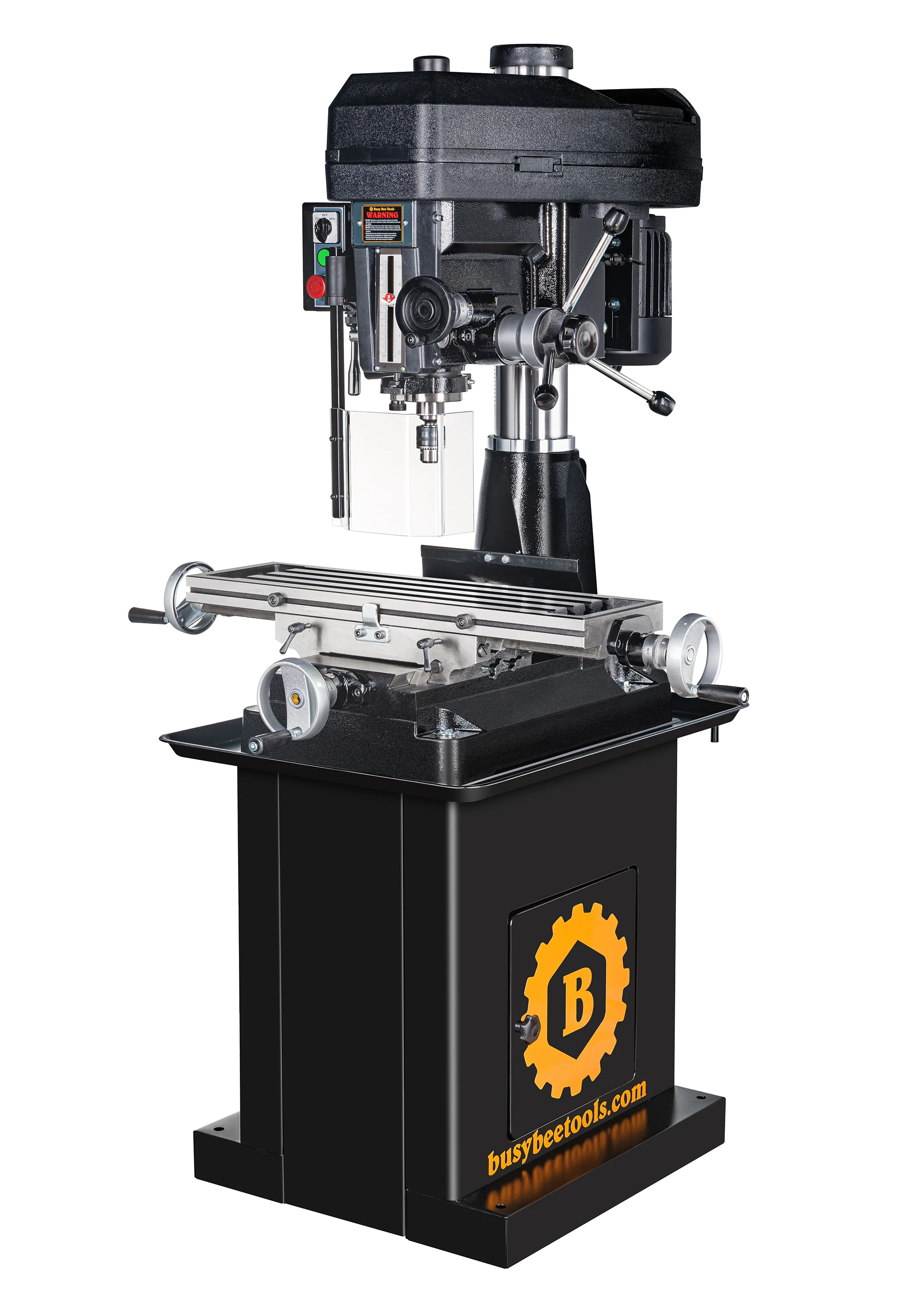

When paired with the optional stand, the BBMM31 becomes a stable, space-efficient milling workstation with excellent ergonomics and working height. This setup is ideal for serious hobbyists, prototyping shops, and light production environments.

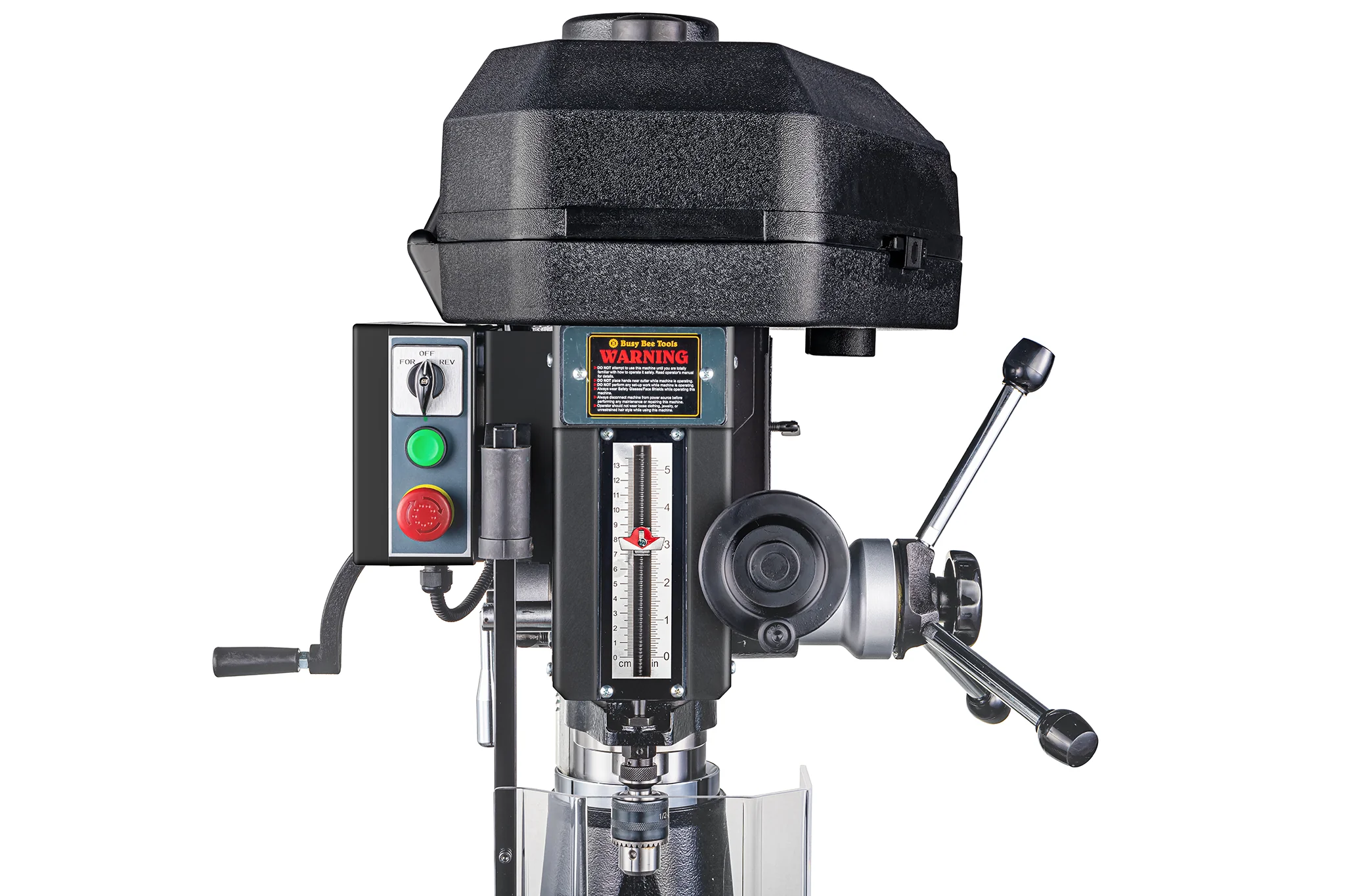

Large, easy-to-read micrometer dials graduated to 0.001" give you precise control over every movement. The machine is equipped with a magnetic safety switch and limit-switch protected guards to ensure safe operation in professional environments.

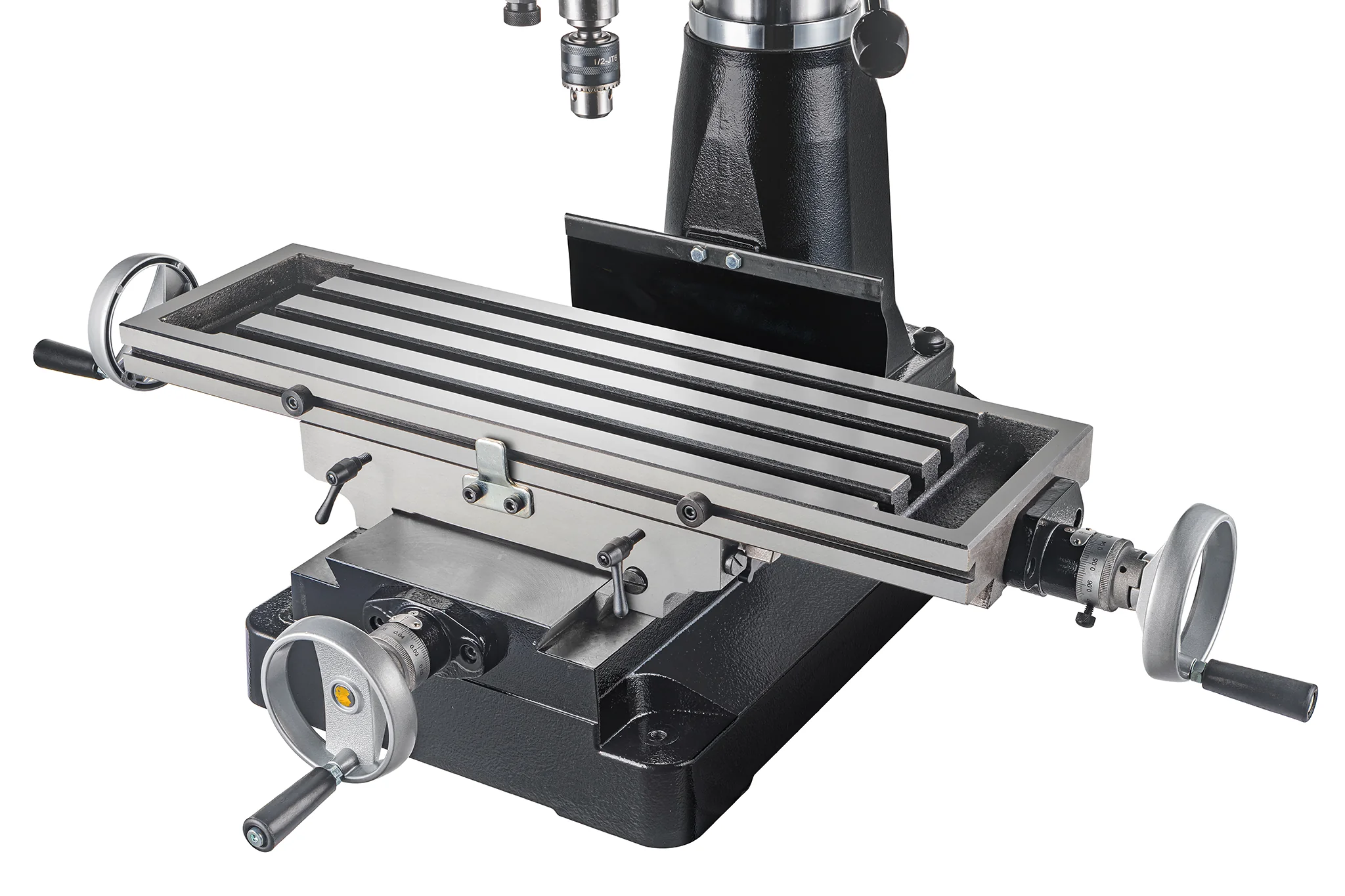

The precision-ground cast iron table provides ample working space and features large handwheels for smooth, controlled travel in all axes. With 17" of longitudinal travel and 7-1/4" cross travel, you have the flexibility to handle a wide range of setups.

The head can rotate a full 360 degrees and is easily adjustable for height, allowing you to tackle angled drilling and milling operations with ease. This flexibility makes the BBMM31 ideal for complex parts, fixtures, and custom work.

The 12-speed pulley system gives you a wide RPM range from 150 to 2,500 RPM, allowing you to match spindle speed perfectly to the material and cutter. The heavy-duty tapered roller bearing spindle assembly ensures smooth, accurate rotation and long service life.
