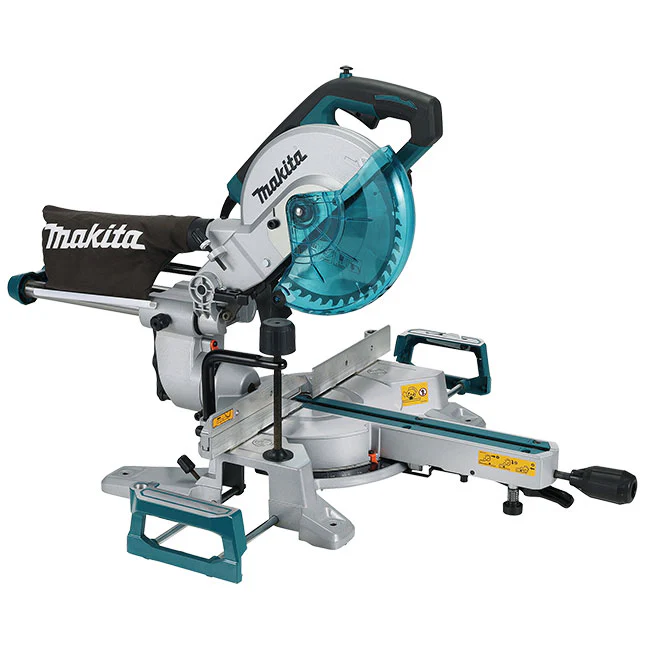

8-1/2" SLIDING COMPOUND MITRE SAW W/LED

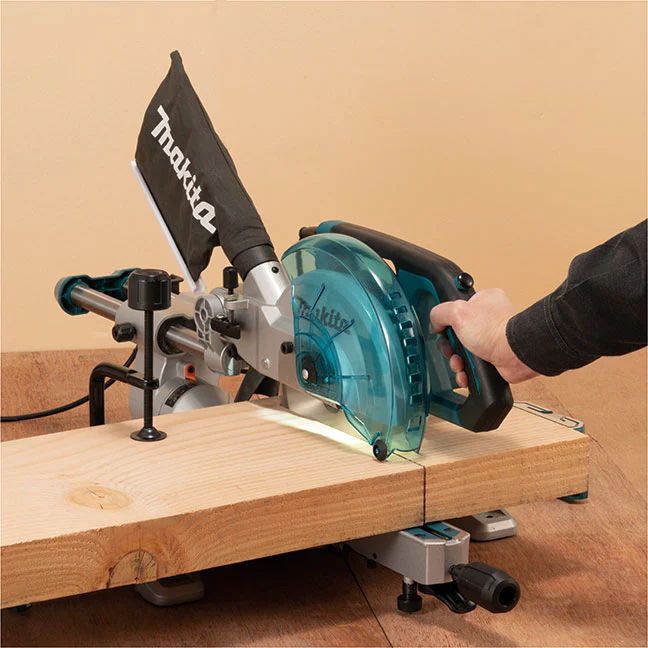

The LS0816F is a powerful electric 8-1/2" sliding compound mitre saw featuring an LED light with a cut line guide function for precision. This tool offers a high cutting capacity and efficient dust extraction, making it ideal for various carpentry tasks, including baseboard and crown molding installation, cabinetry, wood flooring, and more.
Key Features:

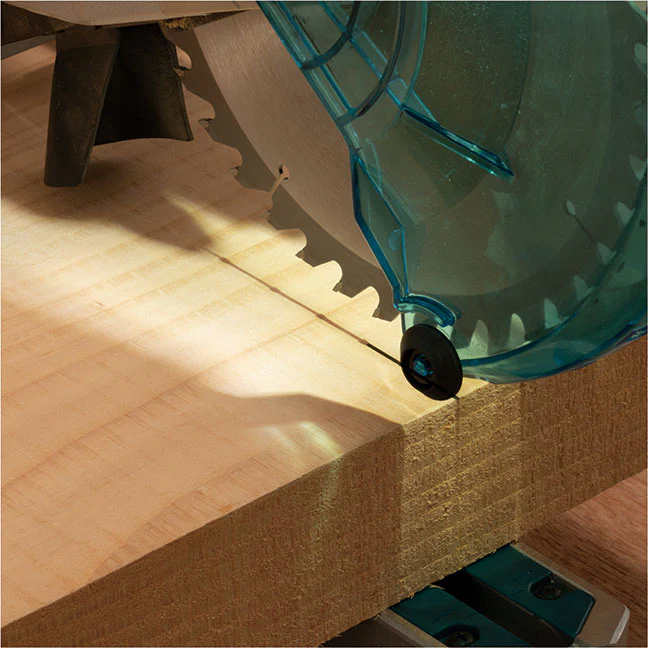

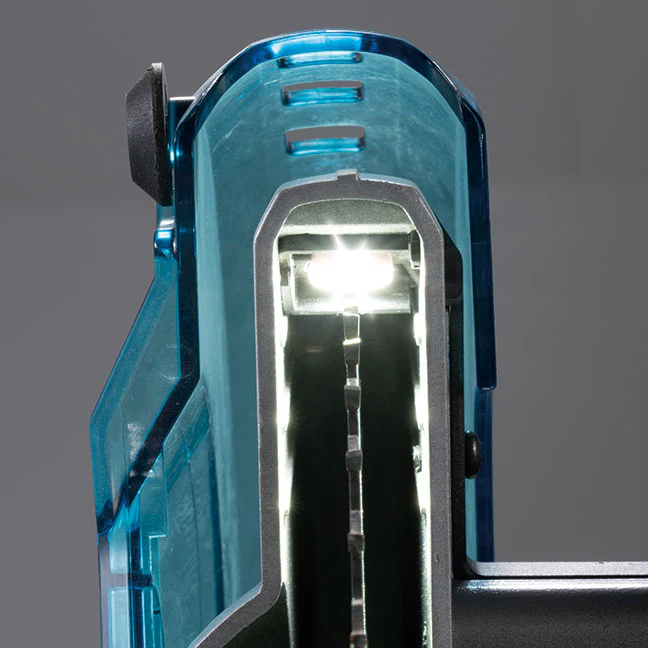

- LED Cut Line Guide Function: Projects an accurate shadow of the saw blade onto the workpiece for precise cuts.
- High Cutting Capacity: Cuts up to 12” at 90° and 8-1/2” at 45°.
- Efficient Dust Extraction: Can connect directly to a Makita vacuum cleaner for a cleaner workspace.
- Direct Drive Motor: Powerful 5,000 RPM motor that requires less maintenance.
- Slide Style Sub Fence: Provides support for cutting wide workpieces.
- Soft Start Feature: Ensures smooth start-ups, reducing stress on the motor.
- Carrying Handle: Makes transportation to job sites easy.
Specifications:
- Blade Diameter: 8-1/2" (216 mm)
- Arbor: 5/8" (15.88 mm)
- No Load Speed: 5,000 RPM
- Amperage: 10.5 A (120V)
- Vibration Level: 2.5 m/s²
- Noise Level: 91 dB(A)
- Dimensions (L x W x H): 18-3/4" x 27-3/4" x 20-1/2" (476 mm x 705 mm x 521 mm)
- Net Weight: 30.6 lbs (13.9 kg)
Accessories Included:
- 8-1/2" C.T. Blade 40T
- Hex Wrench
- Dust Bag
- Vertical Vise
The LS0816F is a powerful electric 8-1/2" sliding compound mitre saw featuring an LED light with a cut line guide function for precision. This tool offers a high cutting capacity and efficient dust extraction, making it ideal for various carpentry tasks, including baseboard and crown molding installation, cabinetry, wood flooring, and more.
Key Features:
- LED Cut Line Guide Function: Projects an accurate shadow of the saw blade onto the workpiece for precise cuts.
- High Cutting Capacity: Cuts up to 12” at 90° and 8-1/2” at 45°.
- Efficient Dust Extraction: Can connect directly to a Makita vacuum cleaner for a cleaner workspace.
- Direct Drive Motor: Powerful 5,000 RPM motor that requires less maintenance.
- Slide Style Sub Fence: Provides support for cutting wide workpieces.
- Soft Start Feature: Ensures smooth start-ups, reducing stress on the motor.
- Carrying Handle: Makes transportation to job sites easy.
Specifications:
- Blade Diameter: 8-1/2" (216 mm)
- Arbor: 5/8" (15.88 mm)
- No Load Speed: 5,000 RPM
- Amperage: 10.5 A (120V)
- Vibration Level: 2.5 m/s²
- Noise Level: 91 dB(A)
- Dimensions (L x W x H): 18-3/4" x 27-3/4" x 20-1/2" (476 mm x 705 mm x 521 mm)
- Net Weight: 30.6 lbs (13.9 kg)
Accessories Included:
- 8-1/2" C.T. Blade 40T
- Hex Wrench
- Dust Bag
- Vertical Vise
Description
The LS0816F is a powerful electric 8-1/2" sliding compound mitre saw featuring an LED light with a cut line guide function for precision. This tool offers a high cutting capacity and efficient dust extraction, making it ideal for various carpentry tasks, including baseboard and crown molding installation, cabinetry, wood flooring, and more.
Key Features:
- LED Cut Line Guide Function: Projects an accurate shadow of the saw blade onto the workpiece for precise cuts.
- High Cutting Capacity: Cuts up to 12” at 90° and 8-1/2” at 45°.
- Efficient Dust Extraction: Can connect directly to a Makita vacuum cleaner for a cleaner workspace.
- Direct Drive Motor: Powerful 5,000 RPM motor that requires less maintenance.
- Slide Style Sub Fence: Provides support for cutting wide workpieces.
- Soft Start Feature: Ensures smooth start-ups, reducing stress on the motor.
- Carrying Handle: Makes transportation to job sites easy.
Specifications:
- Blade Diameter: 8-1/2" (216 mm)
- Arbor: 5/8" (15.88 mm)
- No Load Speed: 5,000 RPM
- Amperage: 10.5 A (120V)
- Vibration Level: 2.5 m/s²
- Noise Level: 91 dB(A)
- Dimensions (L x W x H): 18-3/4" x 27-3/4" x 20-1/2" (476 mm x 705 mm x 521 mm)
- Net Weight: 30.6 lbs (13.9 kg)
Accessories Included:
- 8-1/2" C.T. Blade 40T
- Hex Wrench
- Dust Bag
- Vertical Vise
