Gold Certified Refurbished Machine.
Available instore at Concord Store.
Display/Demo Model - Fully Operational/Good Condition
May not be exactly as pictured. Final Sale, As Is, No Warranty.

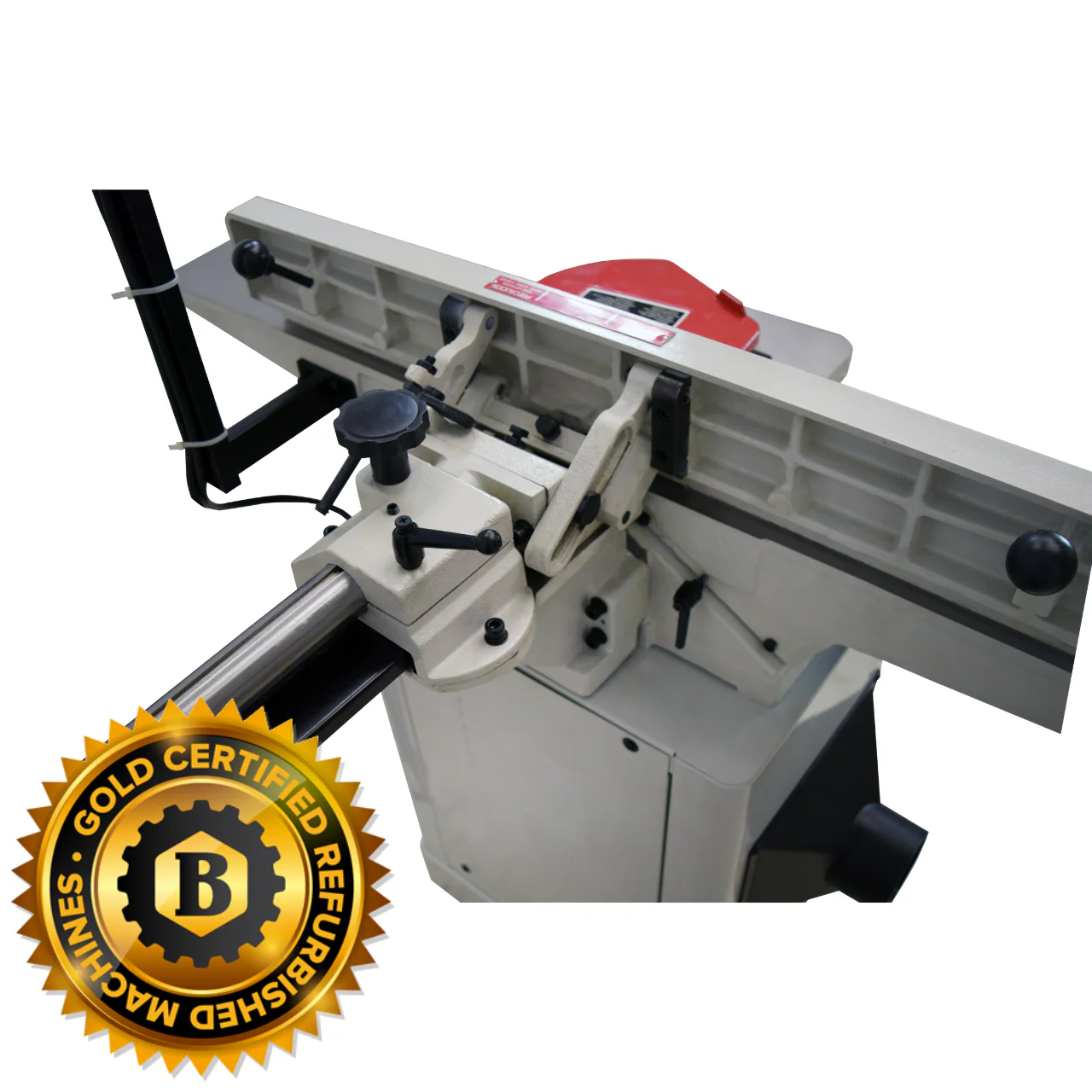

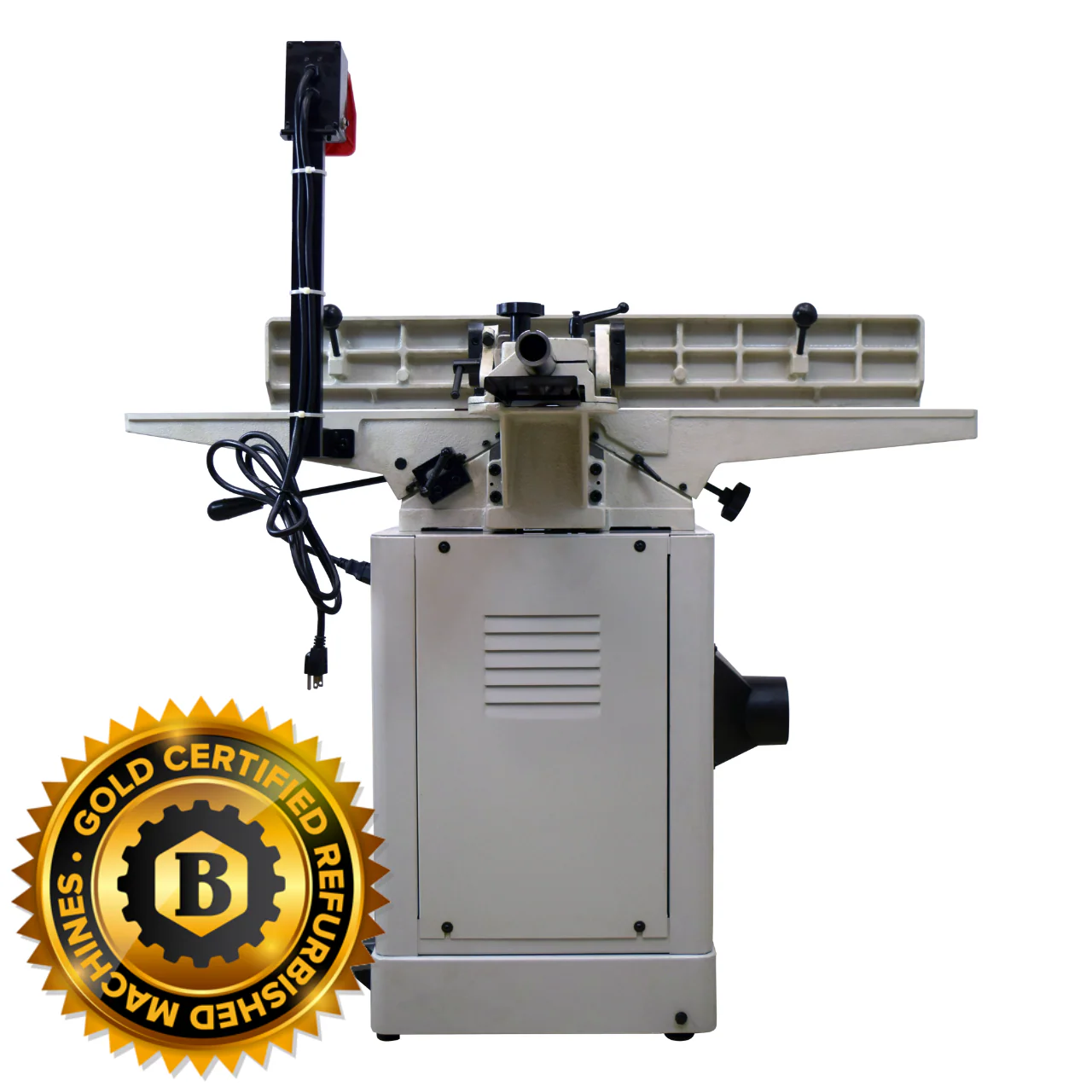

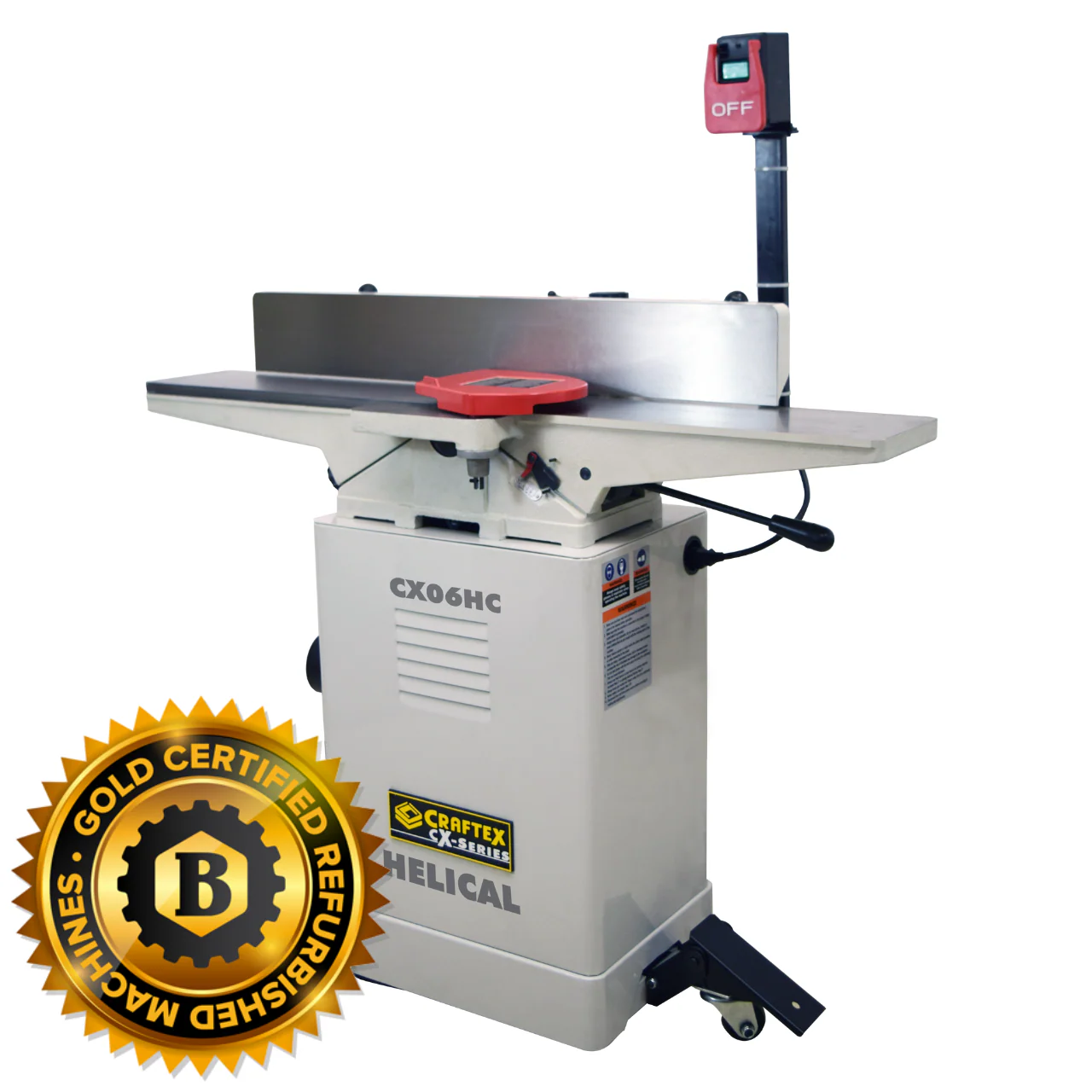

The CX06HC 6” Helical Jointer is a well equipped machine with its independently adjustable precision ground infeed and outfeed tables and dovetailed adjustable ways and. This machine is equipped with a helical cutterhead containing 30 four sided carbide inserts for a clean and smooth cut superior to that of a straight knife cutterhead. Chipped insert are not problem, simply just back of the hex head screw and rotate 90° to reveal a fresh new sharp edge without the need for having to set your blades. This jointer is powered by a powerful 1 HP TEFC capacitor start induction motor for soft starts providing longer motor life and superior dependability. This machine is great for all milling and jointing applications with its durable cast iron fence assembly ensuring accurate cutting operations.

Features:

Dovetailed ways

Powerful 1 HP TEFC capacitor start induction motor

Precision ground independently adjustable infeed/outfeed tables

Cast iron fence assembly

Specifications:

Table Size: 6” W x 46” L

Table Height: 32-1/2”

Overall length: 46”

Overall Width: 27-1/2”

Shipping Weight: 80 kg

Net Weight: 74 kg

Box 1 Size: 48-1/2” x 21” x15”

Box 2 Size: 20-1/2” x 15-3/4” x 28-3/4”

Foot Print: 18” x 13-1/2”

Cutterhead Type: Helical

Number of Inserts: 30 Carbide inserts

Cutterhead Diameter: 2-1/2”

Cutterhead Speed: 4800 RPM

Cuts Per Minute: 14,400

Tables: independently Adjustable, Precision Ground Cast Iron

Stand: Preformed Steel

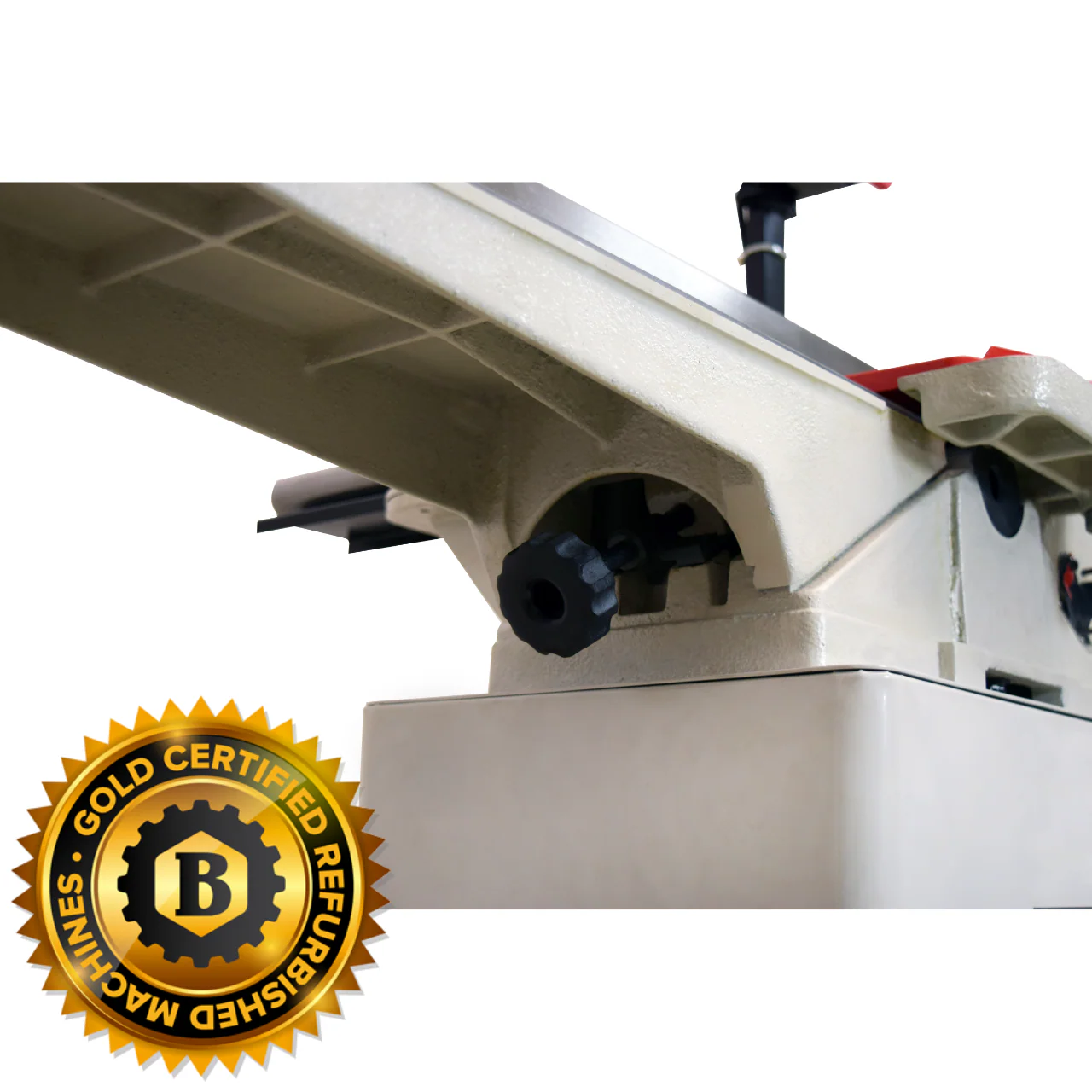

Ways: Dovetailed, Adjustable

Fence Assembly: Cast Iron

Body Assembly: Cast iron

Base: One Piece Steel Cabinet

Guard: Die Cast Metal

Bearings: Sealed & Permanently Lubricated

Motor:

Type TEFC: TEFC Capacitor Start Induction

Horsepower: 1 HP

Phase / Voltage: Single – 110Volt

Amps: 14A

Cycle / RPM: 60 Hertz / 3450 RPM

Power Transfer: V-Belt Drive

Bearings: Sealed & Lubricated Ball Bearings

Fence: Center Mounted, Positive Stops at 45 Deg & 90 Deg.

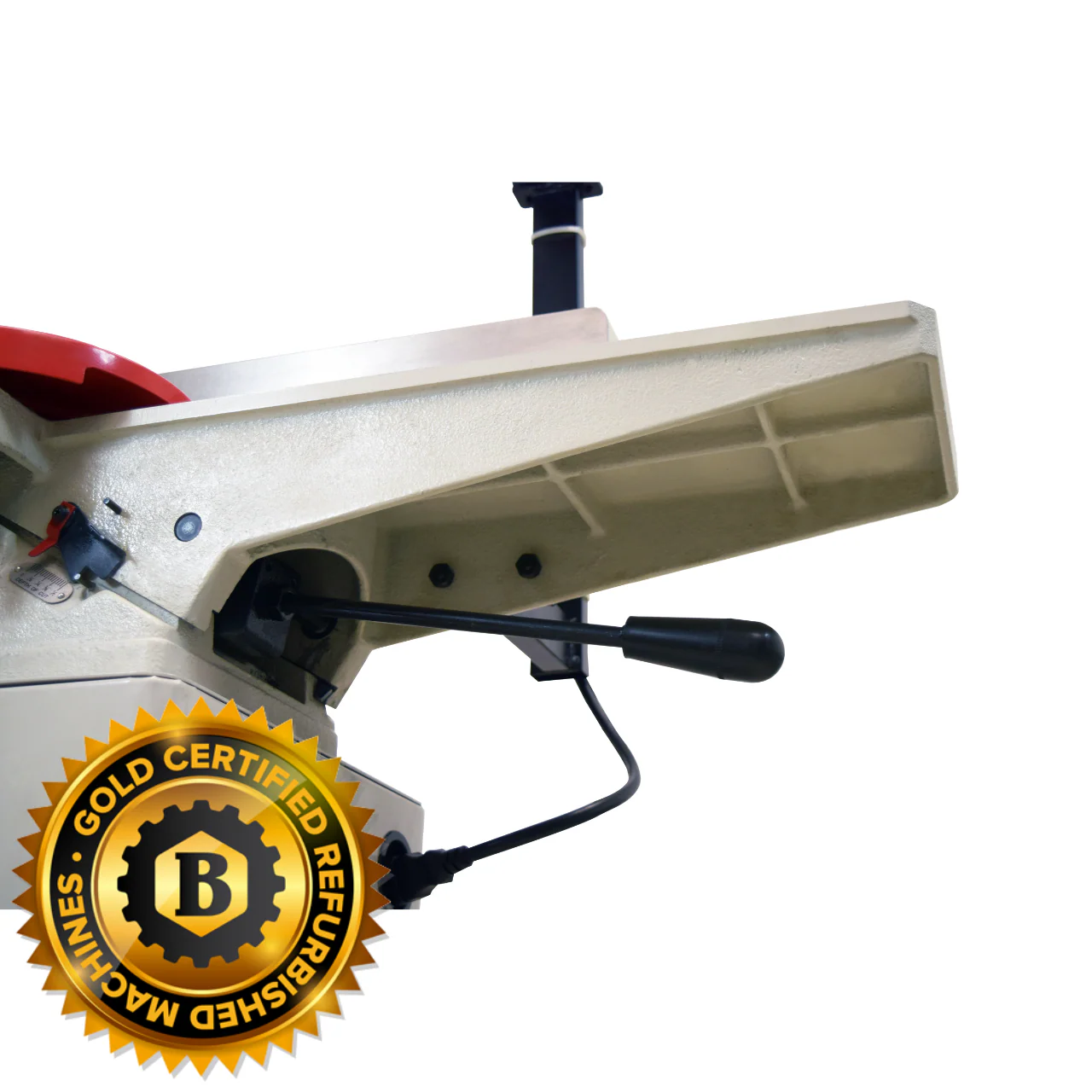

Table Movement: Handwheel/Lever and infeed & Outfeed tables with ½” Rabbeting Capacity Built-In
