The CX708CHUCK3 is a heavy-duty, 3-jaw self-centering chuck designed for precision clamping in turning applications. With hardened steel jaws and a solid manual operation, this chuck is ideal for metal lathes and general-purpose turning. The self-centering design ensures fast and accurate setup, while interchangeable internal and external jaws offer a wide clamping range for various workpiece sizes.

Features:

• 3-jaw self-centering mechanism for quick and accurate centering

• Manual operation for full control during setup

• Short cylindrical center mounting for versatile lathe compatibility

• Supplied with both internal and external jaws for flexible clamping

• Made from high-strength, hardened steel for increased durability

• Suitable for light to medium-duty machining applications

• Traditional K11-style with reliable two-piece jaw system

Specifications:

• Chuck type: 3-Jaw Self-Centering

• Max RPM: 3000 r/min

• Operation: Manual

• Jaw material: Hardened steel

• Mounting: Short cylindrical center mount

• Jaw type: One-piece internal and external jaws (K11 model)

Clamping Capacities:

• Internal Jaw Clamping Range (A–A1): 2.5 – 40 mm

• Internal Jaw Jamming Range (B–B1): 38 – 125 mm

• External Jaw Clamping Range (C–C1): 38 – 110 mm

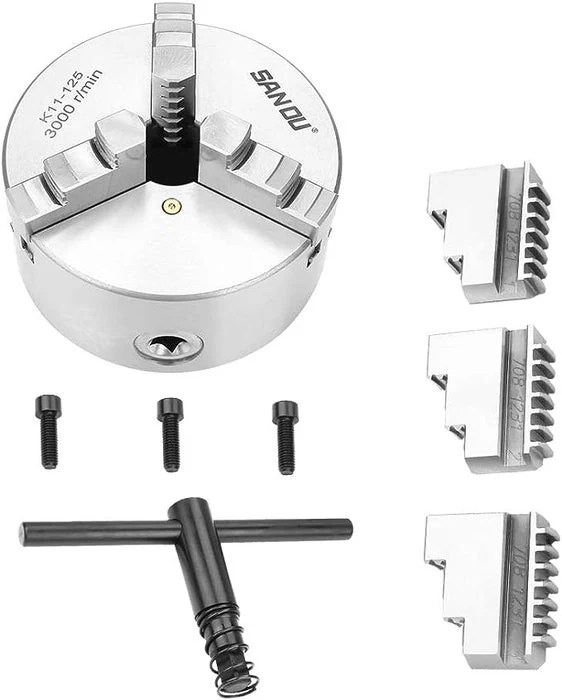

Comes With:

• 1 x Self-centering chuck body

• 3 x Internal jaws (inside jaws)

• 3 x External jaws (outside jaws, large)

• 1 x Safety chuck key

• 3 x Mounting bolts
