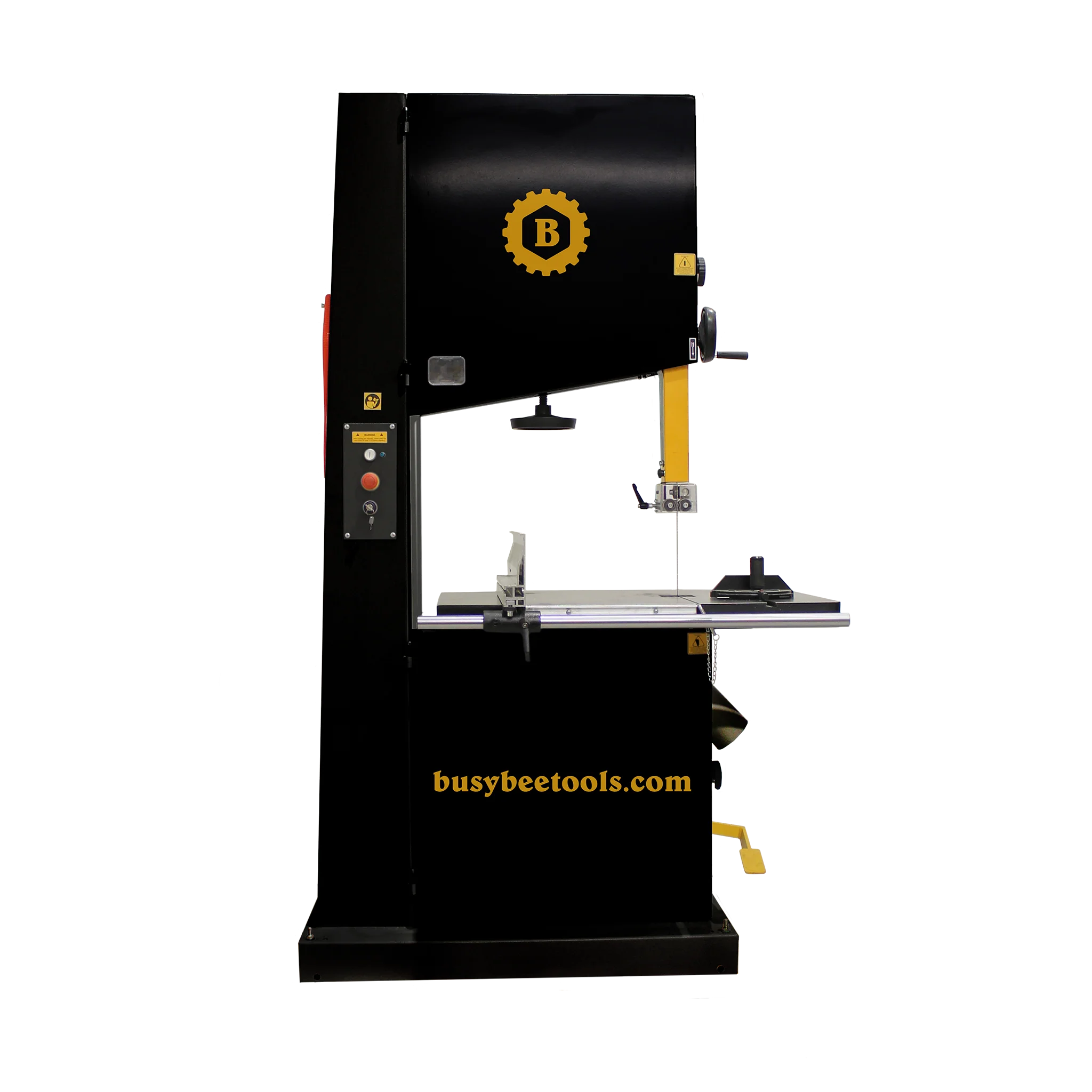

24" HEAVY DUTY BANDSAW 5HP BBPBS24
The BBPBS24 Deluxe Pro Bandsaw is a high-performance machine designed for precision and durability. With a powerful 5 HP motor, a spacious cutting capacity, and dual blade speeds, this bandsaw is perfect for professional woodworkers and serious hobbyists. Whether you're resawing large lumber, making intricate cuts, or handling heavy-duty projects, the BBPBS24 delivers smooth, accurate results.
Features
- Powerful 5 HP Motor – Delivers consistent performance for heavy-duty cutting.
- Dual Blade Speeds (2300/4400 SFPM) – Adjust the speed for different materials and cutting applications.
- Spacious Cutting Capacity – 22-13/16” throat width and 14-1/16” resaw capacity for large workpieces.
- Large Cast Iron Table – Provides a stable and durable surface for precise cuts.
- Adjustable Blade Guides – Ensures smooth operation and reduces blade deflection.
- Heavy-Duty 24-inch Cast Iron Wheels – Improves stability and enhances performance.
- Low Noise Operation (72 dB) – Runs quietly, even under load.
- Efficient Dust Collection – 4-inch dust port helps maintain a clean workspace.
Specifications
- Power rating: 230Volt, 60Hz, single phase
- Motor: 5 HP
- Full Load Amps: 22 Amp
- Running Amps (No load): 9 Amps
- Motor Speed: 1720 RPM
- Blade Speed: 4920 ft/min (1499 m/min)
- Sound Pressure Level: 90 dB (load)
- Sound Power Level: 100dB (Load)
- Table Size: 27-9/16”X24” (700X608 mm)
- Resaw Capacity: 14-1/16”
- Throat Capacity: 22-13/16”
- Min. Blade Width: 3/8”
- Max. Blade Width: 1-3/8”
- Blade Length: 176” ± ½” (4470mm)
- Wheel diameter: 24”
- Dust Port Diameter: 4” (2 Ports)
- Packaging Size: .44-1/16”X30-5/8”X85-1/16” (1119X777X2160 mm)
- Net Weight: 723lbs (328Kg)
Comes With
- Heavy-duty stand for stability
- Pre-installed blade
- Blade tensioning system
- Adjustable rip fence
- Precision miter gauge
- User manual and assembly guide
- 2 Year Warranty
24" Cutting Capacity: Cut large panels and tough lumber effortlessly with a 24" cutting capacity, designed for professional-level performance.

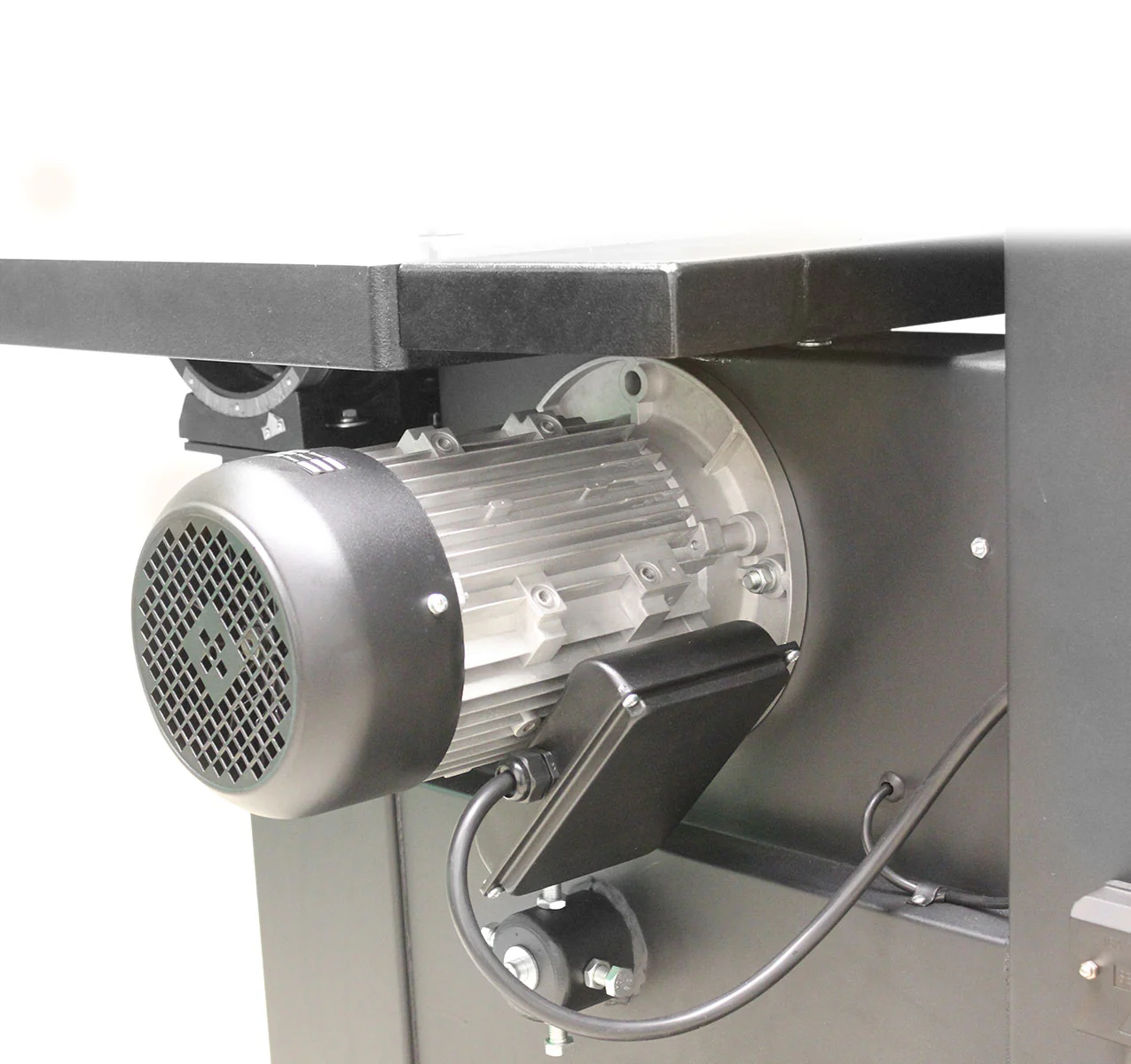

5 HP 1-Phase Motor: Tackle the toughest materials with ease, thanks to the powerful 5 HP motor, built for demanding tasks.

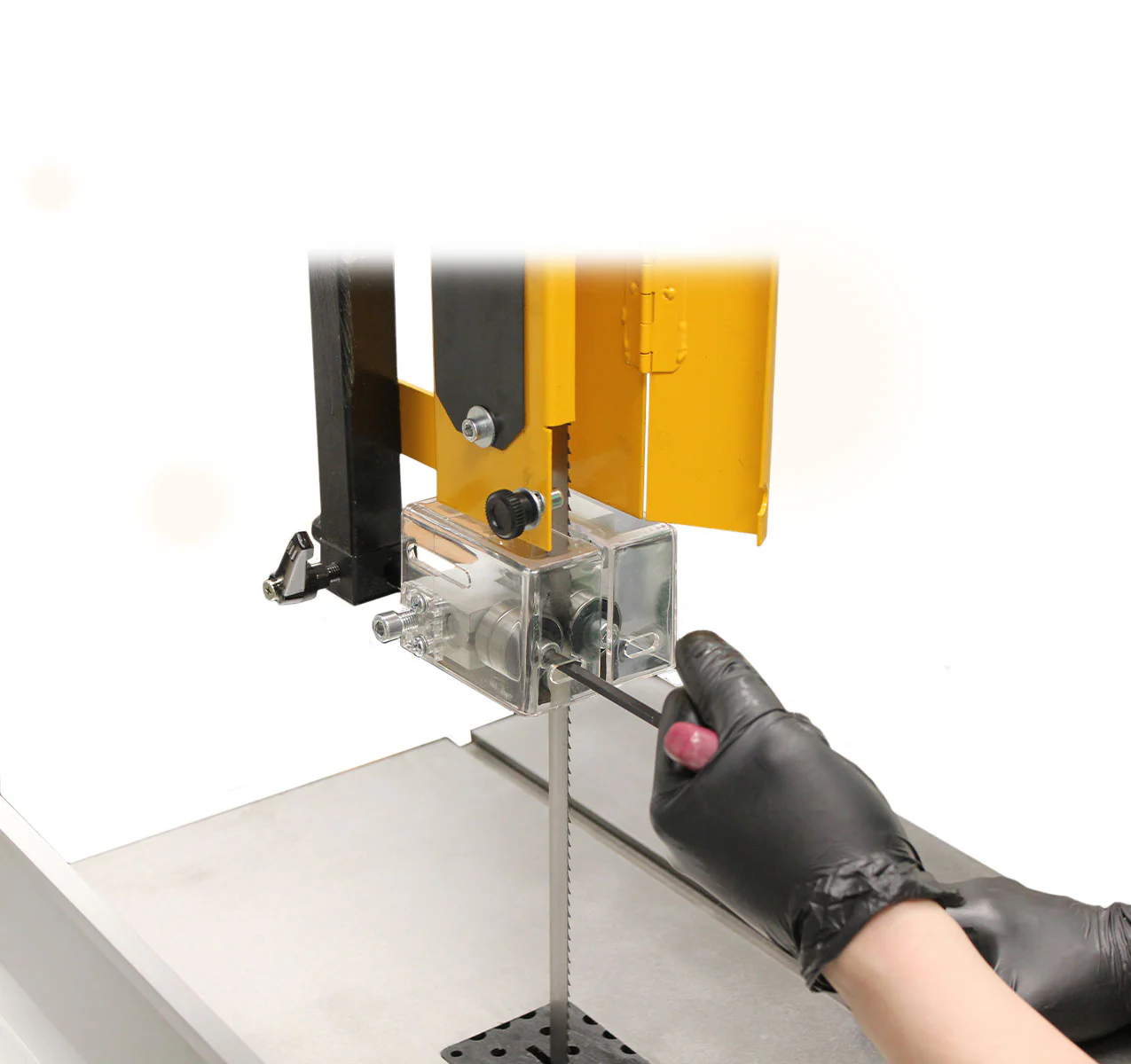

Tool-less Blade Guides: Effortlessly adjust blade guides with no tools required for quick, hassle-free changes.
Foot Pedal Brake System: Quickly slow or stop the saw when needed with the convenient foot pedal brake.
Rack & Pinion Table Angle & Guide Adjustments: Easily adjust table angles and guides for precise cuts, thanks to the rack and pinion system.
Large Cast Iron Table with 3/4" x 3/8" Miter Slot: Work on a stable, durable, and large machined cast iron table with a precision miter slot for accurate cuts.
Dual 4" Dust Collection Ports: Keep your workspace clean with dual 4" dust collection ports for efficient dust management.

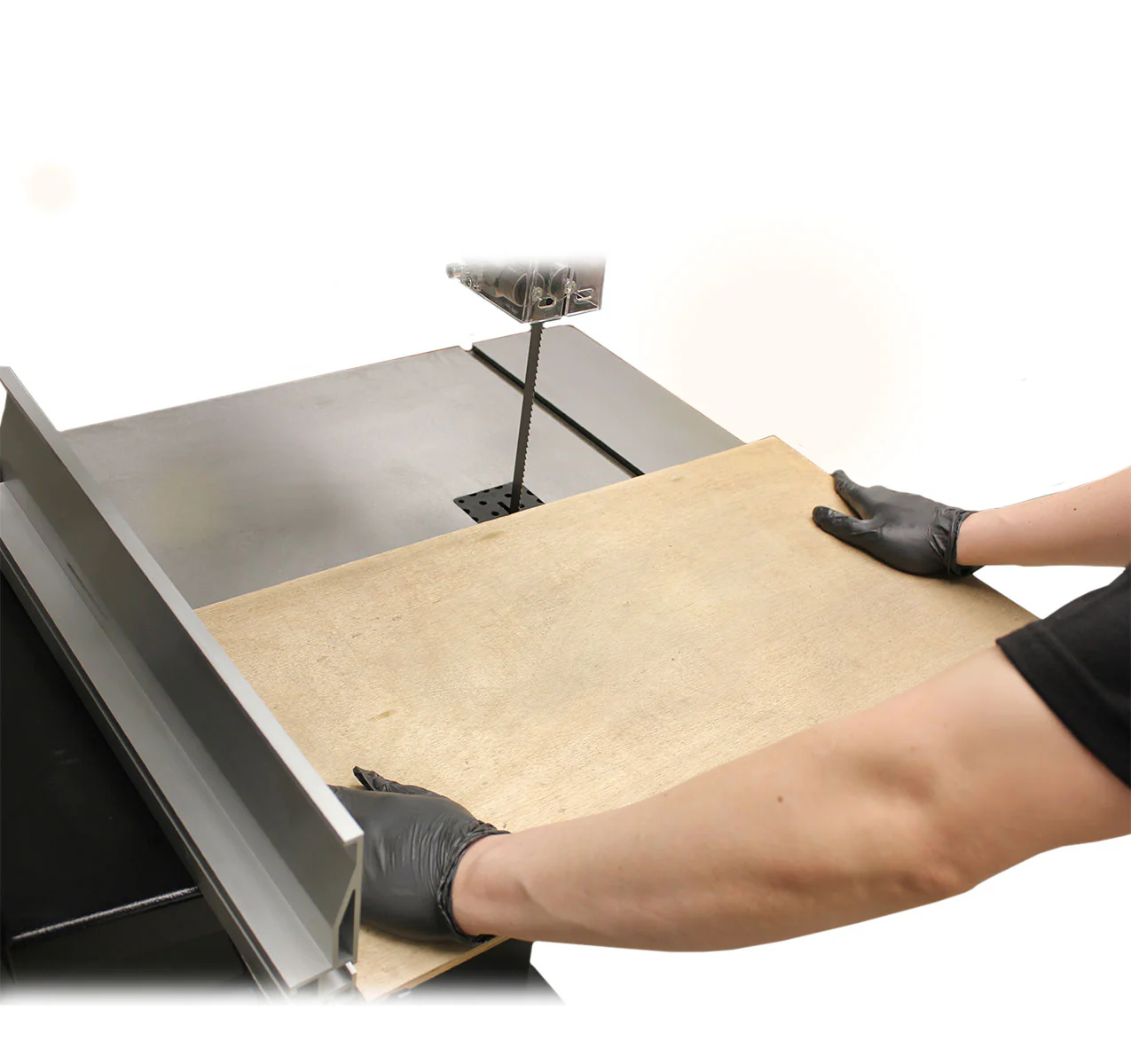

Large Extruded Aluminum Rip Fence: Achieve precise cuts with the large, durable extruded aluminum rip fence, complete with a re-saw bar for added versatility.
Precision Miter Gauge: Make accurate angle cuts with the included precision miter gauge, designed for smooth, consistent operation.

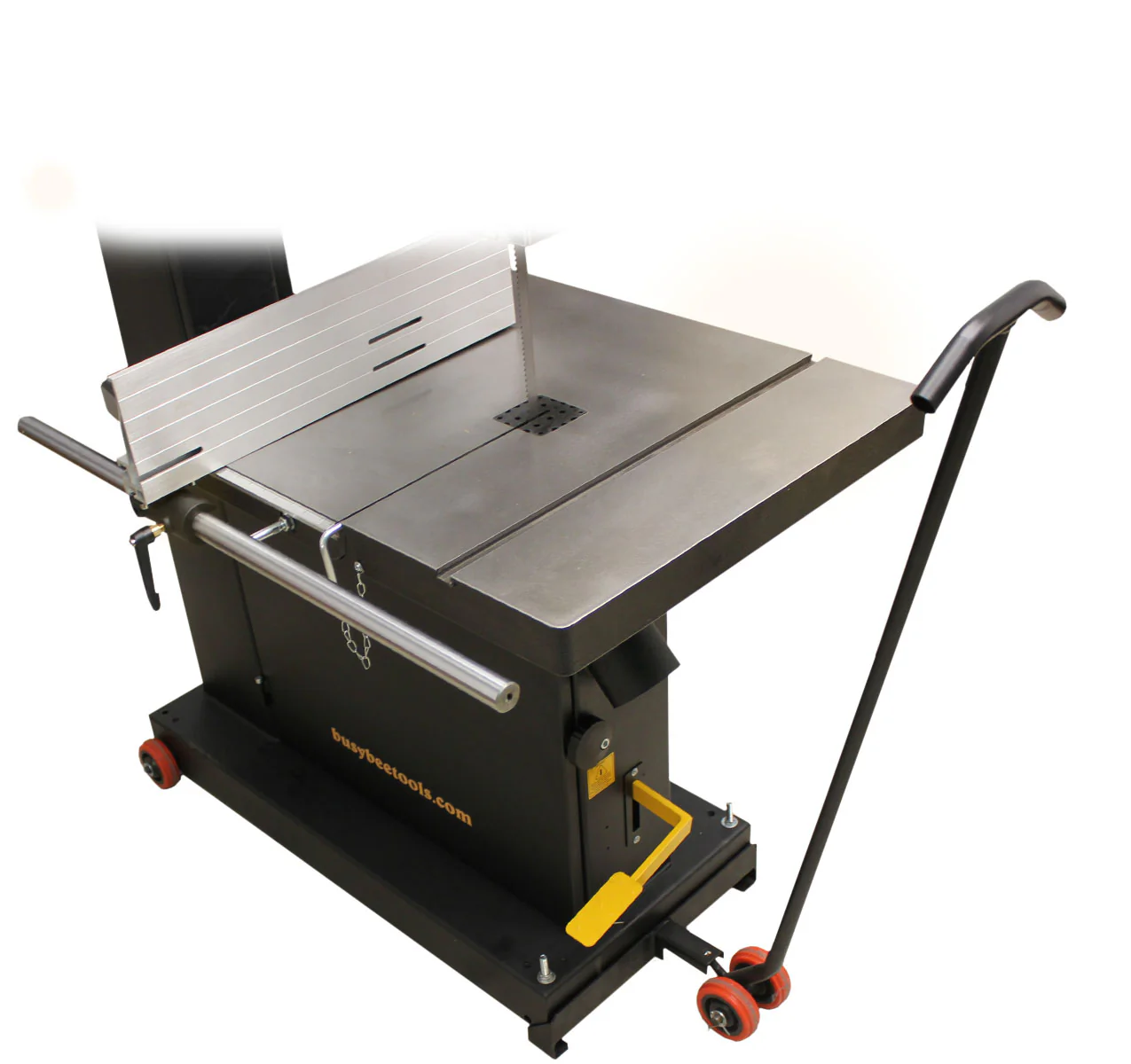

Optional Mobility Kit for Easy Transport: Move the bandsaw effortlessly with the included mobility kit, designed for easy transport across your workshop.
