21" GEARHEAD MILLING DRILLING MACHINE

Product image 1
1 / 5

21" GEARHEAD MILLING DRILLING MACHINE

The BBMM40HC Gearhead Milling Machine from Busy Bee Tools is a premium floor-standing milling machine engineered for professional-grade milling and drilling applications. Featuring a powerful 1.5HP motor and an R8 spindle taper, this machine delivers reliable torque and smooth operation across a wide speed range. The gearhead drive ensures efficient power transmission with reduced vibration, while the cross table provides a stable 23" x 7 1/2" working surface. Heavy-duty tapered roller bearings in the spindle assembly enhance precision and durability during extended use. Key safety and control features include a magnetic line interruption switch and a forward/reverse switch for versatile operation.

Features:

  • Gearhead floor model designed for consistent performance in professional settings
  • Powerful 1.5HP, 220V motor ensures dependable milling capability
  • R8 spindle taper compatible with a wide range of tooling
  • Magnetic line interruption switch requires restart after power loss for added safety
  • Forward and reverse switch for greater control and versatility
  • Spindle supported by four heavy-duty tapered roller bearings for precision and long life

Specifications:

  • Powerful 1.5HP, 220V, 1PH, 60HZ motor
  • Spindle Taper: R8
  • Cast Iron Cross Table Size: 23" x 7 1/2"
  • Drilling capacity: 1-1/4"
  • Max. distance spindle nose to table: 26 1/2"
  • Max. distance spindle nose to base: 47"
  • Swing: 20 7/16"
  • Spindle stroke: 5"
  • Diameter of column: 4 1/2"
  • Speeds: 6 (60–1,500) RPM
  • Face mill capacity: 4"
  • End mill capacity: 3/4"
  • Made in Taiwan

Comes With:

  • 1/2" chuck with key
  • 3 1/2" angle vise
  • Safety guard
  • Product Manual
  • 2 year warranty
  • Assembled Dimensions: 35 7/16" x 24 1/2" x 69", 274kgs (605 lbs)
  • Packaged Dimensions: 29 1/8" "x 32 11/16" " x 75 5/8", approx. 305kgs (673 lbs)



BBMM40HC Image 1

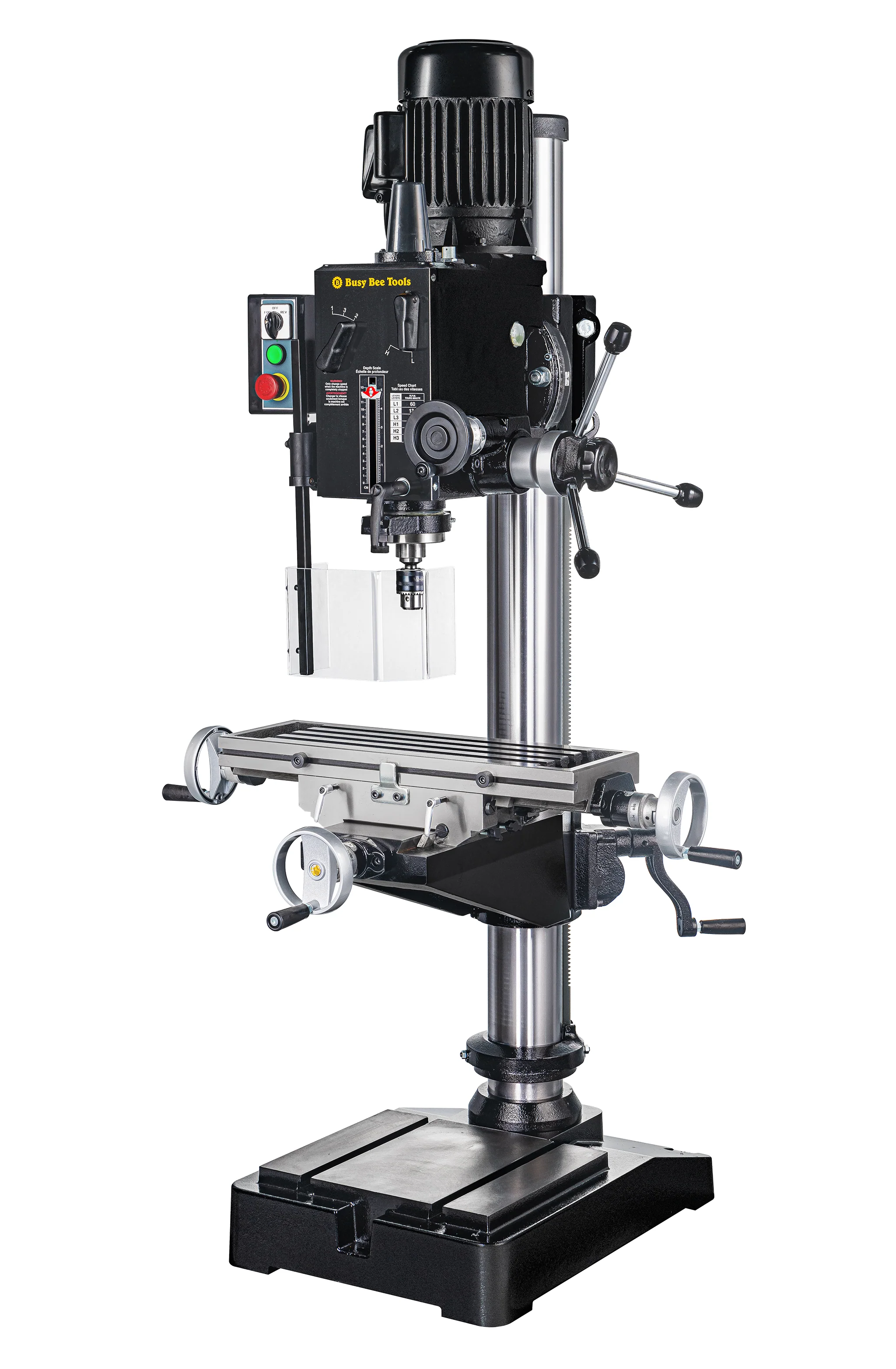

The BBMM40HC is a true floor-standing gearhead milling machine built for serious metalworking. With a rigid cast-iron structure, R8 spindle, and professional-grade drivetrain, this machine is designed for accuracy, power, and long-term reliability.
BBMM40HC Image 2

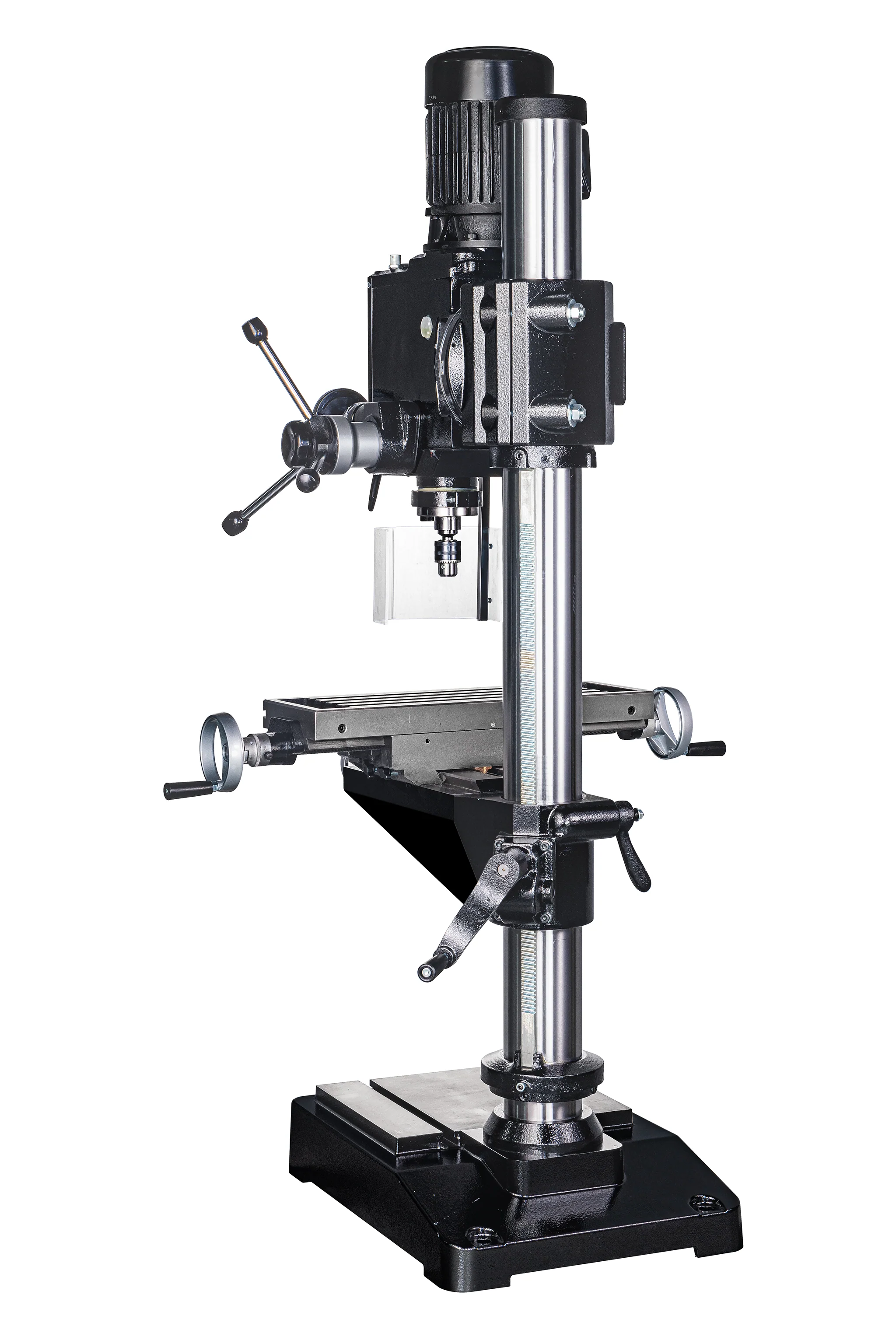

The oversized column and massive base provide exceptional stability and vibration damping. This rigid foundation ensures cleaner cuts, better surface finishes, and consistent accuracy even during heavier milling operations.
BBMM40HC Image 3
The gearhead transmission delivers efficient torque transfer with less vibration and no belt slippage. Easy-access forward and reverse controls paired with a magnetic safety switch give you total confidence and control at the machine.
BBMM40HC Image 4

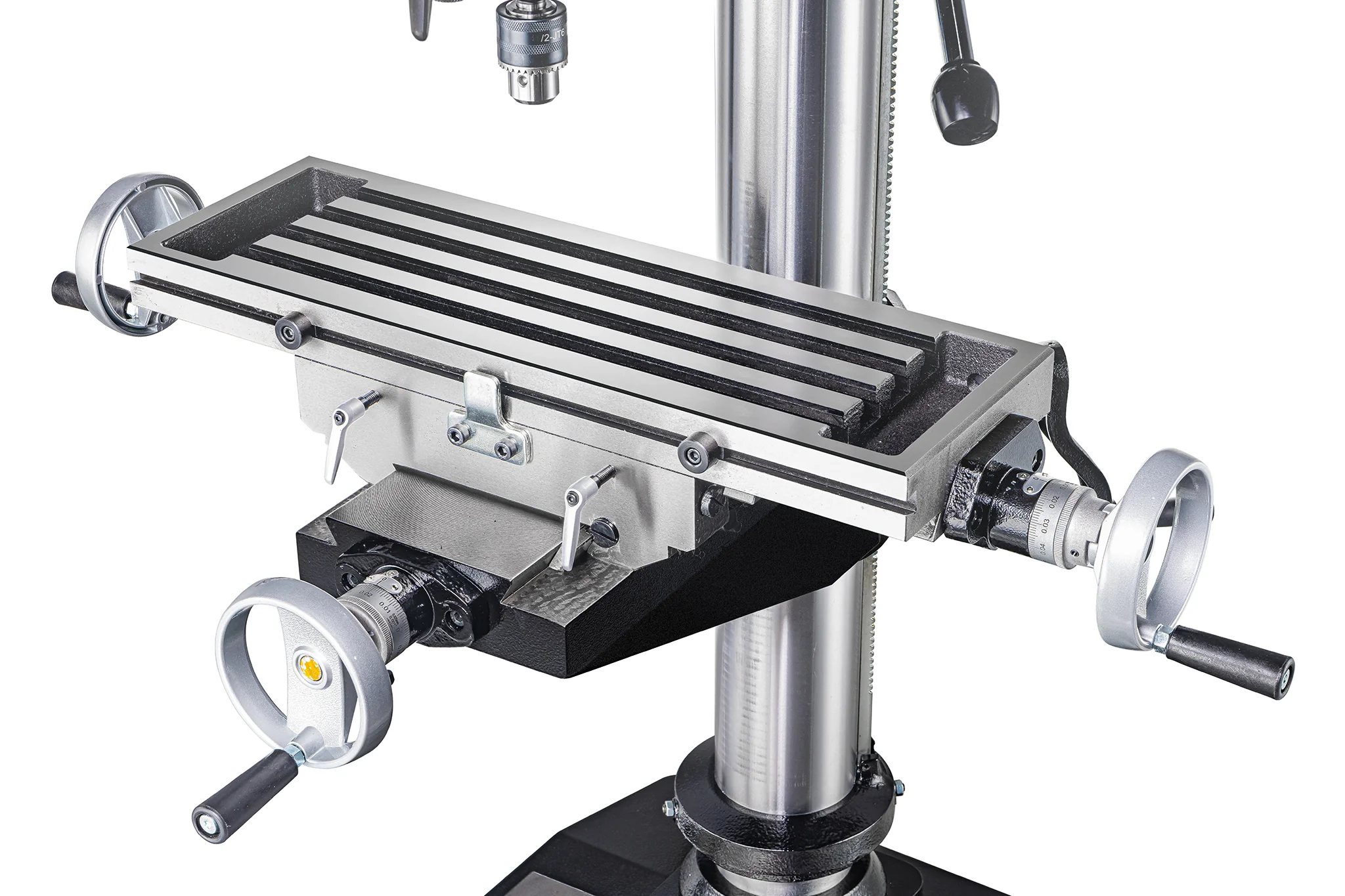

The large cast-iron cross table offers smooth, controlled travel in both axes with precise micrometer dials. Perfect for accurate slotting, facing, drilling, and layout work where precision truly matters.
BBMM40HC Image 5

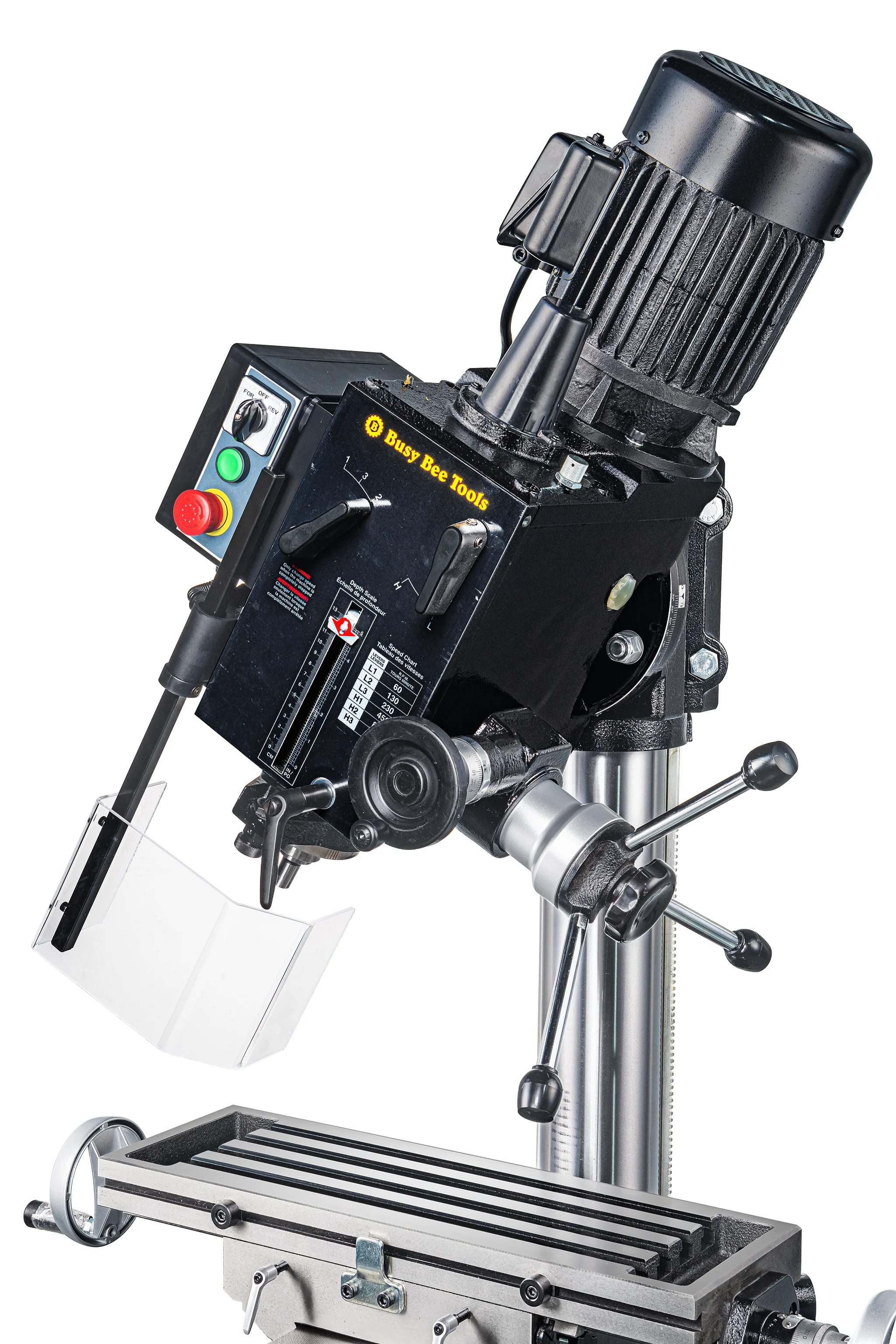

The head tilts to allow angled drilling and milling operations without complex setups. This flexibility opens the door to more advanced machining tasks while maintaining rigidity and alignment.
BBMM40HC Spec Sheet

The BBMM40HC Gearhead Milling Machine from Busy Bee Tools is a premium floor-standing milling machine engineered for professional-grade milling and drilling applications. Featuring a powerful 1.5HP motor and an R8 spindle taper, this machine delivers reliable torque and smooth operation across a wide speed range. The gearhead drive ensures efficient power transmission with reduced vibration, while the cross table provides a stable 23" x 7 1/2" working surface. Heavy-duty tapered roller bearings in the spindle assembly enhance precision and durability during extended use. Key safety and control features include a magnetic line interruption switch and a forward/reverse switch for versatile operation.

Features:

  • Gearhead floor model designed for consistent performance in professional settings
  • Powerful 1.5HP, 220V motor ensures dependable milling capability
  • R8 spindle taper compatible with a wide range of tooling
  • Magnetic line interruption switch requires restart after power loss for added safety
  • Forward and reverse switch for greater control and versatility
  • Spindle supported by four heavy-duty tapered roller bearings for precision and long life

Specifications:

  • Powerful 1.5HP, 220V, 1PH, 60HZ motor
  • Spindle Taper: R8
  • Cast Iron Cross Table Size: 23" x 7 1/2"
  • Drilling capacity: 1-1/4"
  • Max. distance spindle nose to table: 26 1/2"
  • Max. distance spindle nose to base: 47"
  • Swing: 20 7/16"
  • Spindle stroke: 5"
  • Diameter of column: 4 1/2"
  • Speeds: 6 (60–1,500) RPM
  • Face mill capacity: 4"
  • End mill capacity: 3/4"
  • Made in Taiwan

Comes With:

  • 1/2" chuck with key
  • 3 1/2" angle vise
  • Safety guard
  • Product Manual
  • 2 year warranty
  • Assembled Dimensions: 35 7/16" x 24 1/2" x 69", 274kgs (605 lbs)
  • Packaged Dimensions: 29 1/8" "x 32 11/16" " x 75 5/8", approx. 305kgs (673 lbs)



BBMM40HC Image 1
The BBMM40HC is a true floor-standing gearhead milling machine built for serious metalworking. With a rigid cast-iron structure, R8 spindle, and professional-grade drivetrain, this machine is designed for accuracy, power, and long-term reliability.
BBMM40HC Image 2
The oversized column and massive base provide exceptional stability and vibration damping. This rigid foundation ensures cleaner cuts, better surface finishes, and consistent accuracy even during heavier milling operations.
BBMM40HC Image 3
The gearhead transmission delivers efficient torque transfer with less vibration and no belt slippage. Easy-access forward and reverse controls paired with a magnetic safety switch give you total confidence and control at the machine.
BBMM40HC Image 4
The large cast-iron cross table offers smooth, controlled travel in both axes with precise micrometer dials. Perfect for accurate slotting, facing, drilling, and layout work where precision truly matters.
BBMM40HC Image 5
The head tilts to allow angled drilling and milling operations without complex setups. This flexibility opens the door to more advanced machining tasks while maintaining rigidity and alignment.
BBMM40HC Spec Sheet
$4,086.49
21" GEARHEAD MILLING DRILLING MACHINE—
$4,086.49
