CX610

20" Heavy Duty Drill Press - Craftex CX-Series

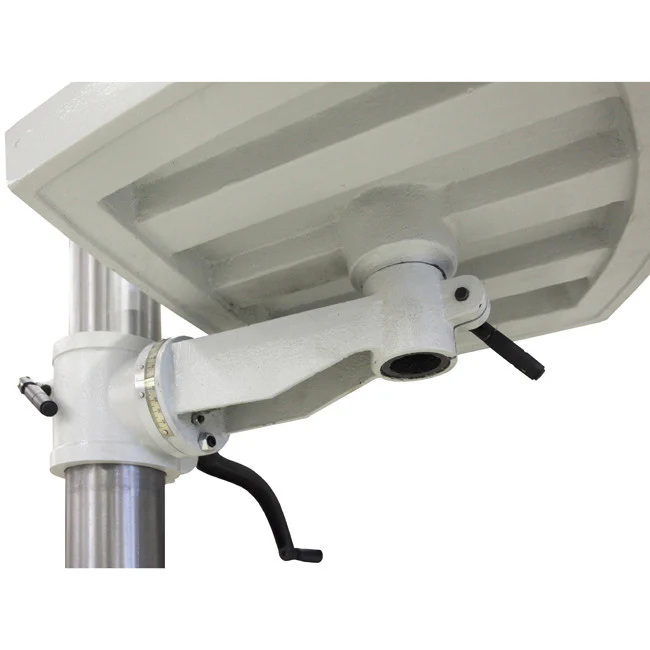

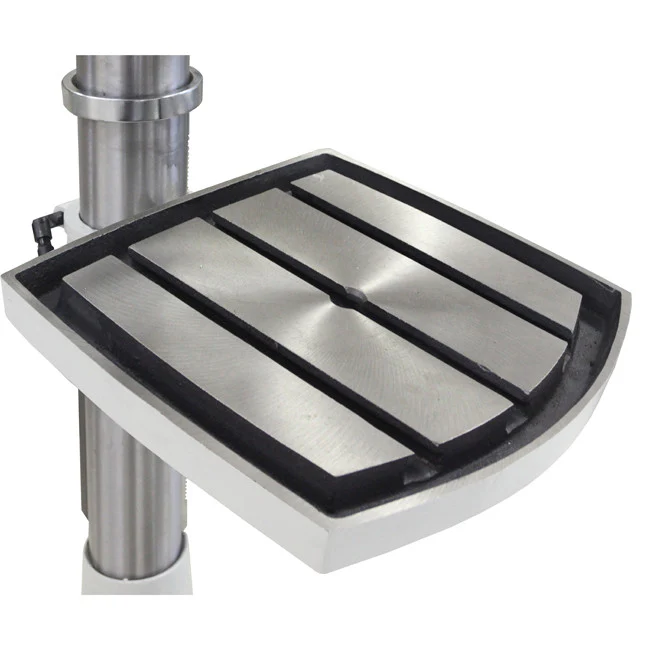

Providing precision and power, the CX610 20" Drill Press can tackle the most demanding jobs in your shop. Equipped with a 1-1/2HP motor, 12 speeds, MT4 spindle taper, laser guide technology, 18-3/4 x 16-3/4" precision cast iron table and solid construction, this drill press is the one you should look at seriously. The table features tack and pinion mounts allowing for 360° of rotation with 60° tilt (left & right).

Like all CX-Series machines, this unit features a full 3 year warranty.

SPECIFICATIONS

Size: 20"
Motor: 1 1/2 HP, 120V, Single Phase
Drill Chuck: 5/8"
Spindle Taper: MT4
Spindle Travel: 4-3/4"
Table: 18-3/4" x 16-3/4"

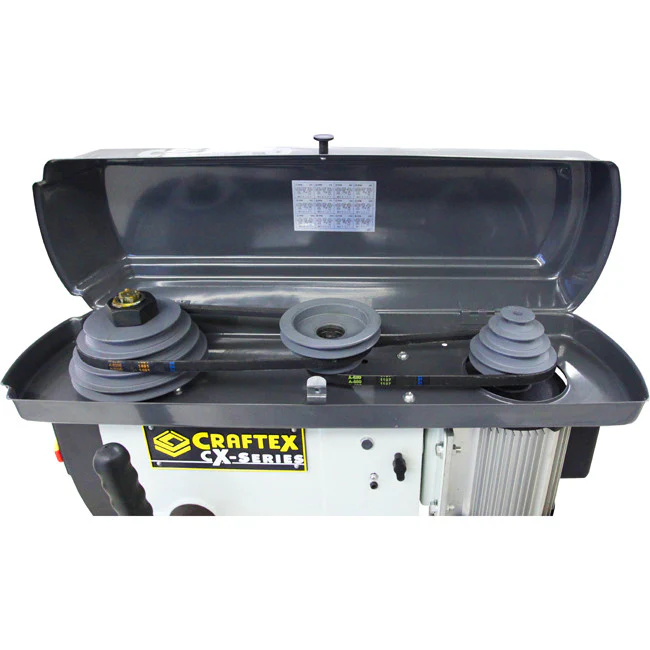

Speeds: 12
Speed Range: 210-3300 RPM
Height: 67"
Carton size: 29" x 13" x 56"
Weight N/G.: 148 kg
