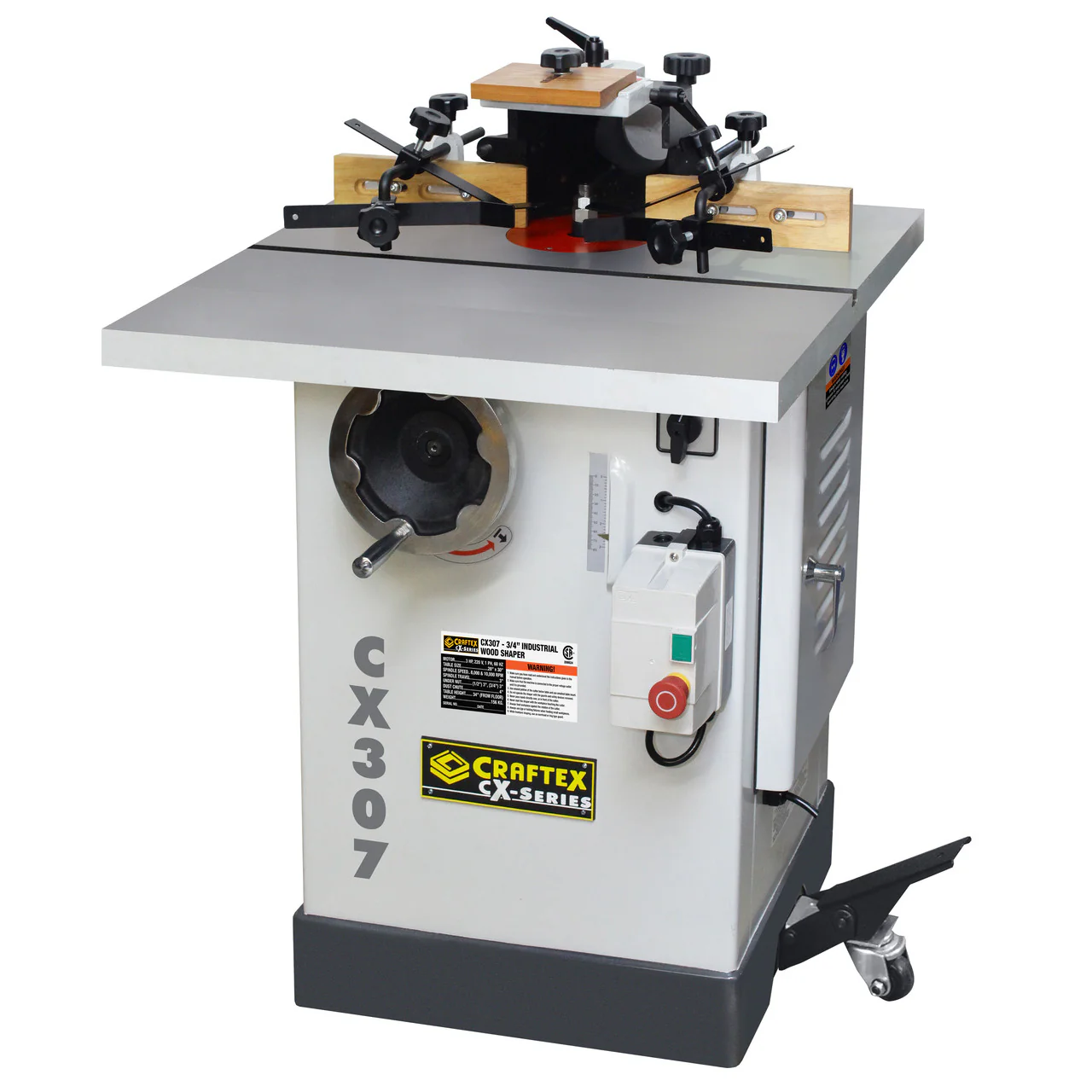

CX307

2.5HP Industrial Woodworking Shaper - Craftex CX-Series

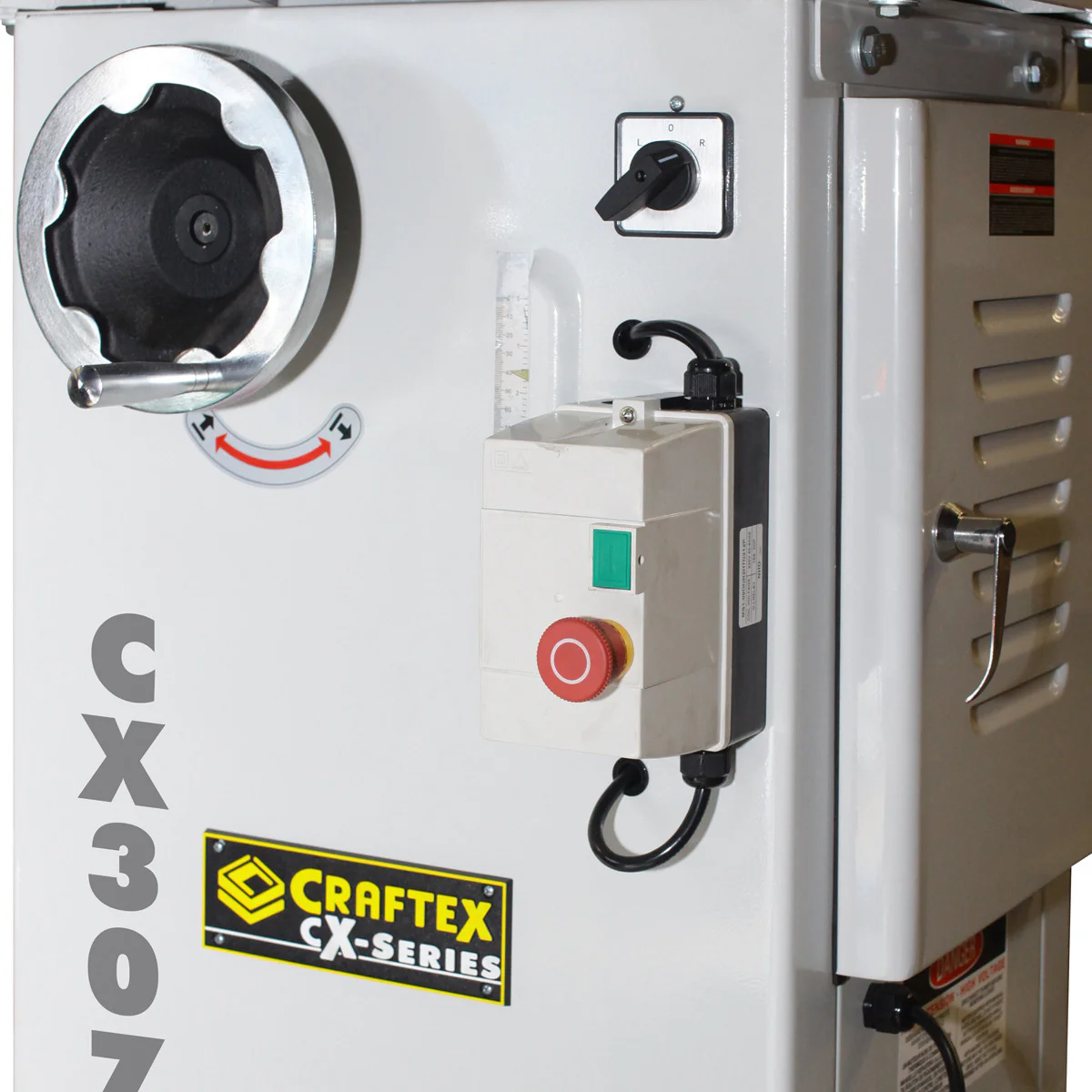

Featuring a powerful 2.5HP motor, the CX307 is built with plenty of muscle and great features to take on just about any job. The 28"W x 22"D cast iron table provides a large solid work surface and the two 9.5" x 2-3/4" wooden fences can be adjusted independently. The shaper features a forward/off/reverse switch and the spindle height adjustment hand wheel with lock knob which adds even more versatility to your shaping operations. The unit also features conveniently located controls and adjustments, making it safe and easy to operate.

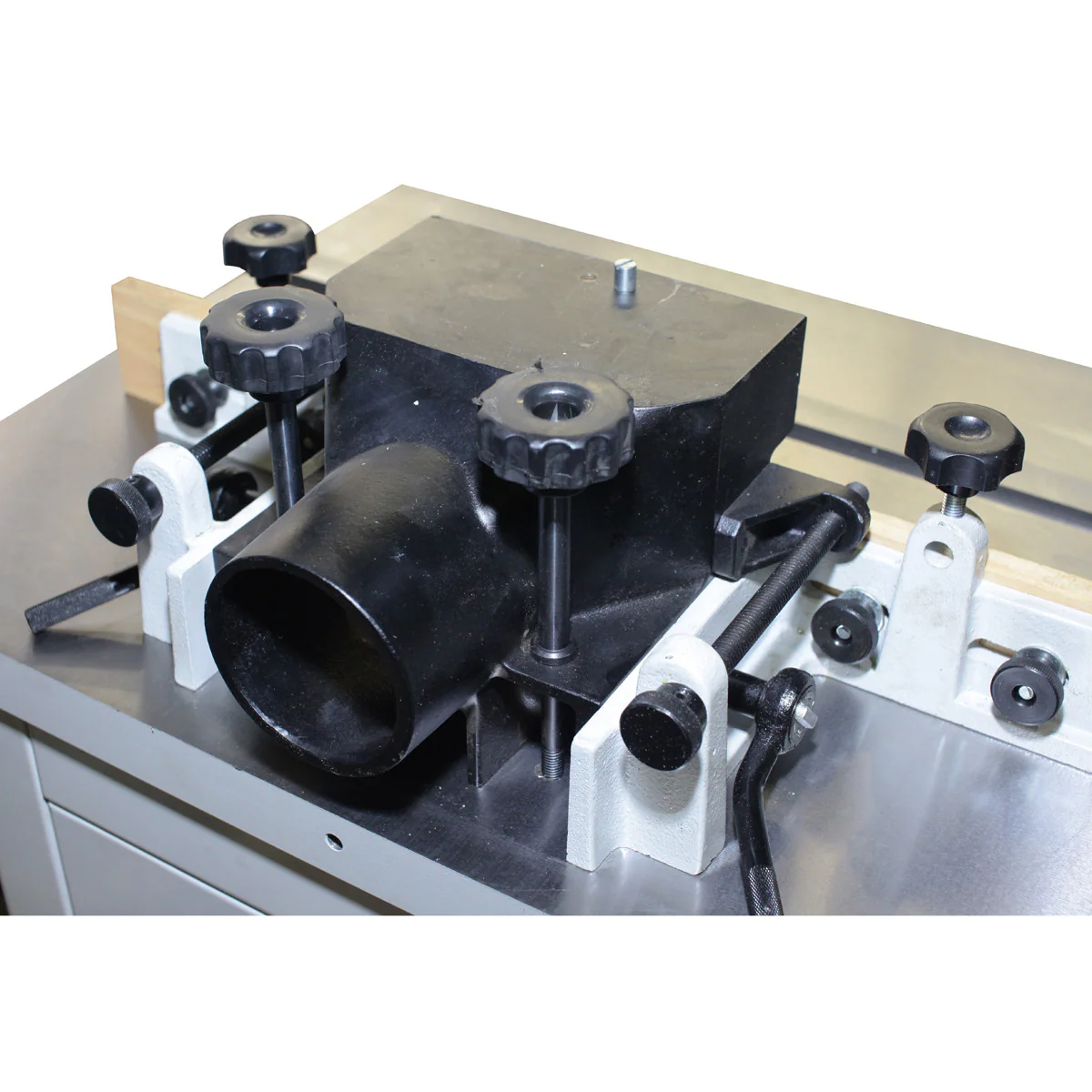

The other features include sharp two tone powder coated paint, a spindle lock, spindle height scale, magnetic ON/OFF/emergency stop switch, miter gauge, four hold-down clamps, 4" dust port, easy belt change, integral mobile base, router collet adaptors and more.

SPECIFICATIONS

Motor: 2.5-HP, 220-V, 60 Hz, Single Phase, 15 Amp

Spindle Travel: 4”

Spindle Size: 1/2" and 3/4"

Spindle Speeds: 8,000 RPM and 10,000 RPM

Direction: Forward / Reverse

Table Size (with extension table): 28"W x 30"D

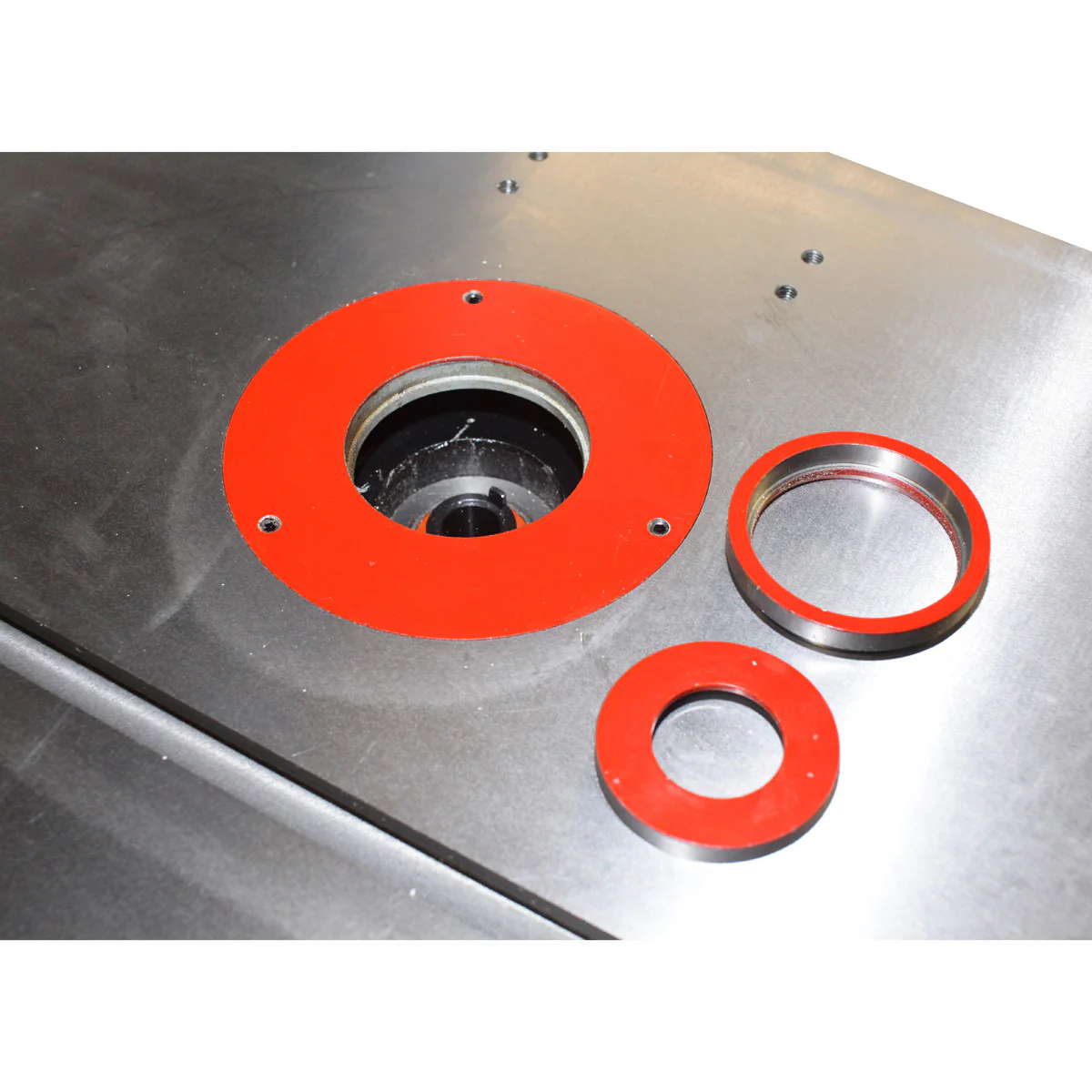

Spindle Table Openings: 1-5/8", 3" & 3-1/2"

Fence Size: 9.5" x 2-3/4”

Adjustable Hold Down Clamps: Yes

Router Collet Adaptors: 1/2" and 1/4"

Starter Pins: Yes

T-Slot for Miter Gauge: Yes

Magnetic Reversing Switch: Yes

Dust Port: 4”

Floor to Table Height: 34.5”

Integral Mobile Base included

Gross Weight: 156 kg

Warranty: 3 Years
