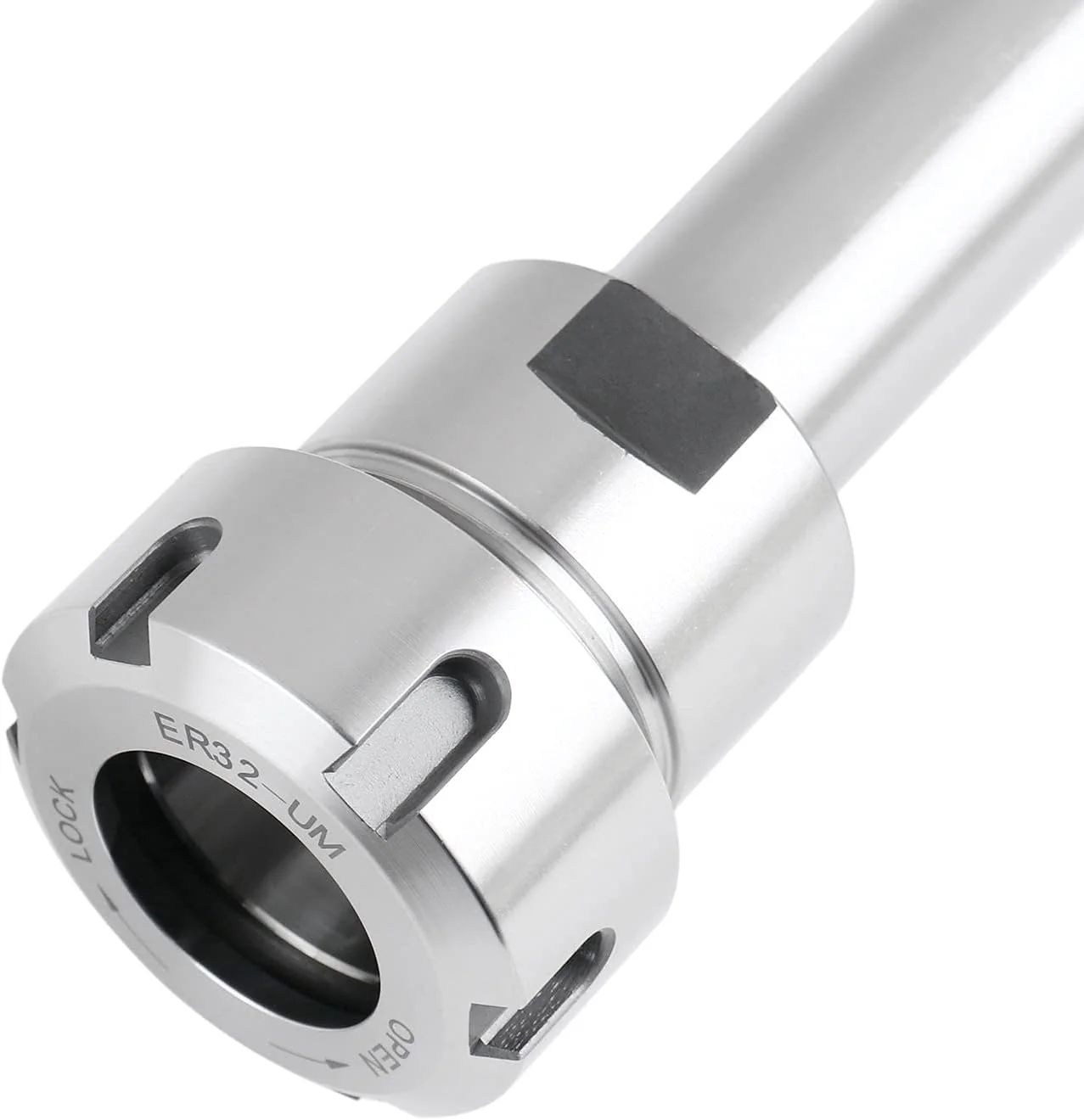

The Accusize ER32 Collet Chuck Extension Rod is designed for precision and strength, suitable for a wide range of machining applications. This robust tool features a 2.36-inch shank length and a 1-inch straight shank, allowing for a secure fit and enhanced stability. Made from high-quality alloy steel, this collet chuck provides durability and accuracy essential for demanding tasks.

Key Features

• High Precision: Delivers 0.0002" TIR or better, ensuring accurate and consistent performance.
• Durable Material: Constructed from high-grade alloy steel, hardened to withstand challenging machining conditions.
• Wide Compatibility: Works with the ER32 collet series, accommodating various collet sizes.
• Easy to Use: Straight shank design simplifies installation and removal, enhancing user convenience.
• Secure Fit: Slotted collet nut style provides a reliable grip on the tool, minimizing slippage.

Specifications

• Collet Series: ER32
• Collet Capacity: 0.08" - 0.787"
• Collet Nut Diameter: 1.97"
• Collet Nut Style: Slotted
• Shank Diameter: 1 inch
• Shank Length: 2.36 inches
• Overall Length (OAL): 4.39 inches
• Material: Alloy steel, hardened to HRC 56-60

Comes With

• ER32 Collet Chuck Extension Rod, precision ground for stability
• High-precision collet nut with slotted design for enhanced hold
