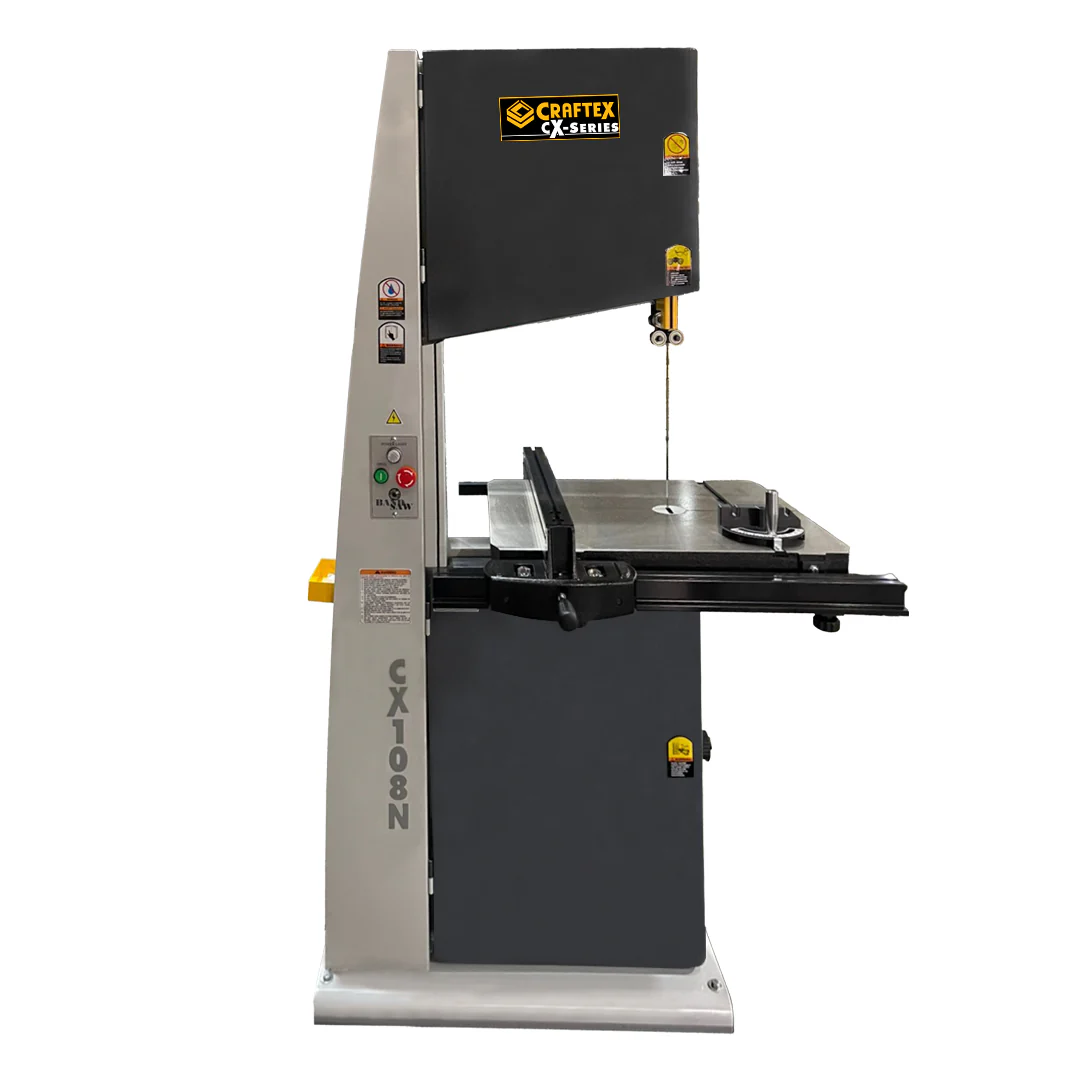

Powered with a reliable and powerful 2 HP 220 Volts motor, the CX108N cuts wood with a maximum cutting capacity of 12" height and 17-5/8" throat which is plentiful for most applications. The larger more accommodating 20”x 24” precision ground cast iron table provides a large more comfortable workspace. The table tilts 50 degrees left and 10 degrees right. The top & bottom doors are hinged for easy access & the bottom wheel features a heavy bristle brush to eliminate sawdust build up. Large easy-to-use hand wheels provide extra smooth adjustments & the tension adjustment is found at the top of the unit.

Features:

Larger 20” x 24” Cast Iron Table
4" Dust Port
Table Tilts 50-Degree to the Left and 10-Degree to the Right
Quick Change Blade Release / Tensioning
High Quality Blade Guides
Fully Balanced Cast Iron Wheels
High Quality Standard Construction
3 Year Warranty
Made in Taiwan

Specifications:

Motor: 2HP, 220V Single Phase, 3450 RPM

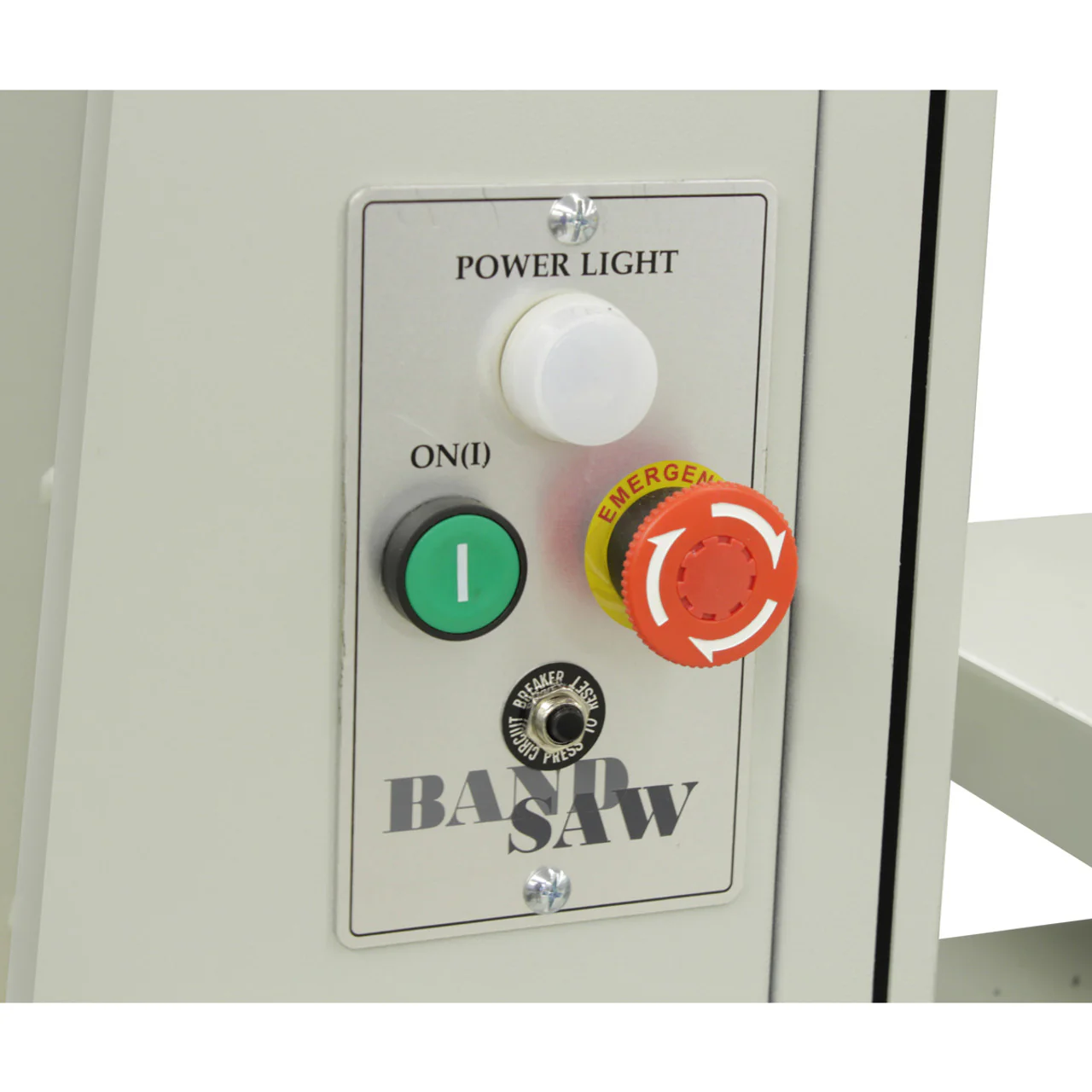

Switch: Magnetic Switch
3 Speed: 1480, 2300 & 3260 FPM
Cast Iron Table Size: 20” x 24”
Table Tilt: 0° to 10° Left and 0° to 45° Right
Wheel: 18”
Max Blade Width: 1”
Min Blade Width: 1/8”
Maximum Cutting Height: 12”
Floor to Table Height: 38-1/2”
Cutting Capacity/Throat: 17-5/8”
Dust Collection Ports: 2 Ports@ 4”
Blade Length: 133”
Bearings: Sealed and Permanently Lubricated
Computer Balanced Cast Iron Wheels: Yes
Co-Planer Adjustment: Yes
Powder Coated Paint: Yes
Precision Ripping Fence: Yes
Quick Release Tension Adjustment: Yes
Overall size: 30” x 41” x 74”
