14" DRILL PRESS 3/4HP CX614X12
Gold Certified Refurbished Machine.
Available instore at Concord Store.
Display/Demo Model - Fully Operational/Good Condition
May not be exactly as pictured. Final Sale, As Is, No Warranty.
This 14" Drill Press is an instant welcome addition to any midsized workshop. This unit features 12 speeds, a powerful 3/4 HP motor, rack and pinion raising mechanism, solid cast iron handles and surface ground cast iron table with rigid columns making this a robust and versatile drill press.
This unit also features laser guided technology, generous sized tilting table with locking levers and coolant trough.
Like all CX-Series machines, this 14" Drill Press features powder coated paint, high quality craftsmanship and a full 3 year warranty.
Specifications
Motor: 3/4 HP, 110V, Single Phase, 9A
Swing: 14"
Spindle travel: 3-1/4"
Speeds: 12 (140, 260, 320, 380, 480, 540, 980, 1160, 1510, 1650, 2180, 3050 RPM)
Spindle: MT2

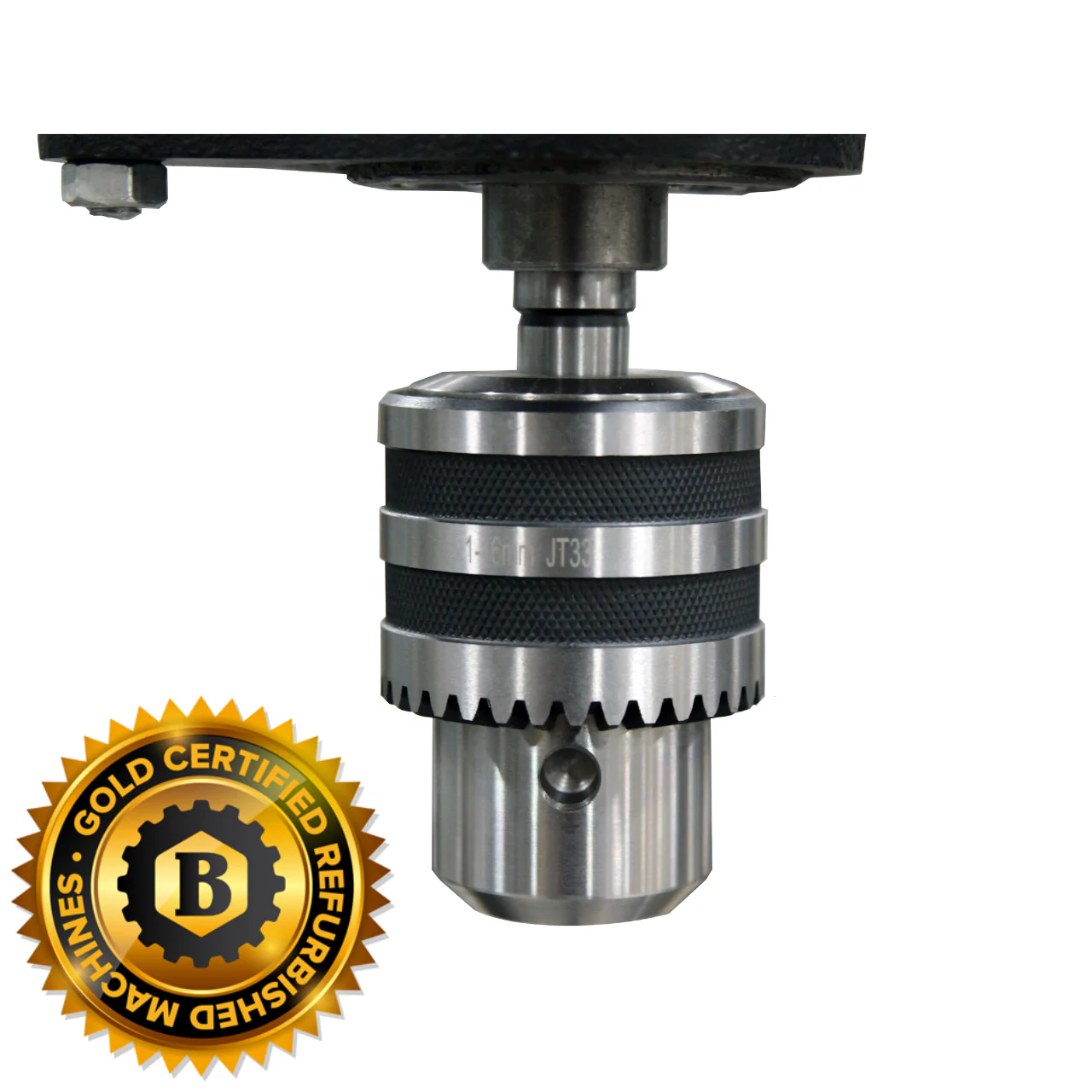

Drill chuck: 1/64"-5/8"
Drilling Capacity: 3/4" Steel

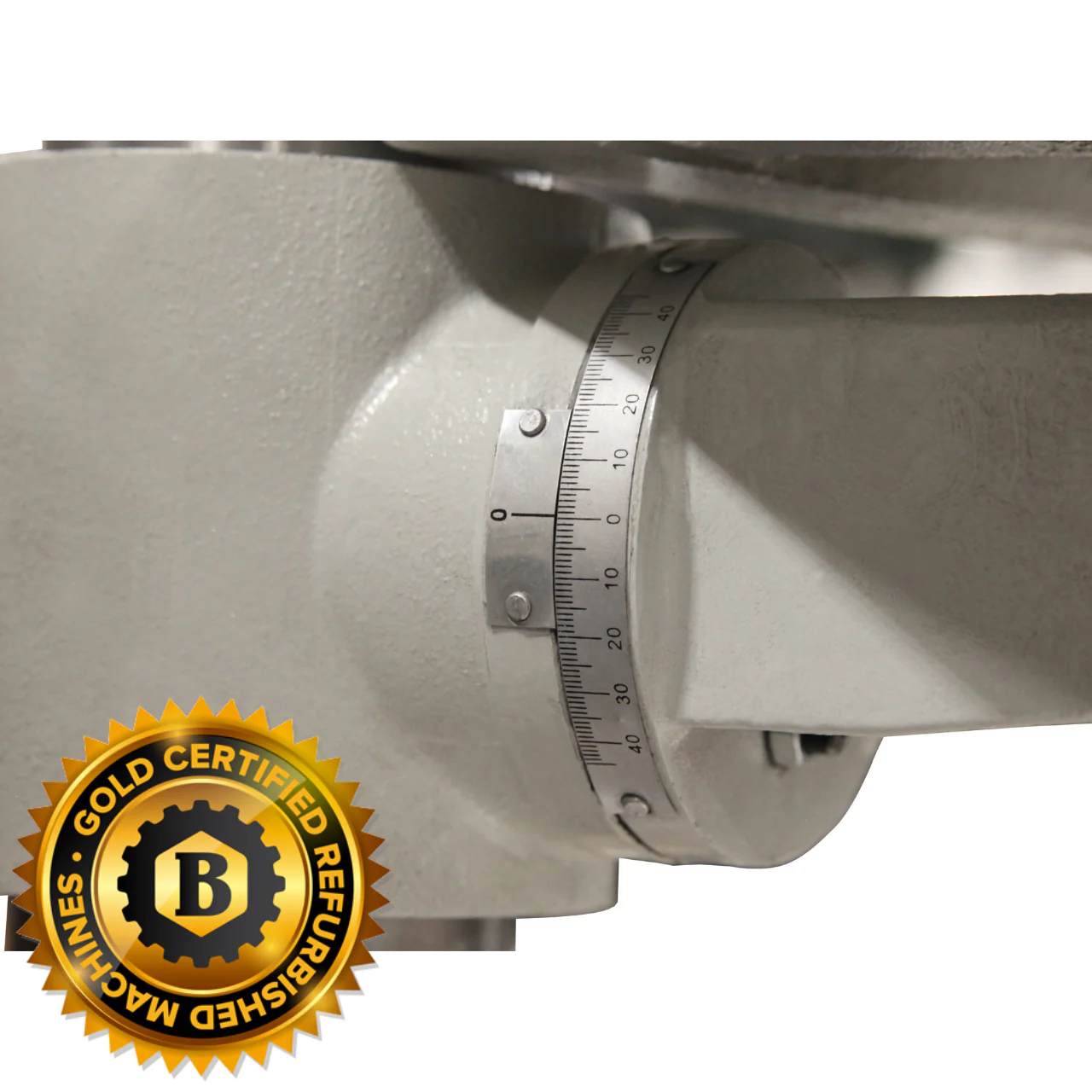

Table Tilts 90 degrees left and right
Table Swing: 360 degrees
Quill: 66mm
Table: 11 1/4" SQ.
Overall Height: 64"
Weight: 87 kg.
Carton size: 20" x 10" x 56"
