18" x 40" Variable-Speed Wood Lathe – Built for Professional Woodturning

This heavy-duty 18" x 40" variable-speed wood lathe is designed for serious woodturners who demand precision, power, and versatility. Equipped with a robust 2 HP induction motor and smooth variable-speed control, this lathe handles everything from delicate detail work to large bowl turning with confidence.

Its solid cast-iron construction reduces vibration and ensures stability during extended turning sessions. With features like dual-speed ranges, digital spindle readout, outboard turning capability, and advanced safety controls, this machine delivers performance that matches the needs of both professionals and advanced hobbyists.

A bed extension and auxiliary bed system allow you to tailor the machine to your specific projects—whether you're turning long spindles or oversized bowls. Add in thoughtful details like built-in chisel holders and self-ejecting tailstock, and you've got a full-featured wood lathe that works as hard as you do.

Key Features

2 HP Induction Motor
Delivers high torque and consistent power across all turning speeds.
Variable Frequency Drive (VFD)
Provides smooth, high-torque speed control using standard single-phase 220V power.
Dual-Range Variable Speed
Low range: 50–900 RPM
High range: 170–3200 RPM
Digital spindle speed display for accurate control.
Cast-Iron Frame and Components
Heavy-duty construction for reduced vibration and maximum stability.
Bed Extension & Auxiliary Bed
Extend distance between centers or increase bowl-turning capacity by reconfiguring the auxiliary bed.
Outboard Bowl Turning Capability
Dedicated tool rest and auxiliary bed support larger, off-axis projects.
6" Faceplates on Both Spindle Ends
For flexible mounting and reverse-turning setups.
10° Spindle Indexing
Allows precise positioning for layout, fluting, and pattern work.
Forward & Reverse Spindle Operation
Enhances finish sanding and overall versatility.
Self-Ejecting Tailstock
Simplifies accessory removal without additional tools.
Built-In Chisel Holders
Keeps tools organized and accessible during work.
Dual Emergency Stop Buttons
Located for fast access and improved operator safety.
2-Year Limited Warranty
Covers defects in materials and workmanship.

Specifications

Power Supply: 220V, single-phase, minimum 15A
Motor: 2 HP, 220V
Swing Over Bed: 18"
Swing Over Tool Rest Base: 14-3/8"
Swing with Bed Extension: 35-1/2"
Distance Between Centers: 26" (40" with bed extension)
Spindle Speed: 50–3200 RPM, variable
Spindle Threads: 1-1/4" x 8 TPI
Spindle Taper: MT#2
Tailstock Taper: MT#2
Tool Rest Width: 12"
Tool Rest Post Diameter: 1"
Overall Dimensions: 69-1/2" L x 23-1/2" W x 50" H
Shipping Weight: Approx. 615 lbs.

Comes With

MT#2 Spur Center
MT#2 Live Center
Knockout Bar
Bowl Turning Tool Rest
Cast-Iron Bed Extension
Auxiliary Bed
Dual 6" Faceplates
Built-In Chisel Holders

Note: Optional Side Tool Rest Assembly and Protective Guard sold separately.

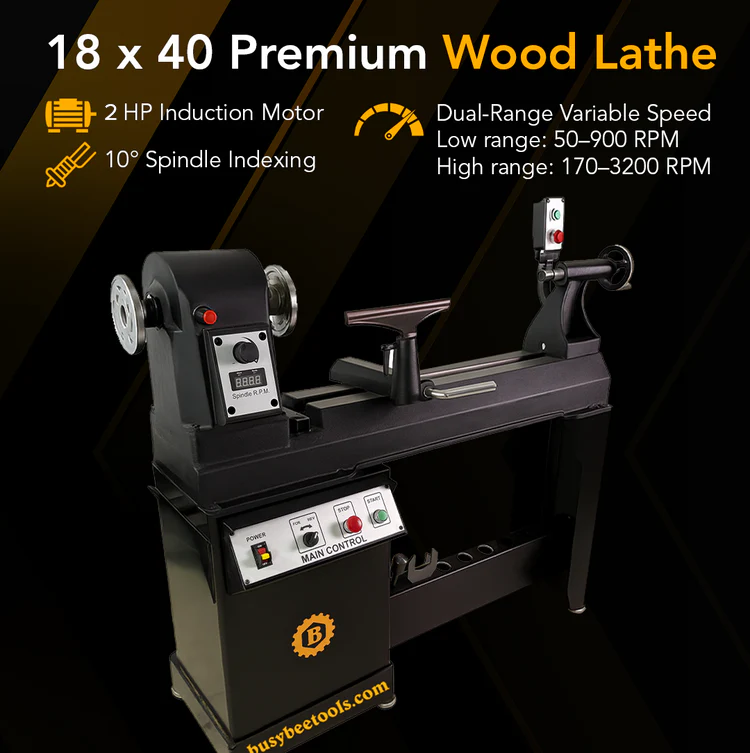

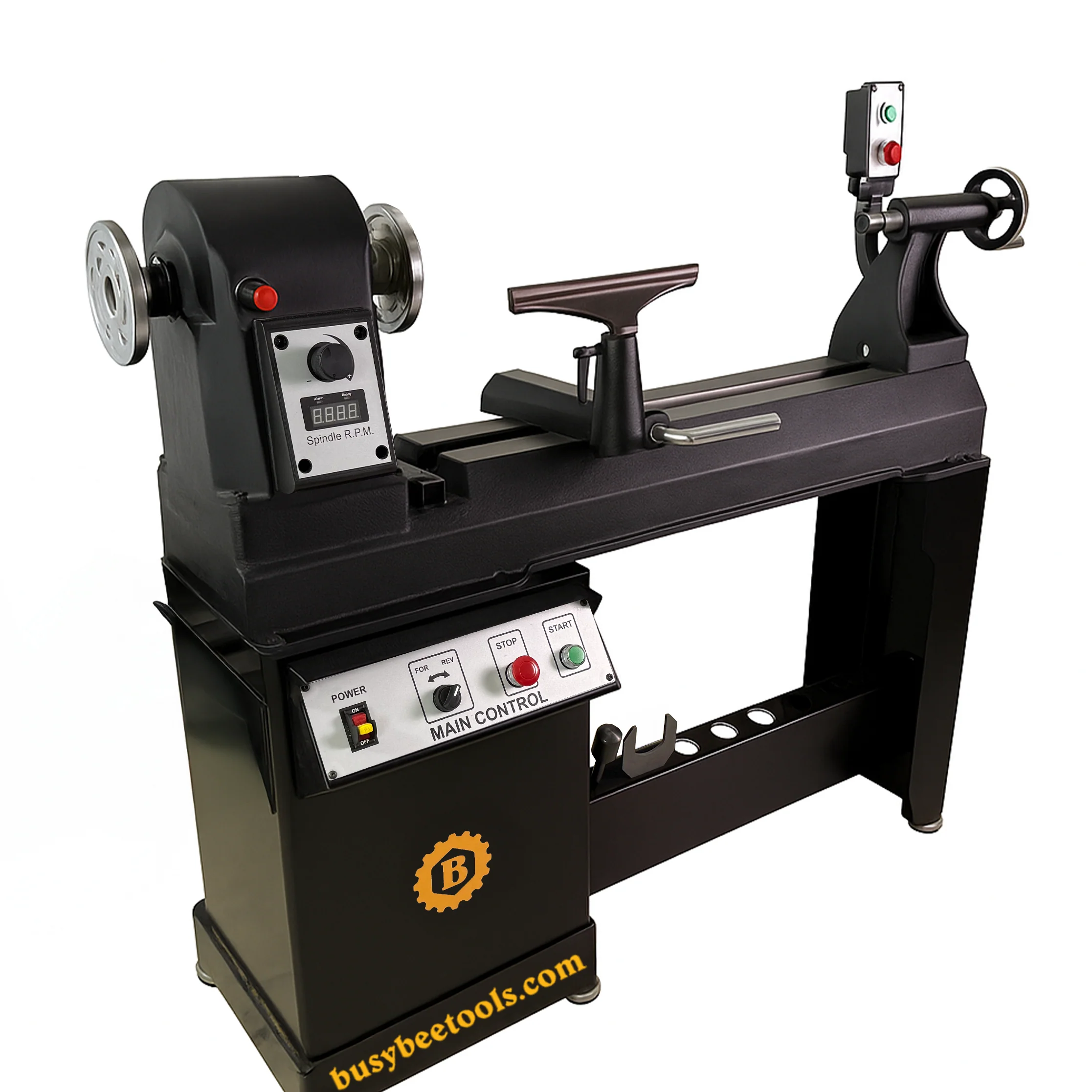

Introducing the BBWL1840 18” x 40" Wood Lathe: Engineered for professionals, this 18" x 40" lathe features a solid cast-iron build for superior stability and low vibration. The integrated control panel offers easy access to start/stop, spindle direction, and emergency shutoff—ideal for safe, high-performance turning. Note: Optional Side Tool Rest Assembly and Protective Guard sold separately.

Dual-Range Pulley System for True Variable Speed Performance
Shift seamlessly between low (50–900 RPM) and high (170–3200 RPM) speed ranges using the powerful pulley system. This setup ensures high torque at any speed, perfect for a wide range of woodturning projects.

Electronic Variable Speed Control: Ergonomic Layout with Built-In Tool Rest and Digital RPM Display
Designed with both power and usability in mind, this lathe offers a convenient tool rest and a digital RPM readout. Its ergonomic control panel makes it simple to adjust settings mid-project with precision.

High-Torque 2 HP Induction Motor: A powerful 2 HP motor delivers the torque needed for turning large bowls and dense hardwoods. Built to handle high loads with minimal noise, it ensures reliable, long-term performance.

Extended Capacity for Outboard Bowl Turning: Equipped with a left-mounted outboard turning arm, this lathe allows for turning large-diameter bowls with ease. Cast-iron construction provides unmatched stability during off-center work.

Precision Tool Rest and Dual Faceplates for Versatile Mounting: Includes a wide tool rest and two 6" faceplates for secure mounting on both ends of the spindle. Ideal for projects that require reversing direction or working with non-standard blank shapes.

Quick-Access Emergency Stop and Start Controls: Stay safe with a front-facing emergency stop and start system, easily reachable during operation. Designed to give you full control in a split second when needed.

Intuitive Control Console with Forward/Reverse Switch: The main control panel features all critical functions: power, forward/reverse toggle, stop, and start. Everything is positioned for smooth, quick adjustments while you work.

Digital Spindle Speed Readout with Dial Control: Monitor your exact spindle speed on the digital display and make precise adjustments using the integrated dial. Ideal for fine-tuning cuts across various materials and turning styles.

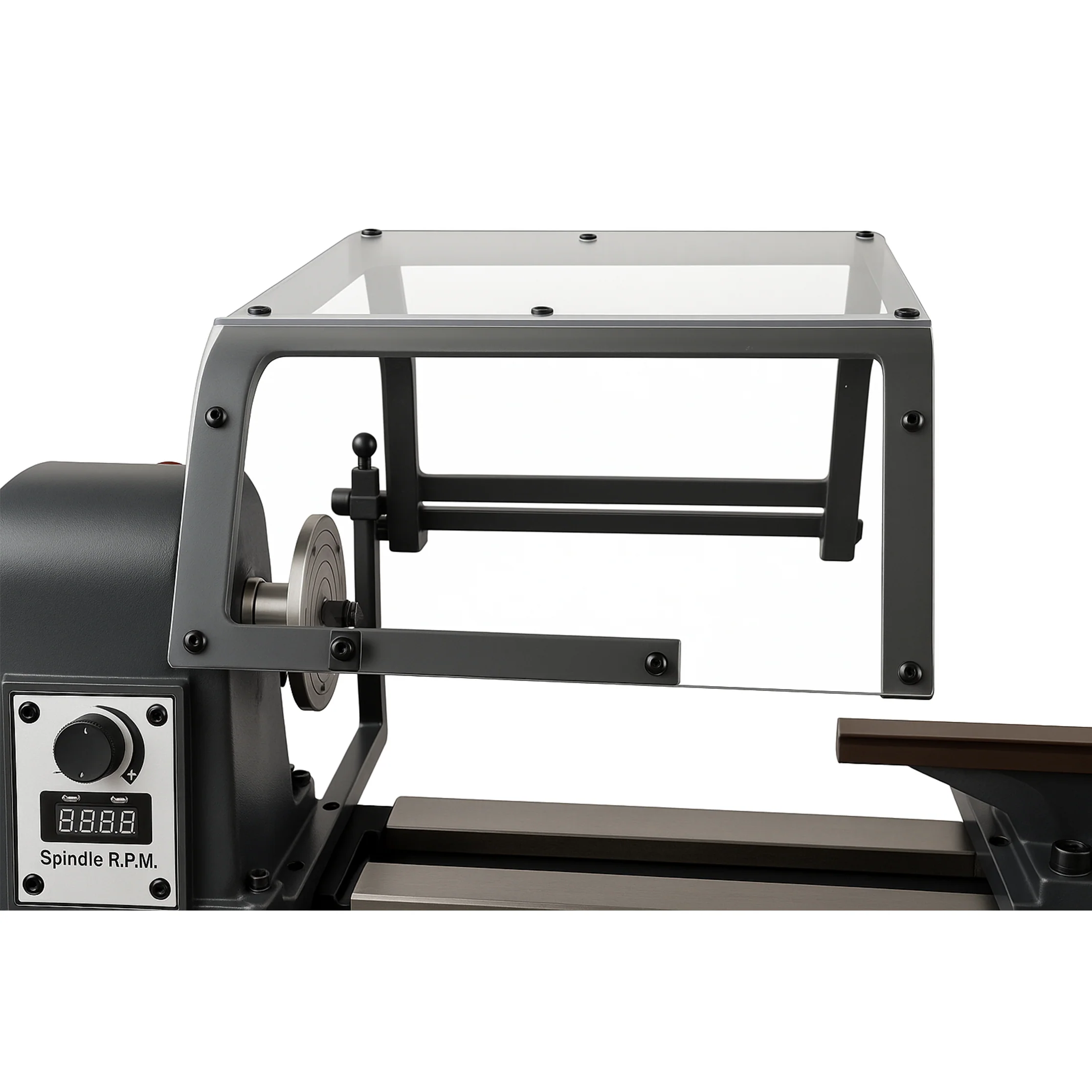

Bowl Turning Setup with Safety Guard and Adjustable Mounting: Designed for safety and control, the adjustable bowl-turning guard keeps debris in check while giving clear access to your workpiece. Perfect for larger turning projects that require added protection and workspace visibility.

Misc.Tools > New Items

Price

Collections

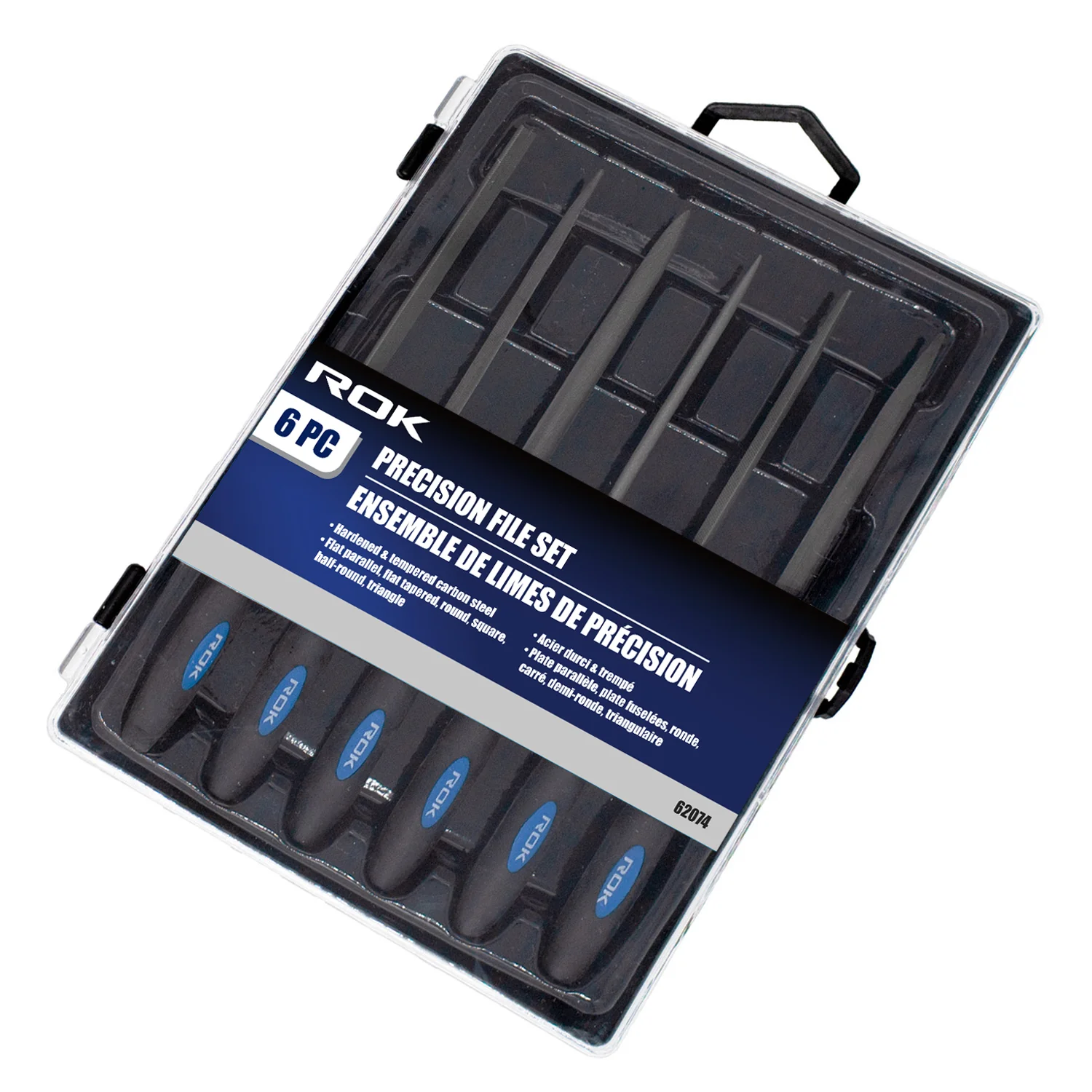

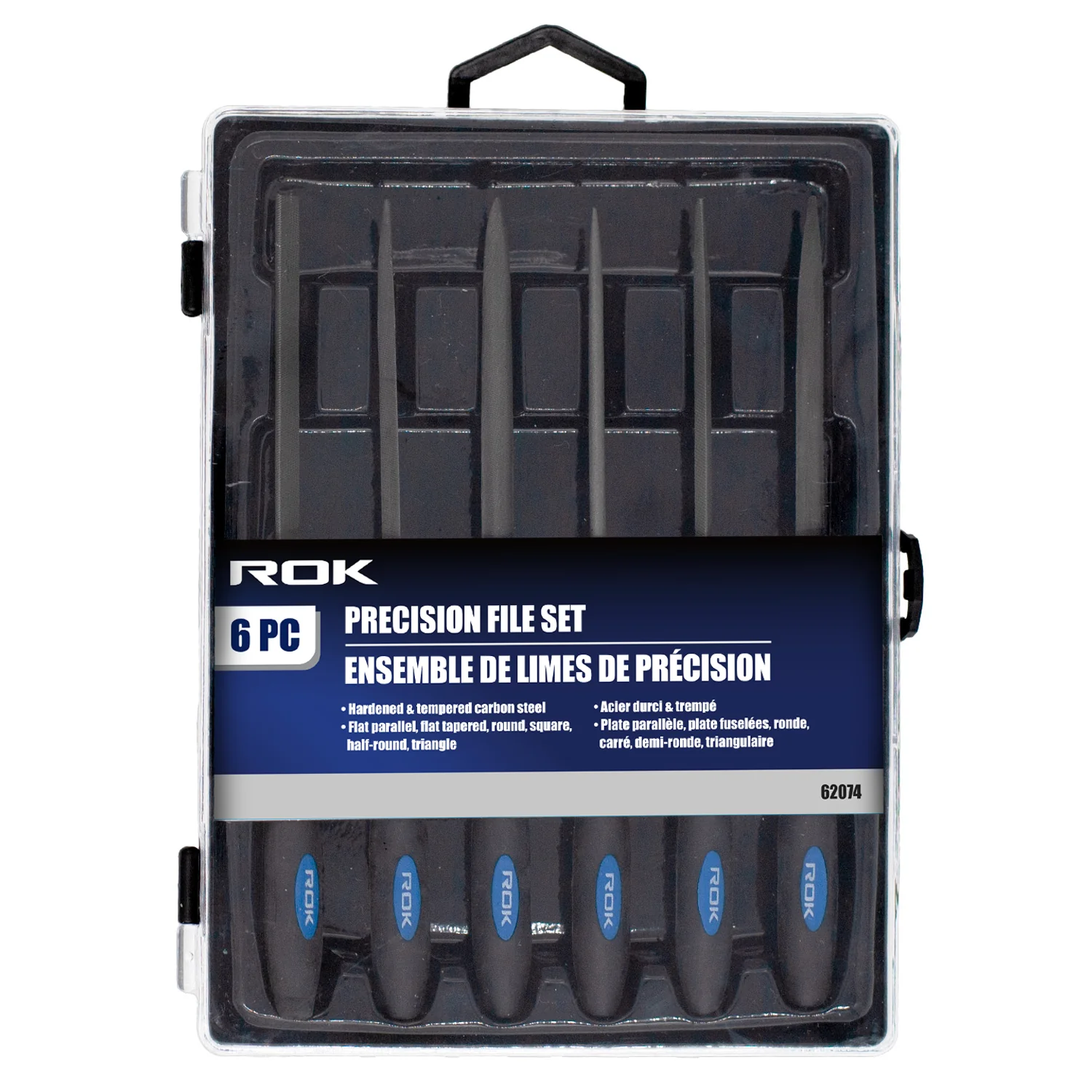

6 PC PRECISION FILE SET

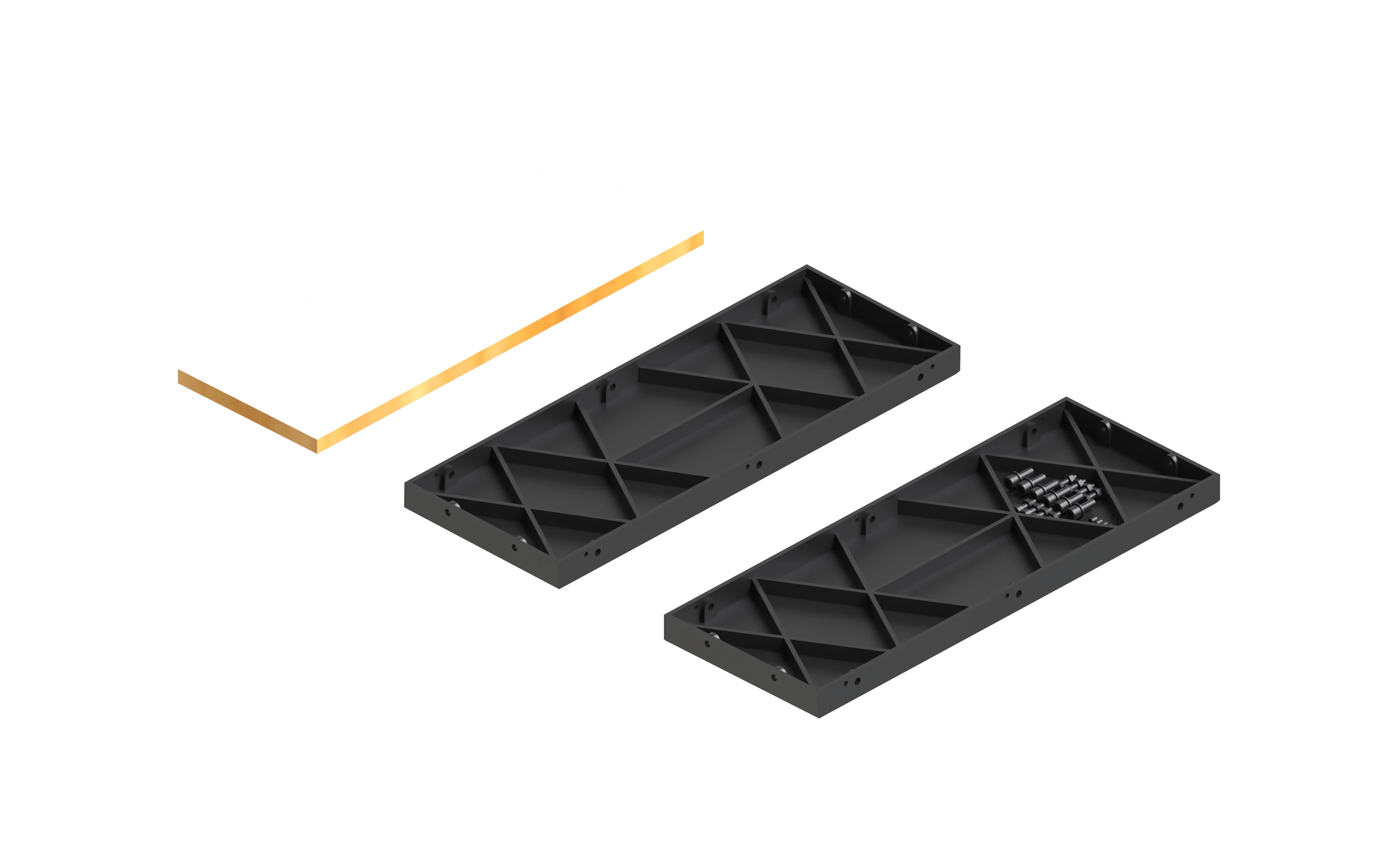

CAST IRON EXTENSION WING FOR BBTS10

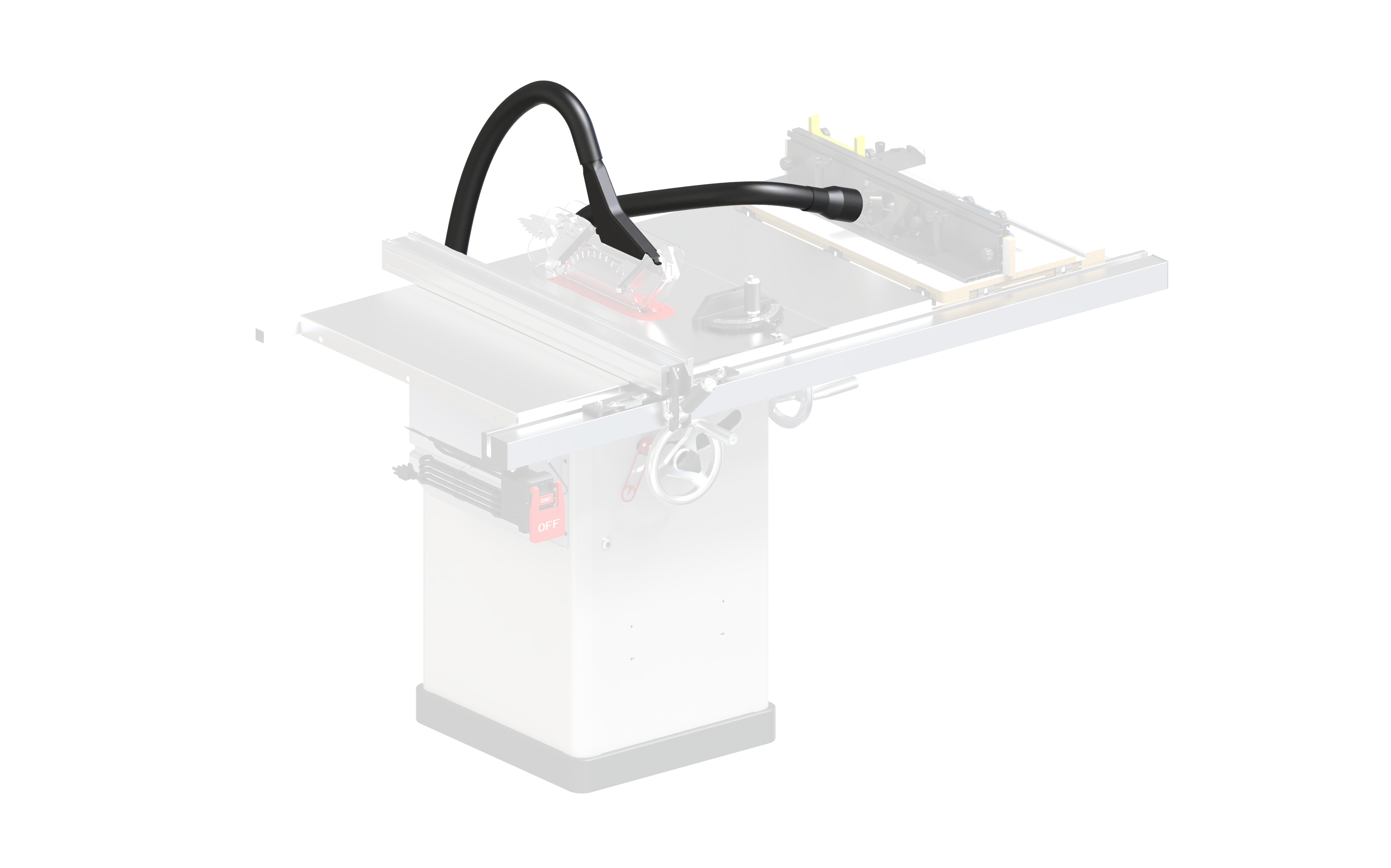

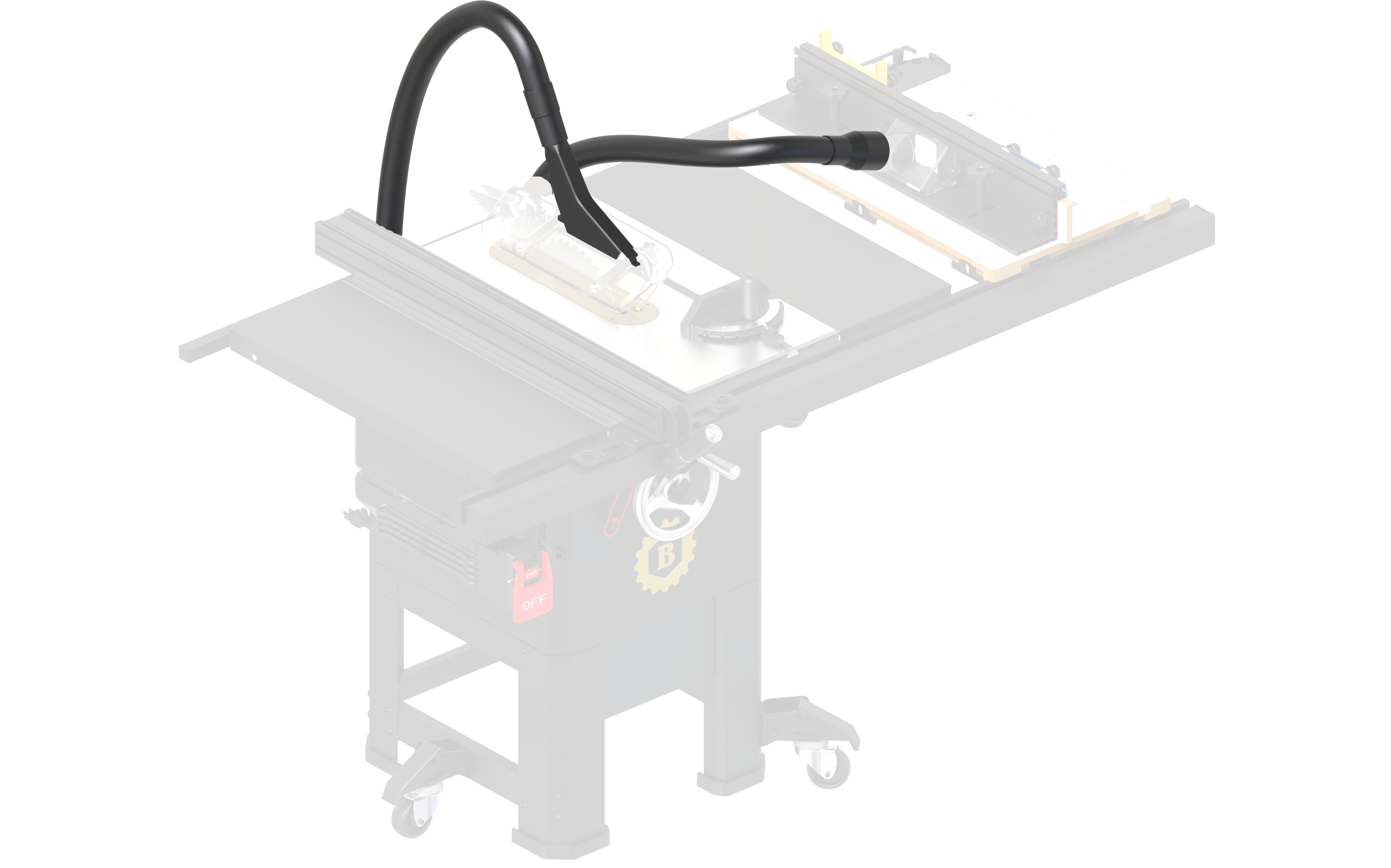

DUST COLLECTION SYSTEM FOR BBTS10 & CX212

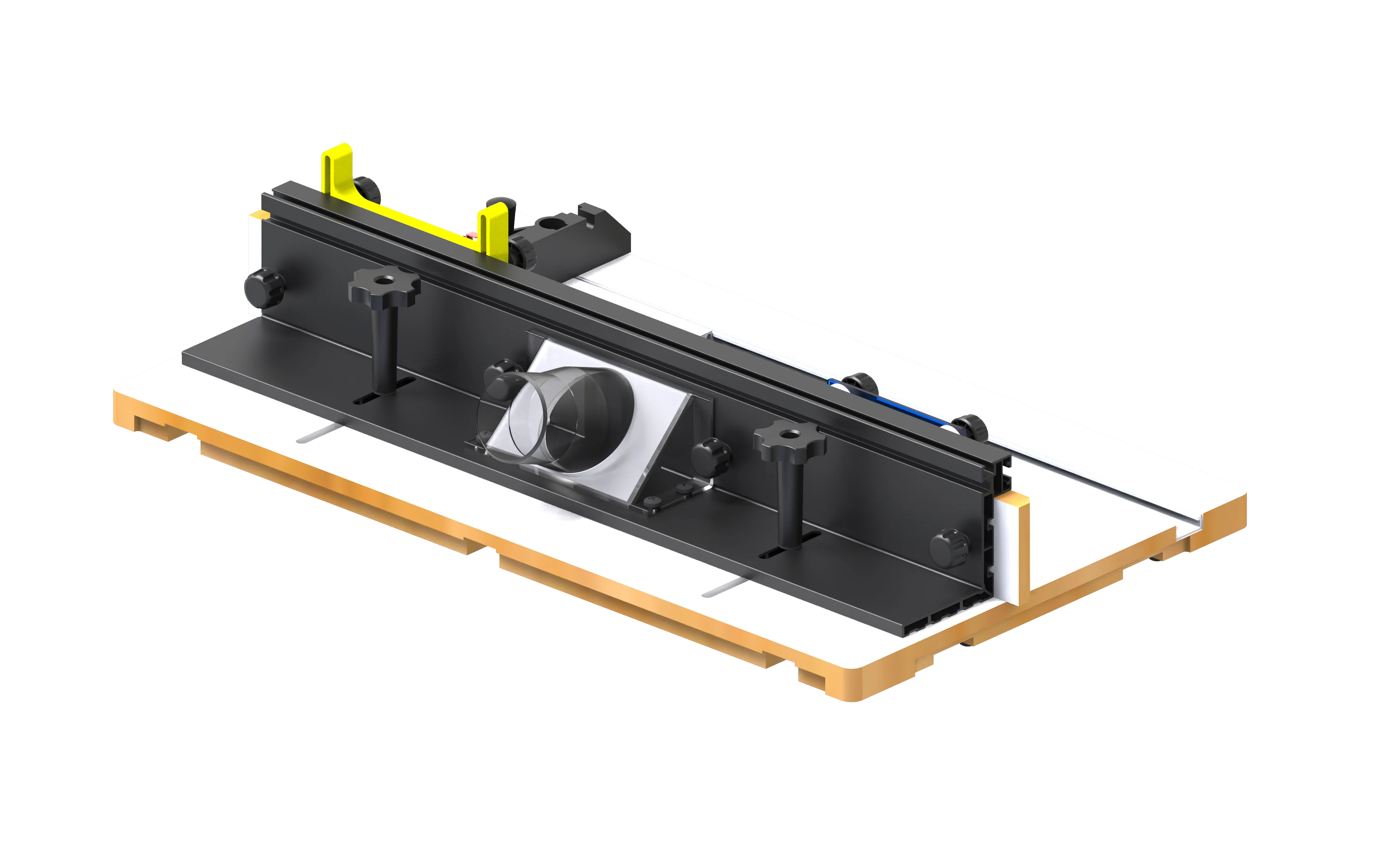

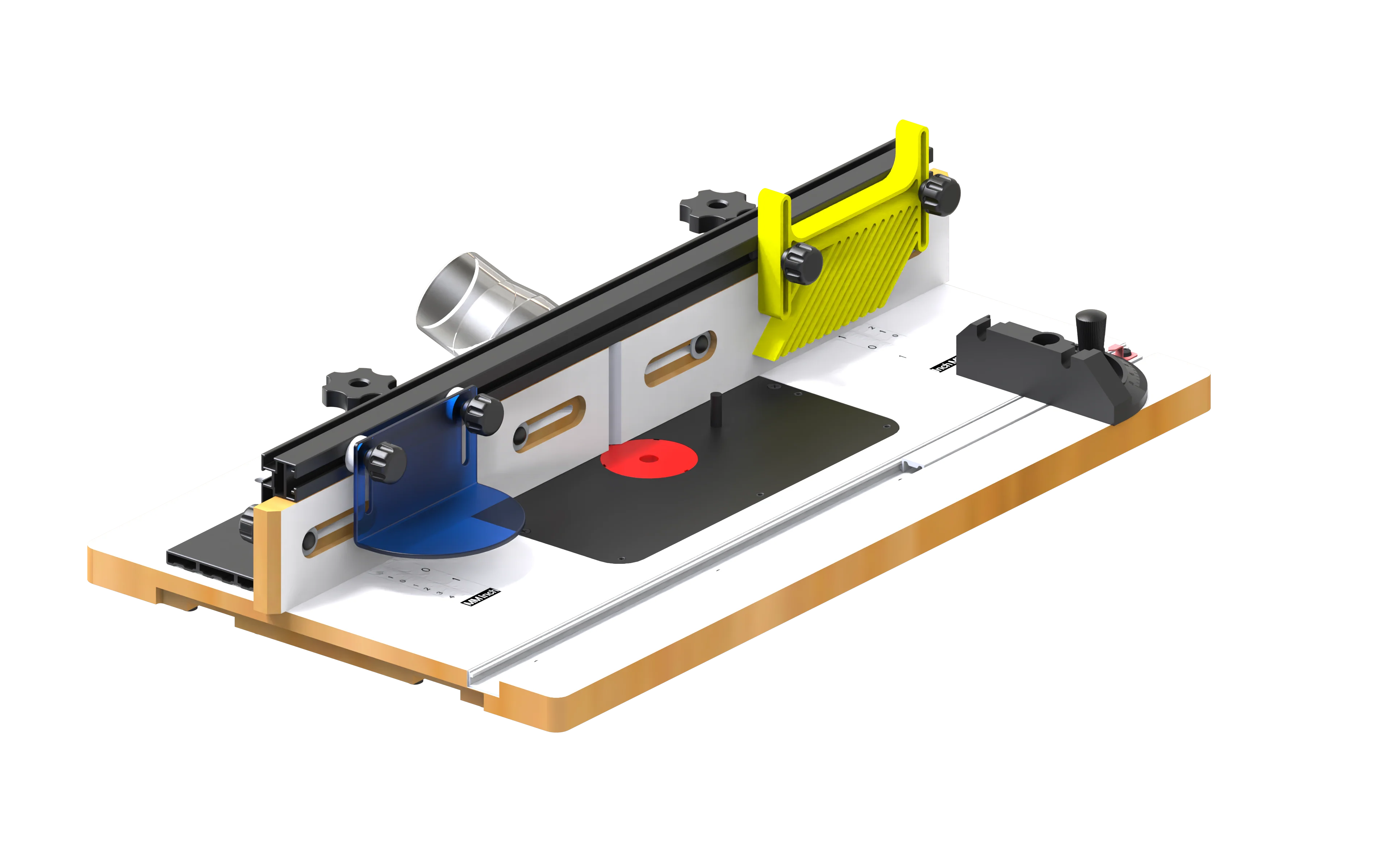

ROUTER TABLE FOR TABLE SAWS BBTS10 & CX2

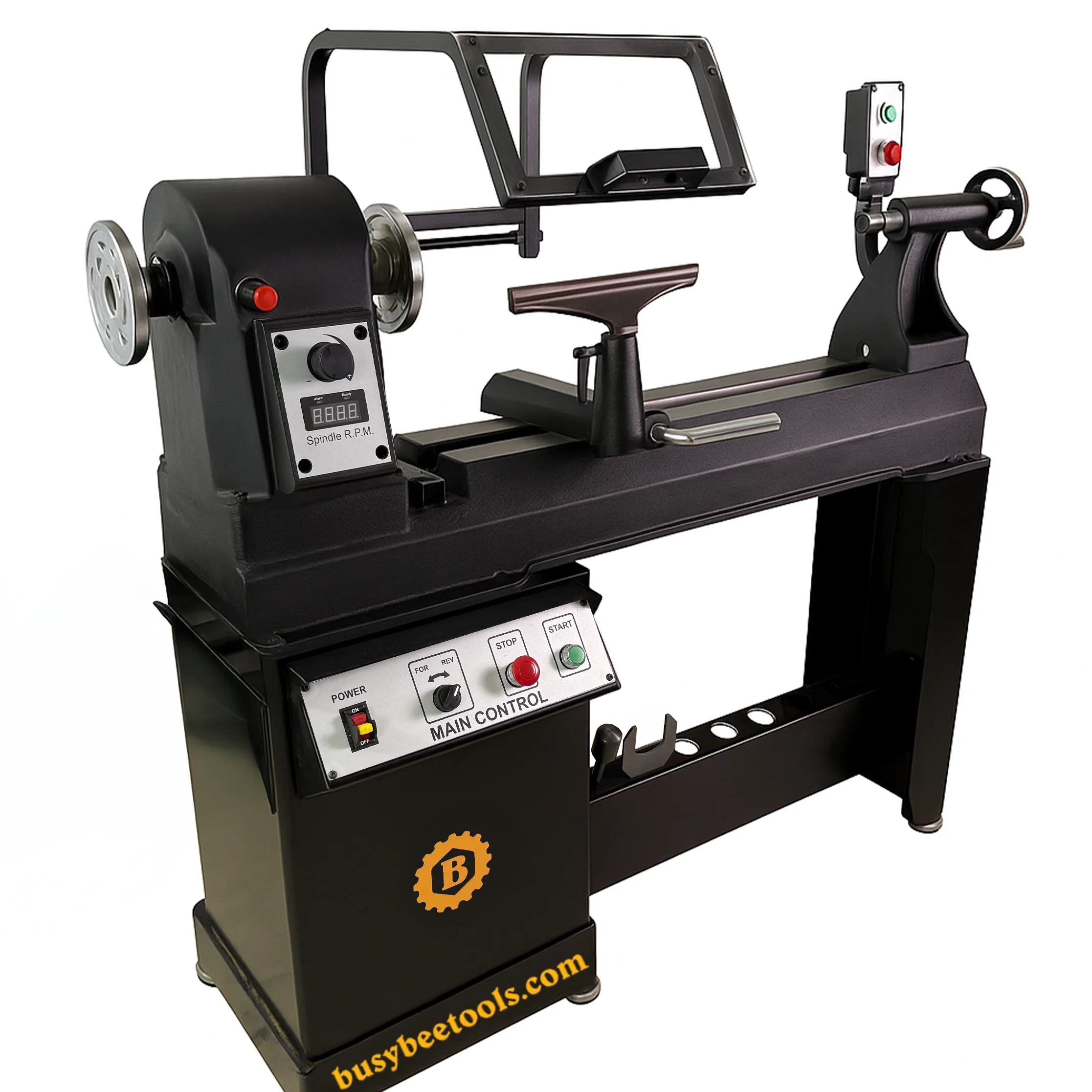

PROTECTIVE GUARD ASSEMBLY FOR BBWL1840

PROFESSIONAL WOOD LATHE 18" X 40"

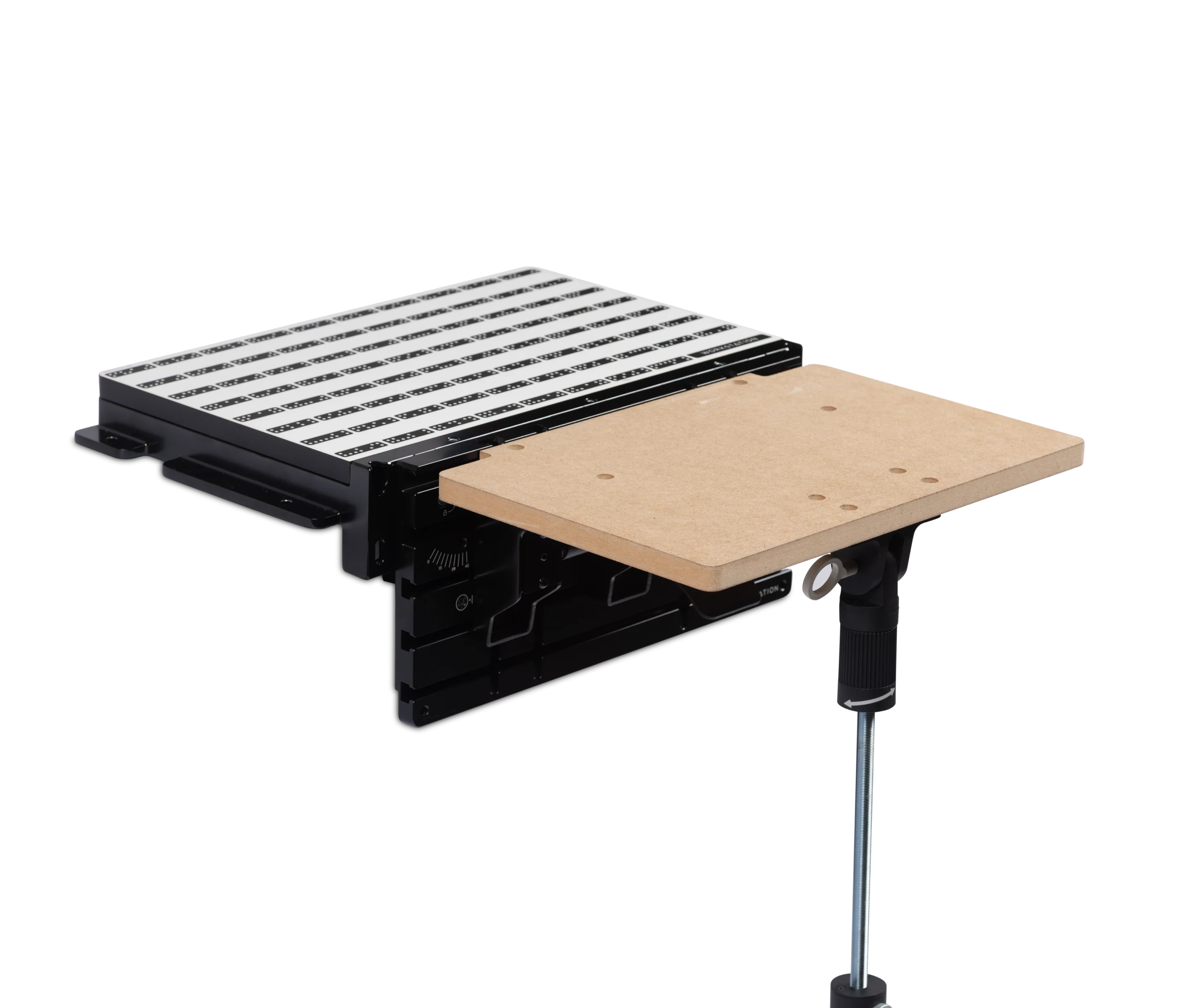

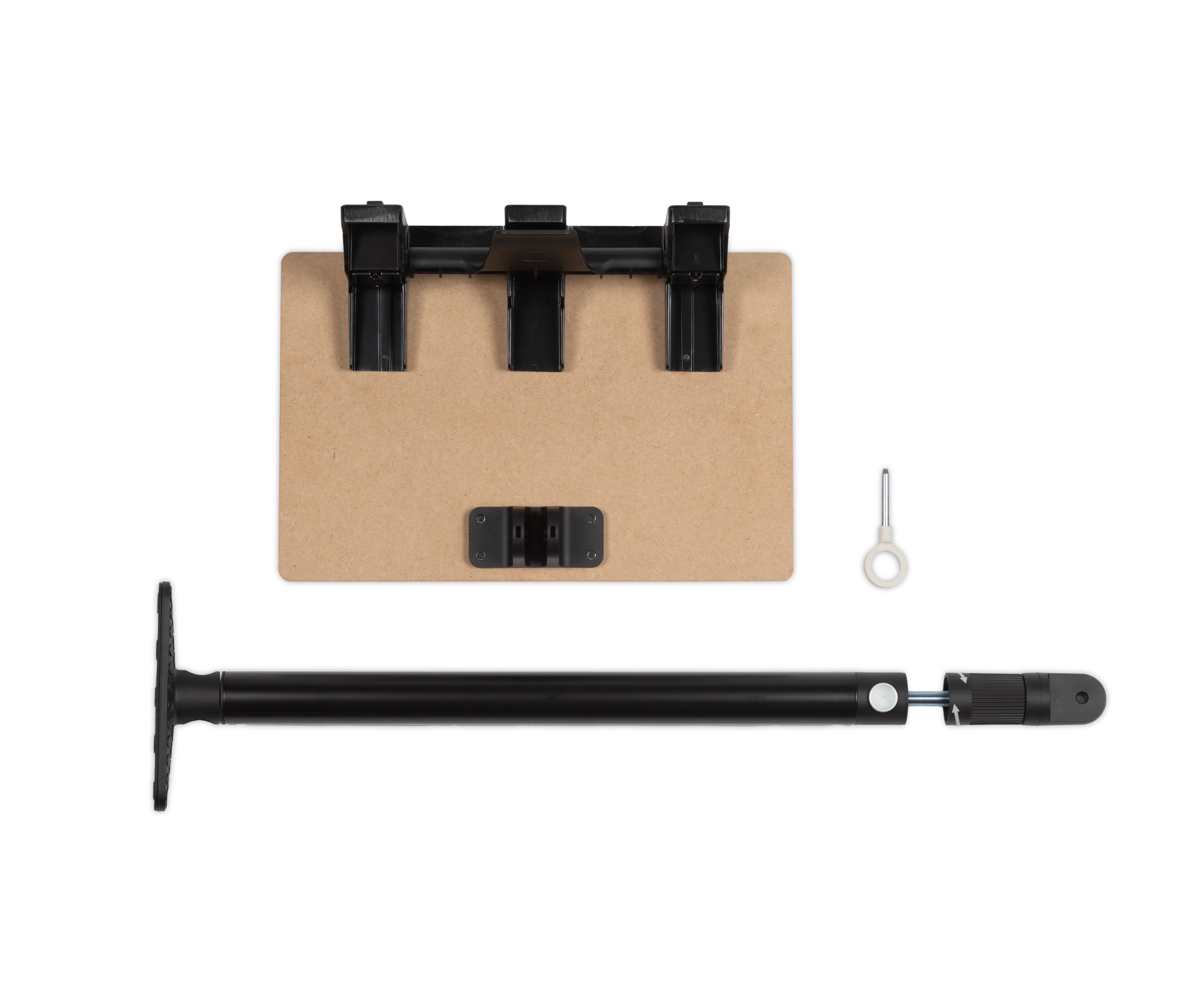

SHAPER SHELF UPGRADE KIT

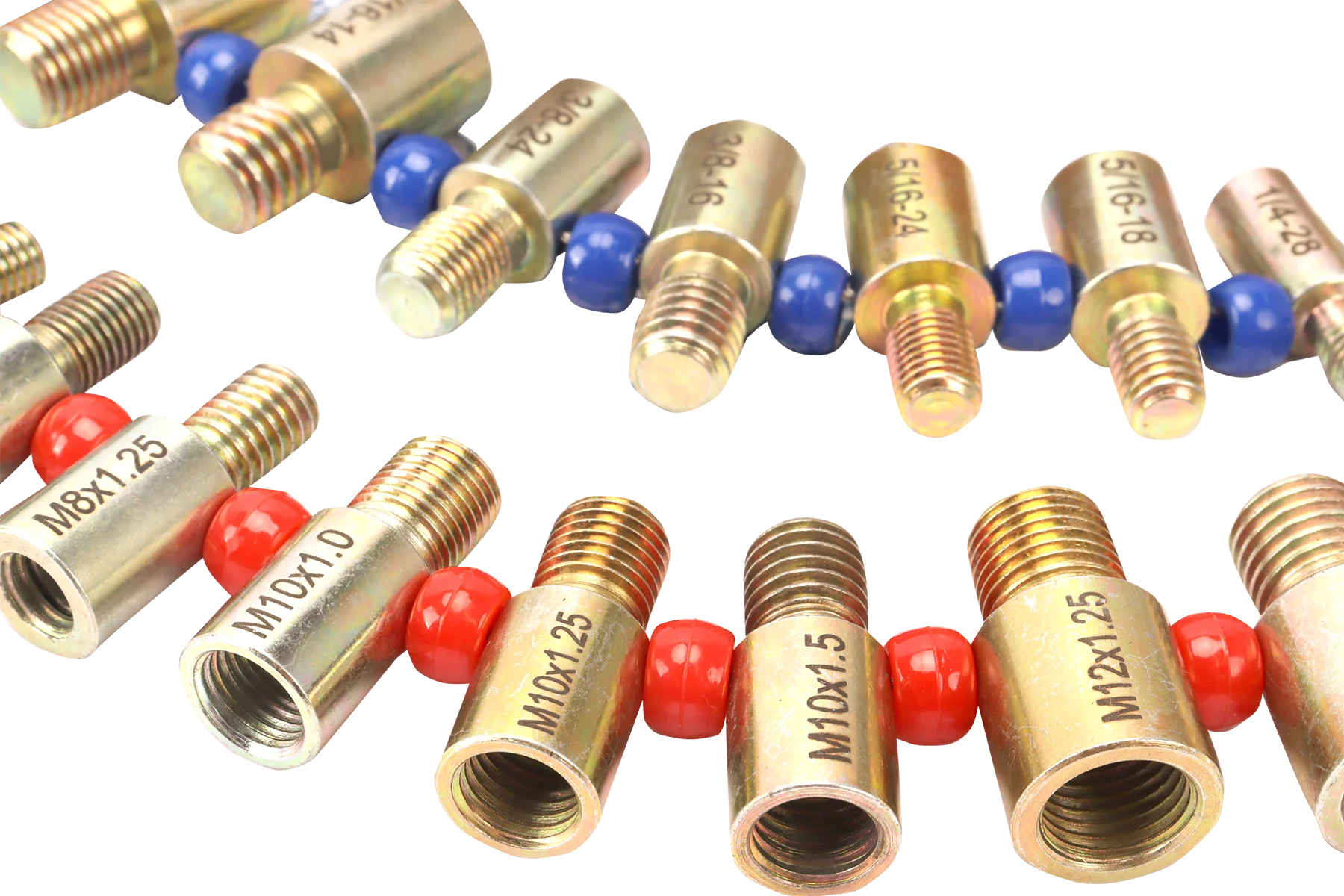

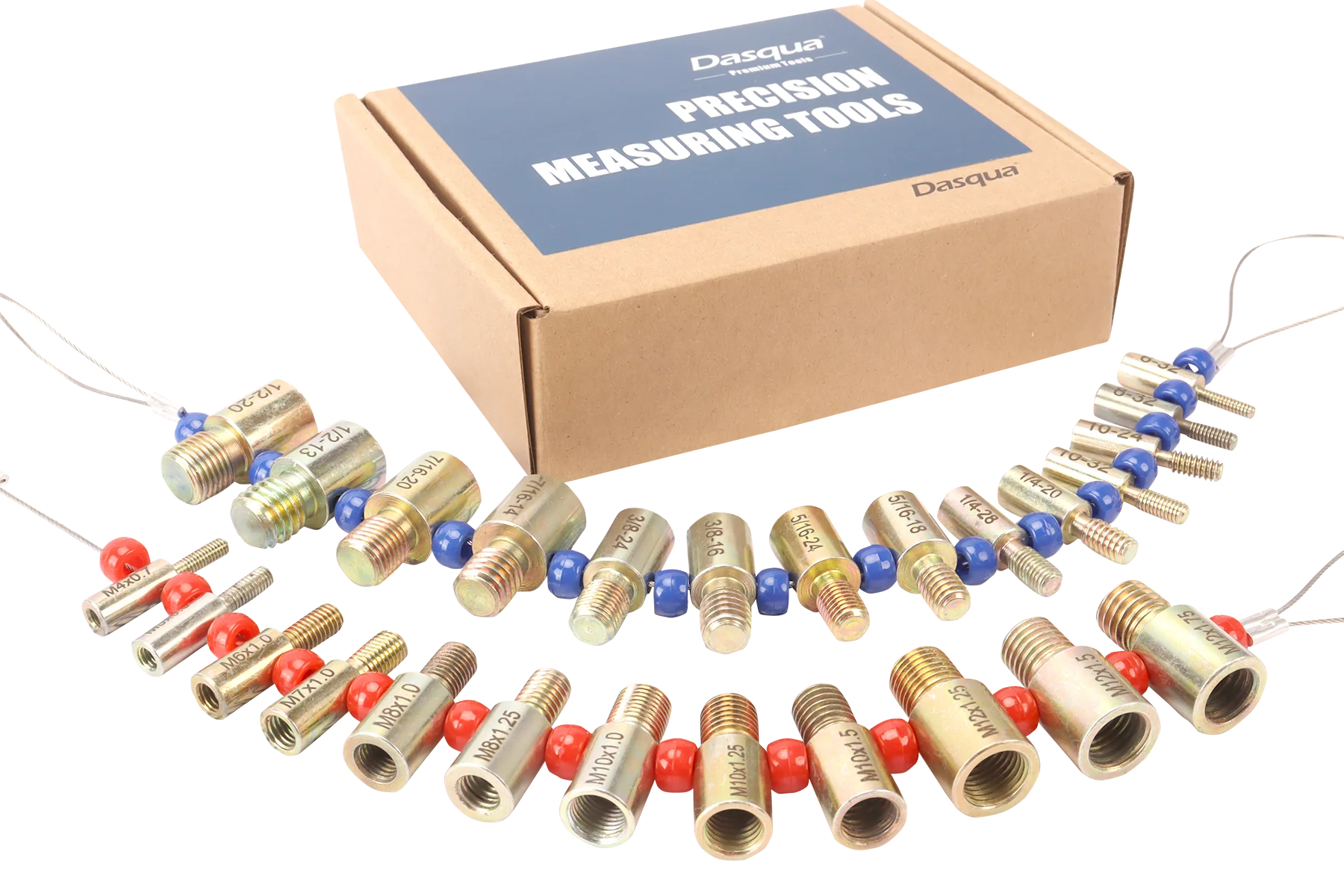

THREAD IDENTIFIER METRIC & IMPERIAL

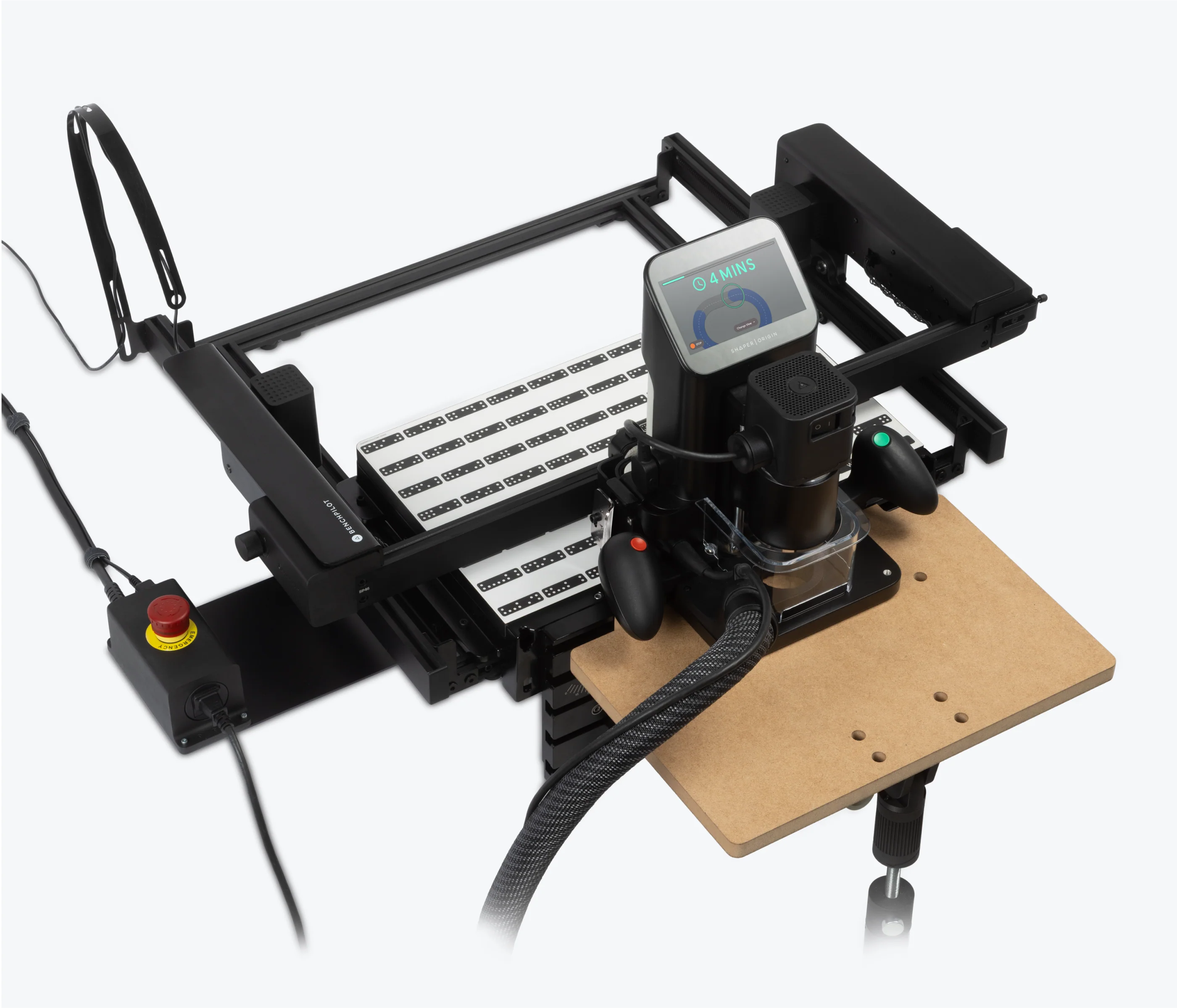

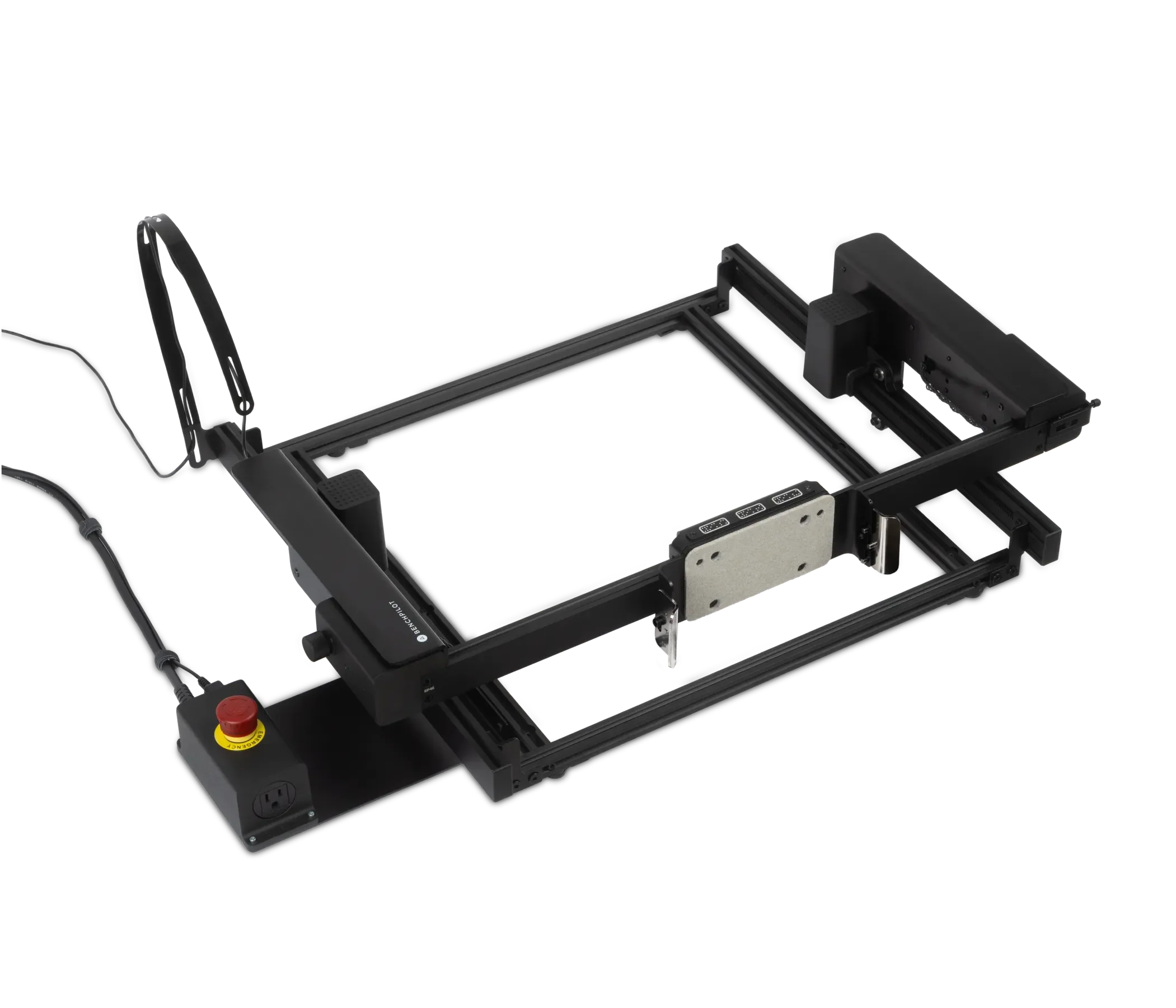

SHAPER BENCHPILOT

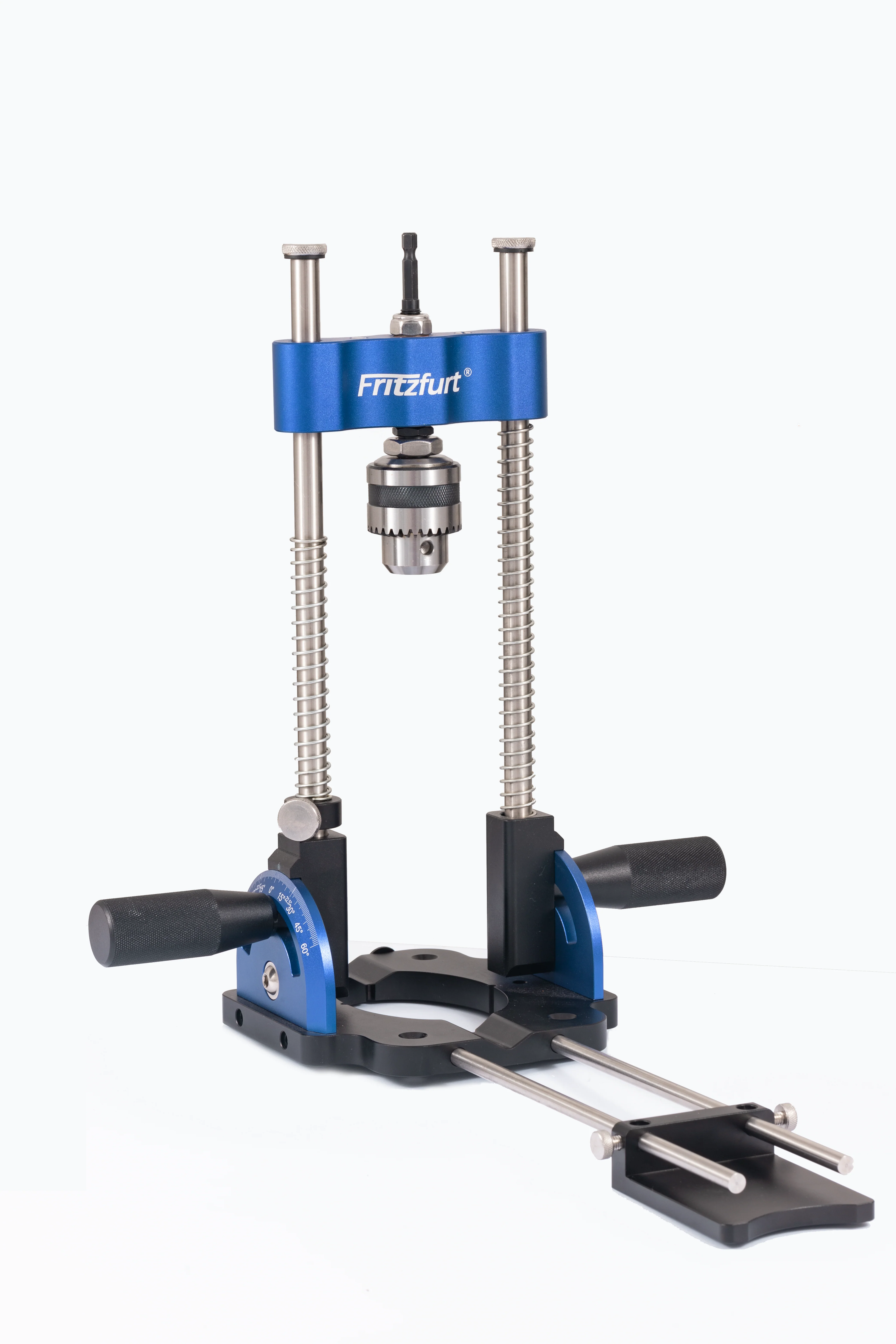

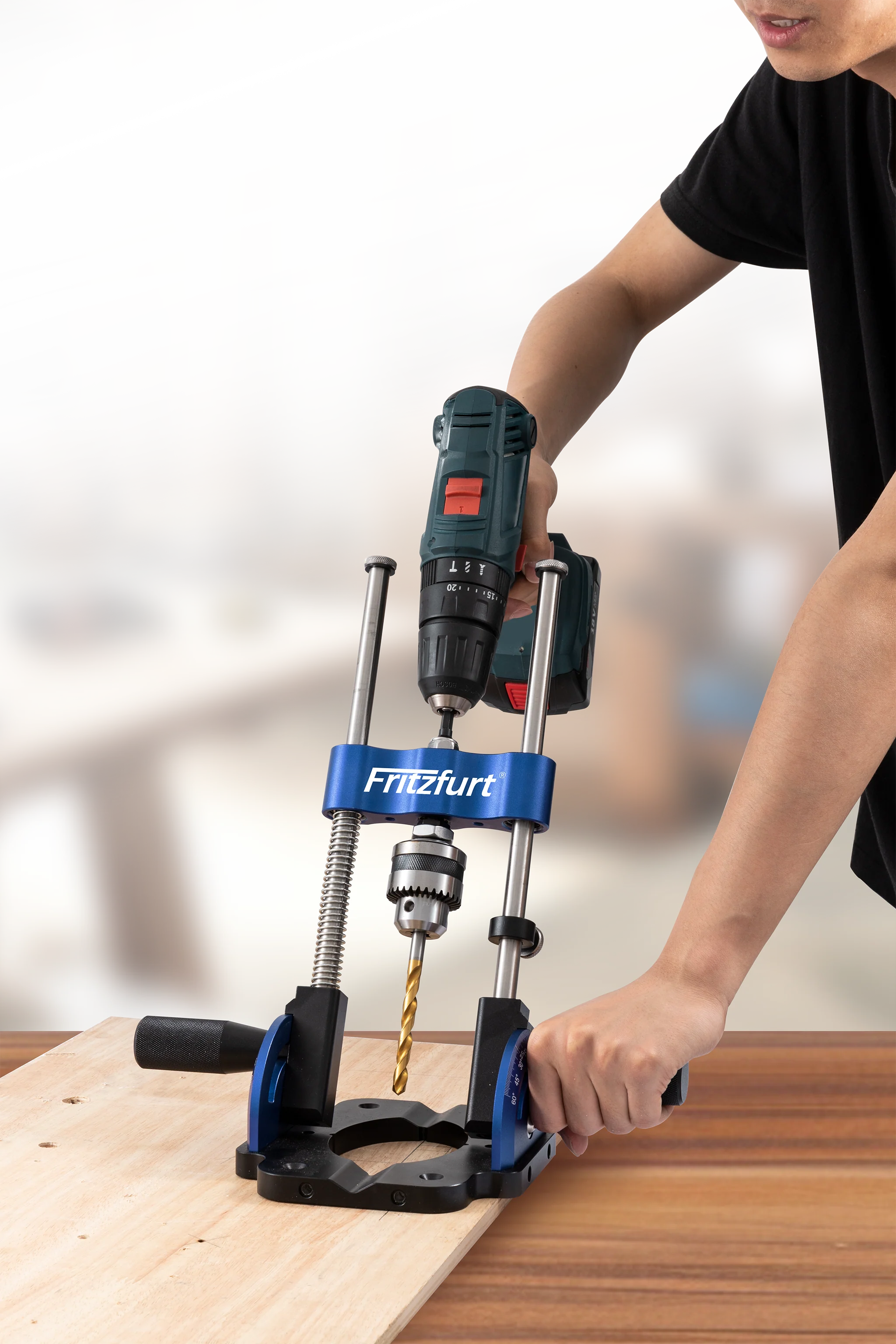

UNIVERSAL DRILL GUIDE

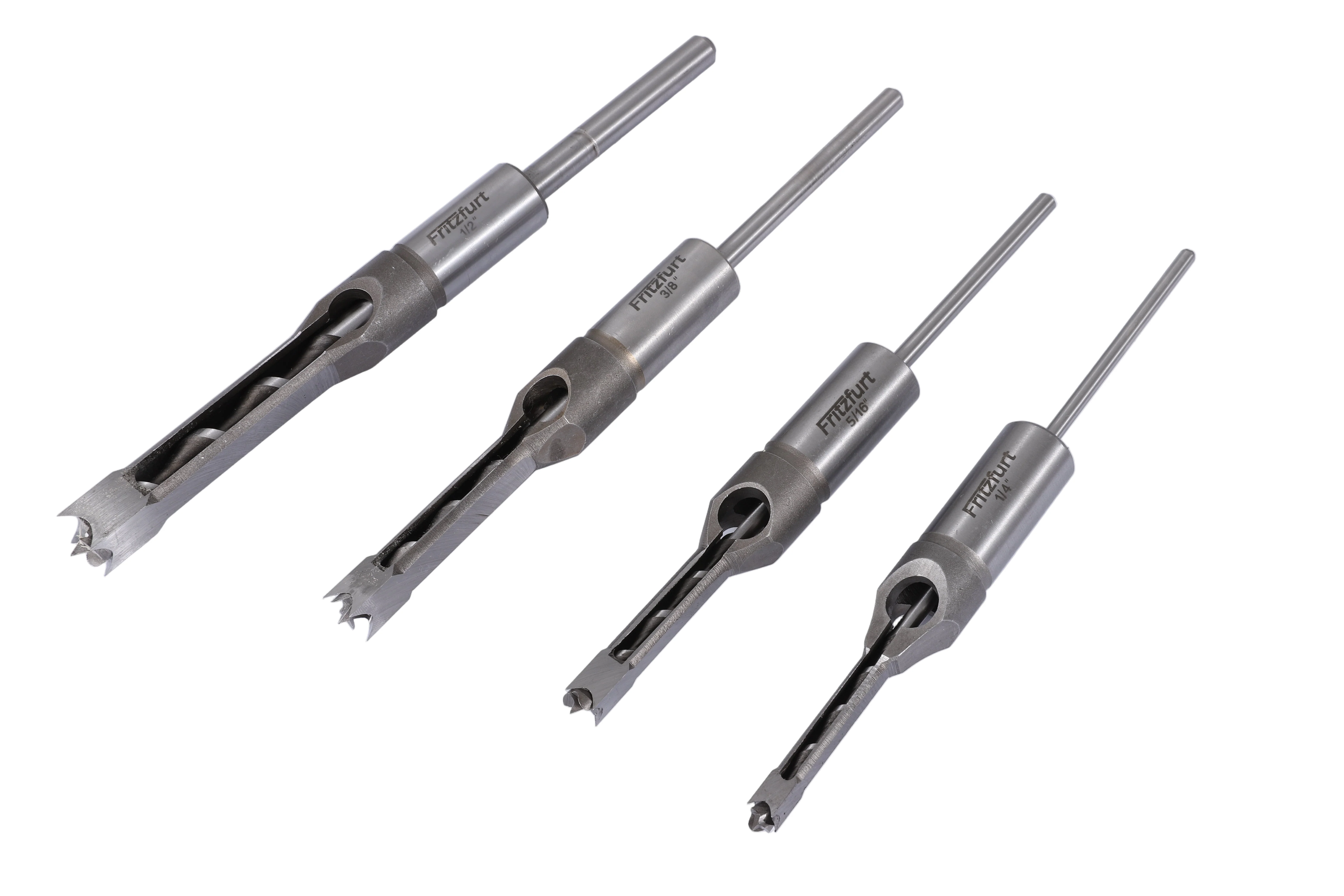

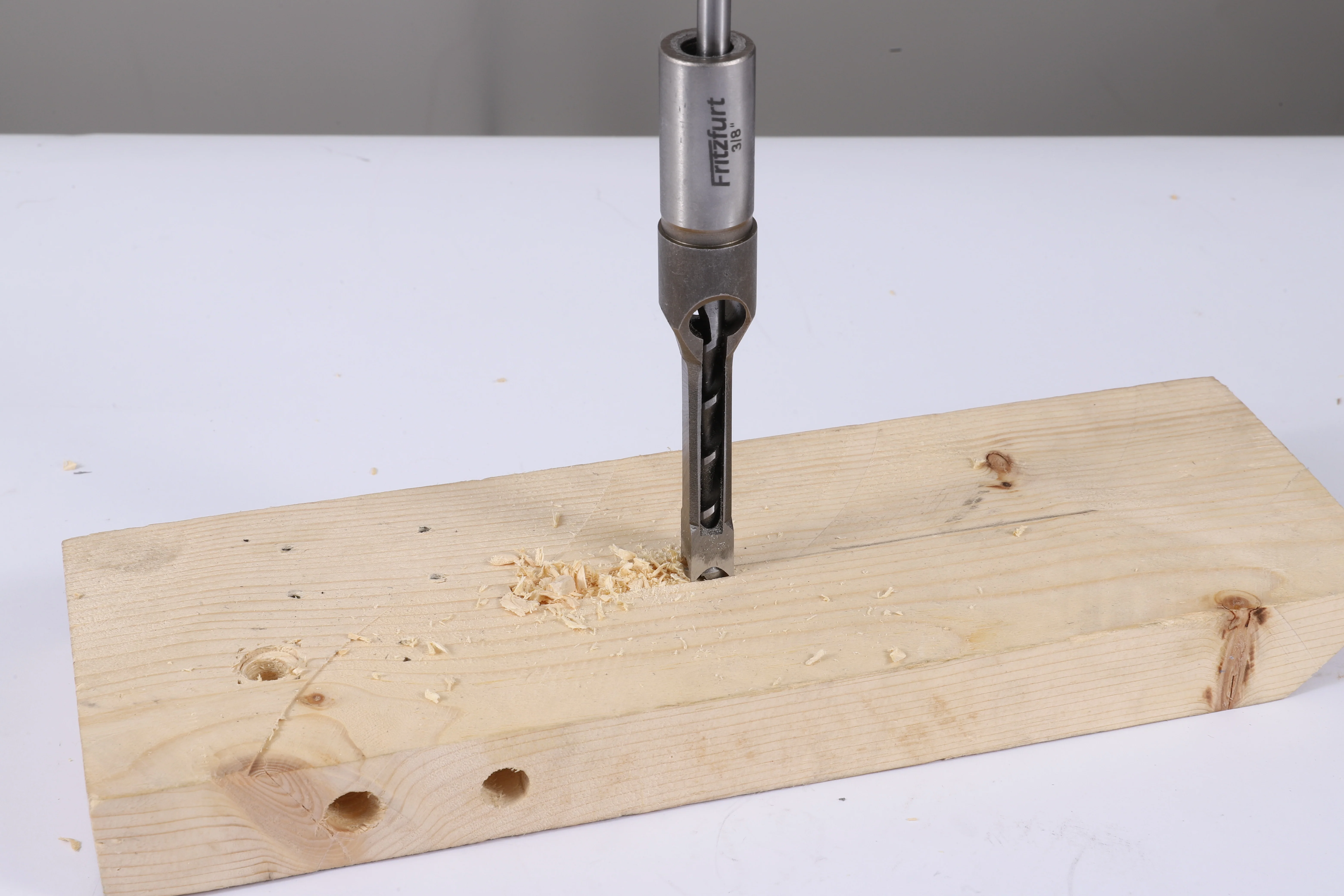

4PCS MORTISING CHISEL SET

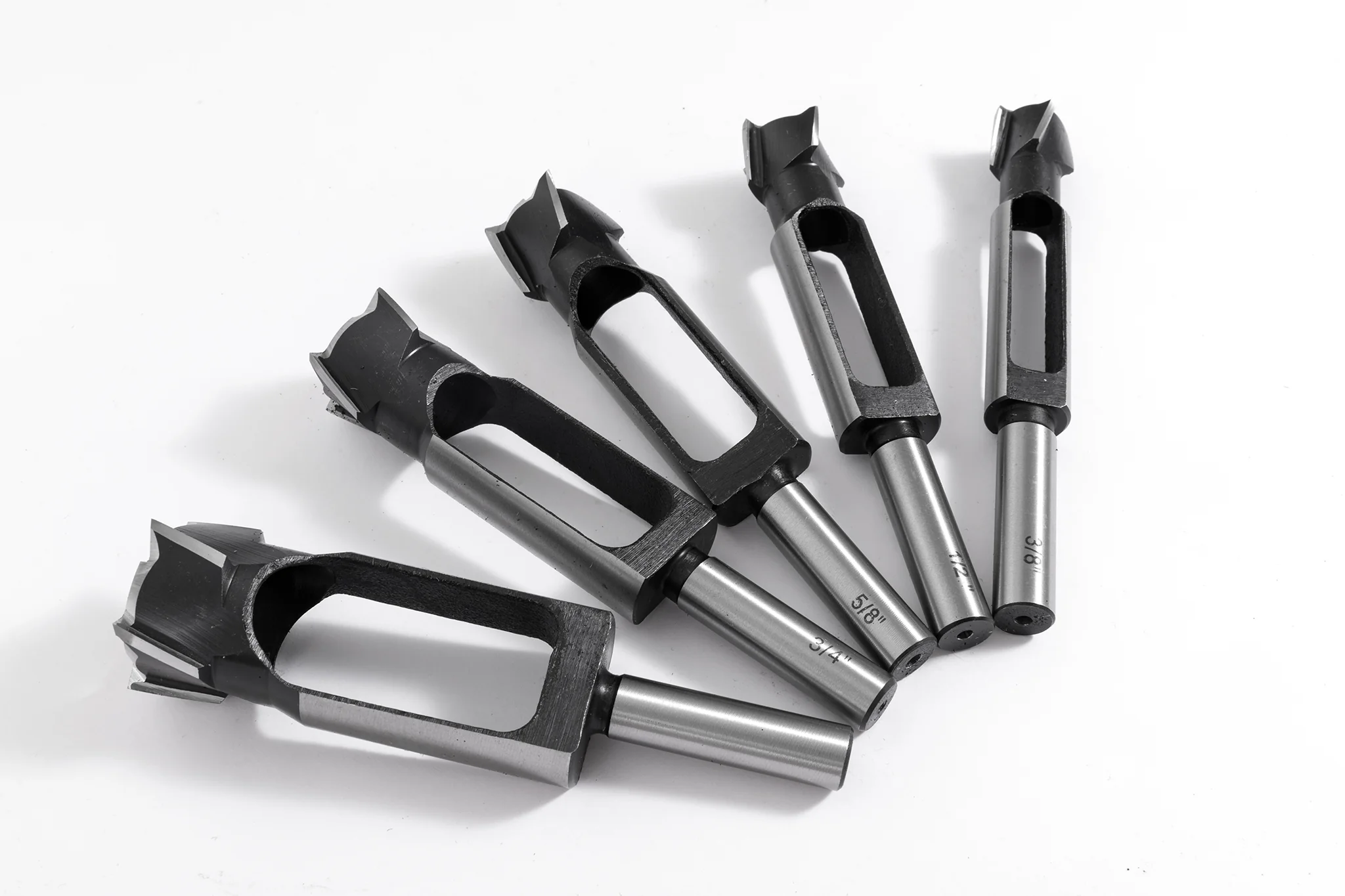

5PCS PLUG & TENON CUTTER SET
